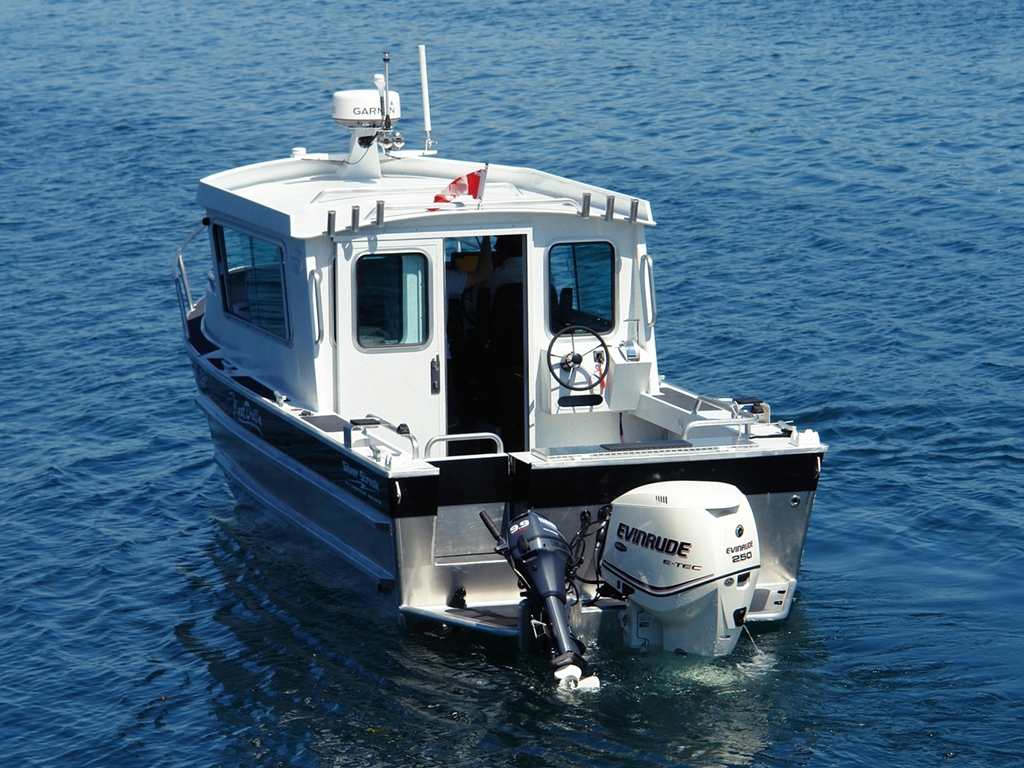

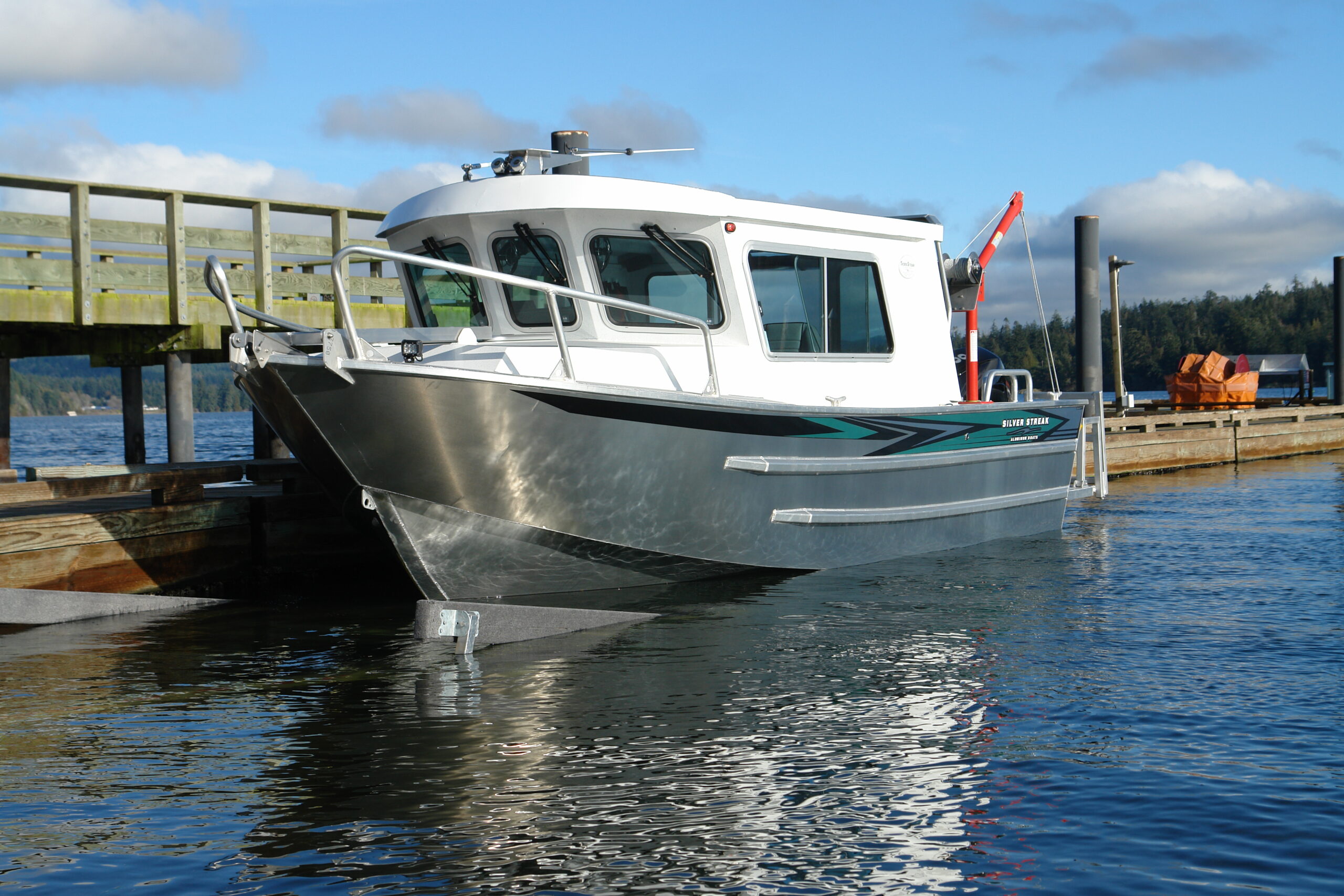

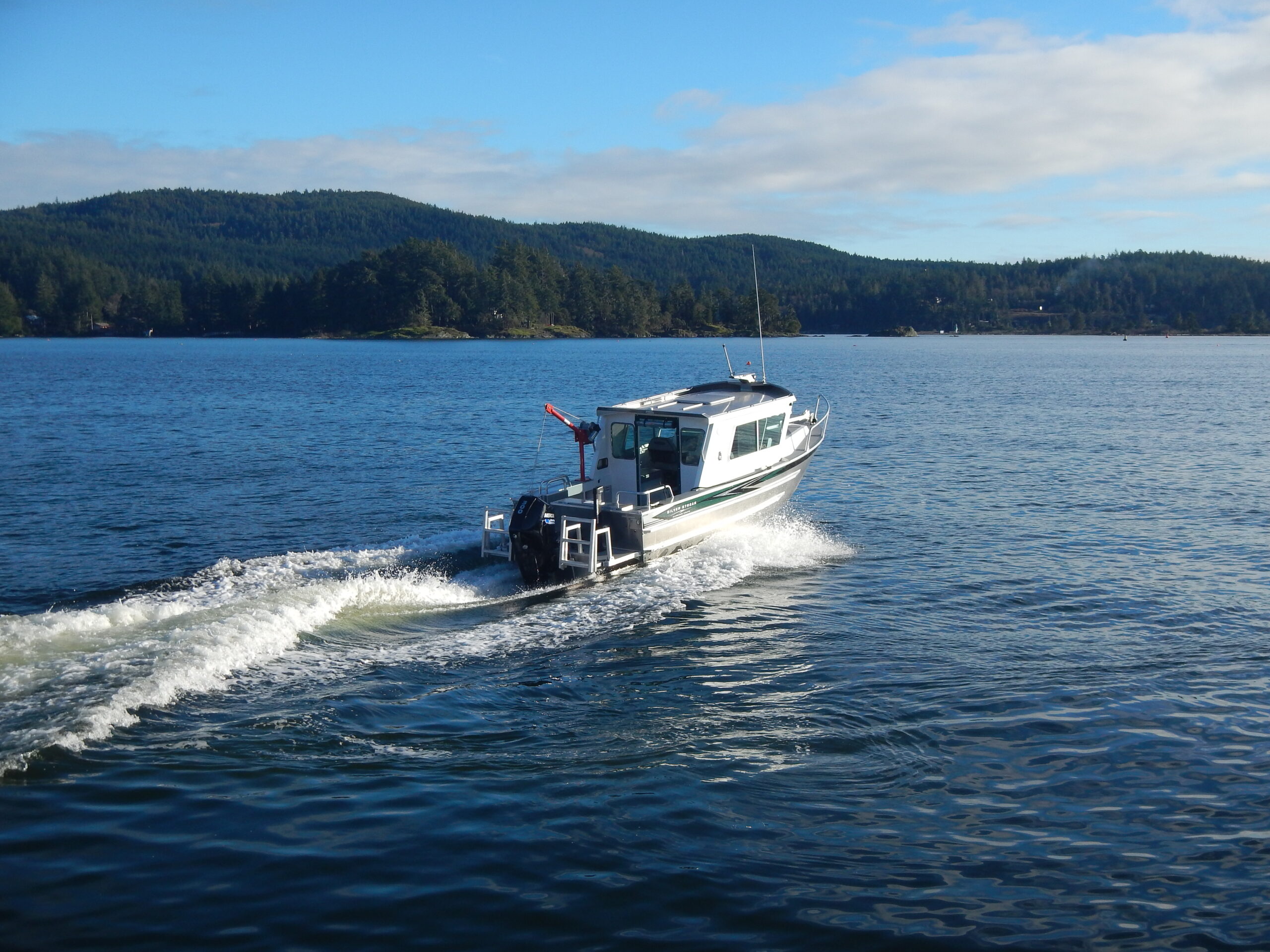

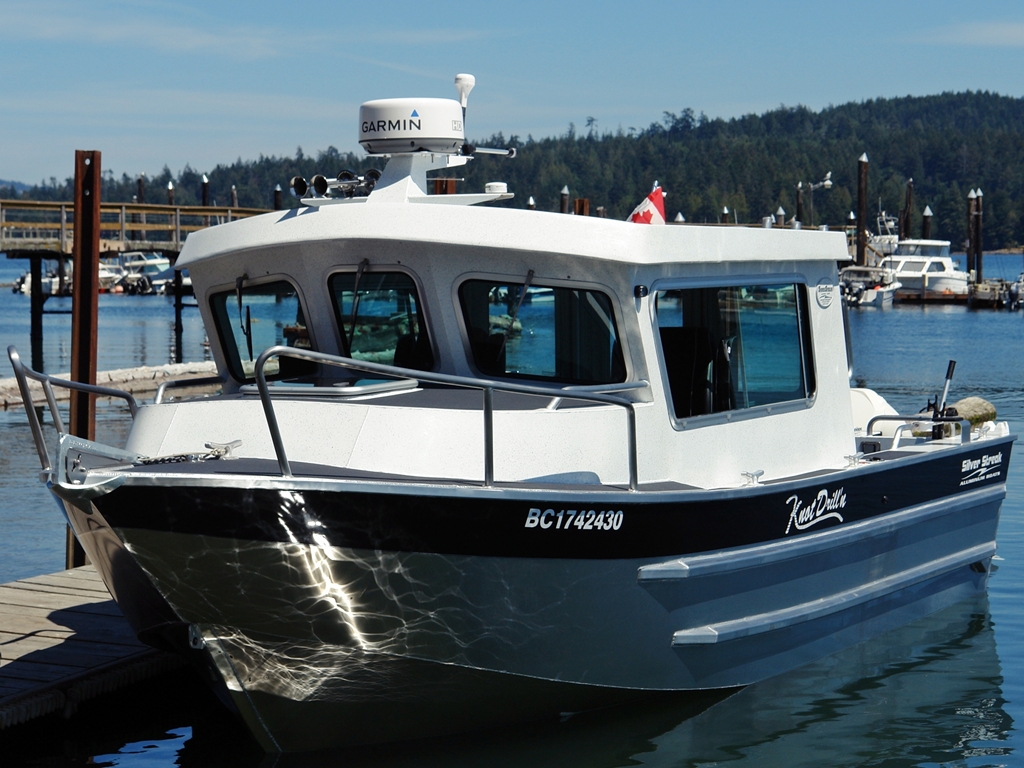

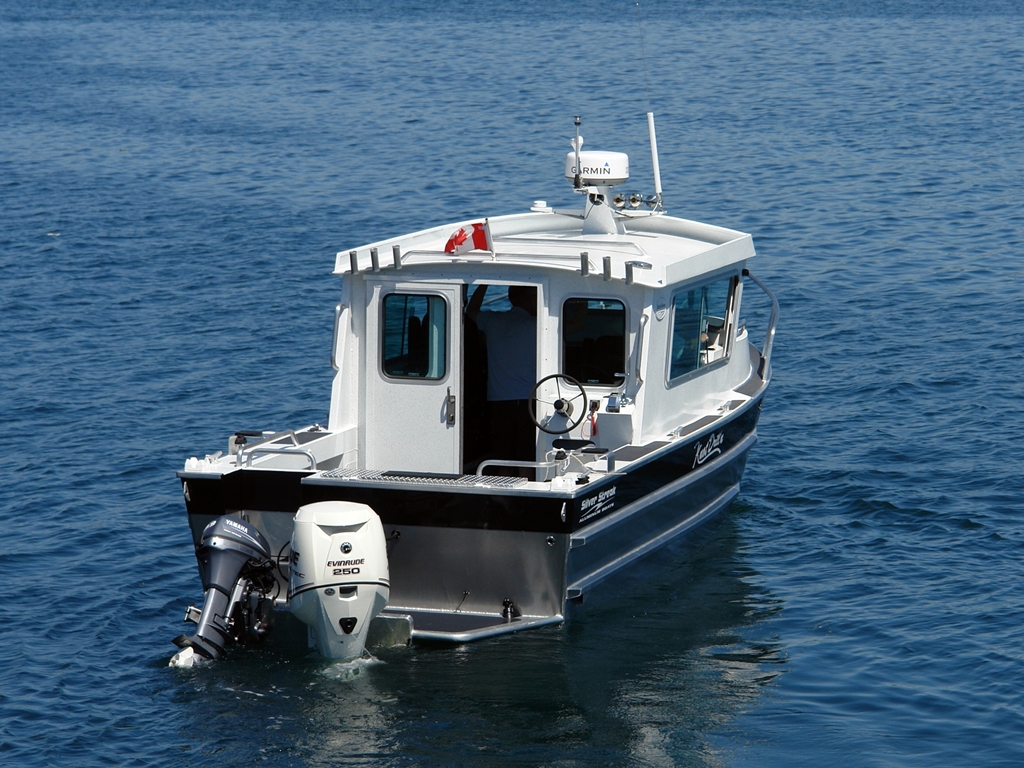

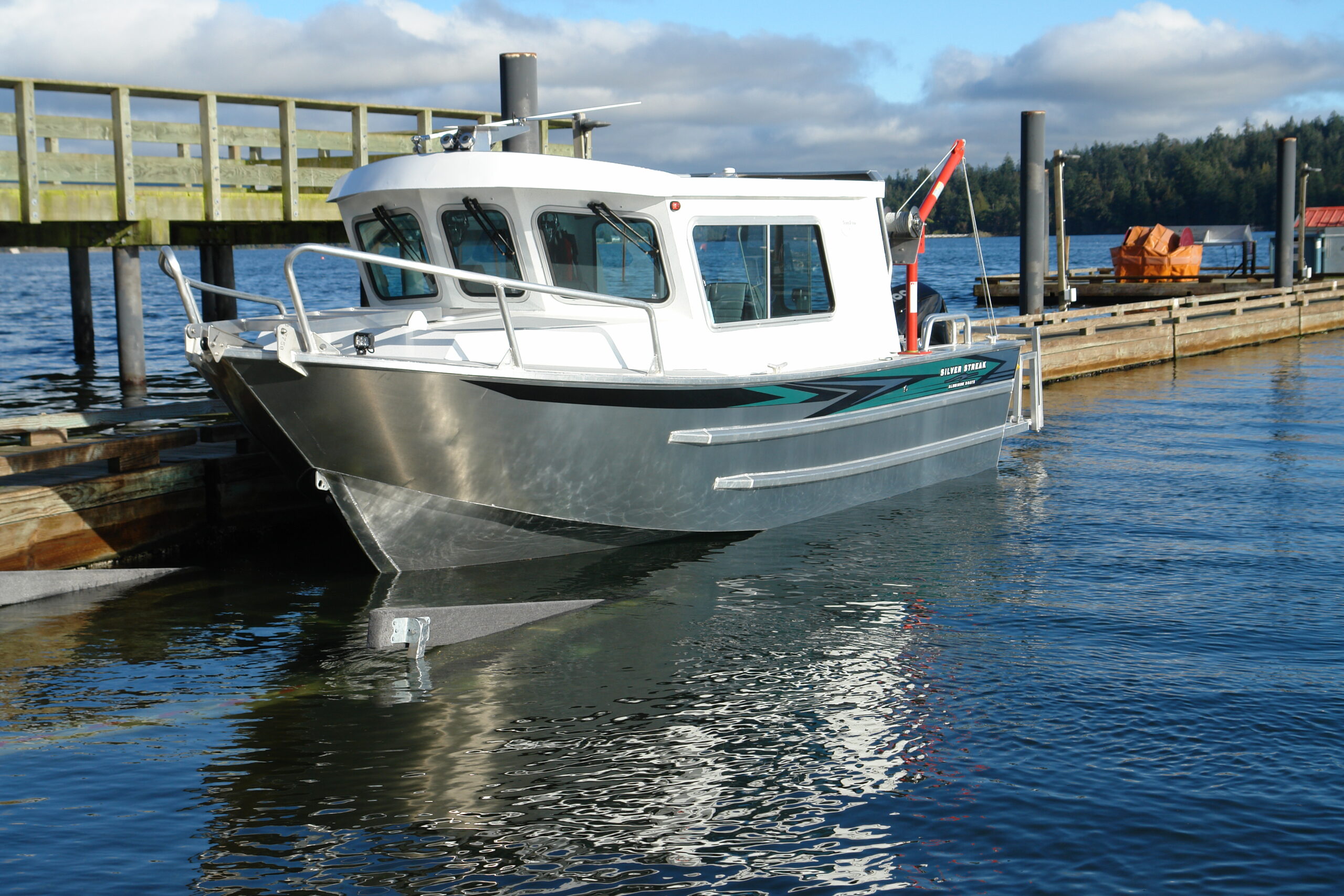

24′ Cuddy Cabin – Swiftsure All Welded Aluminum Boat

About This Boat

The Swiftsure design is the first of the 3D modeled and CNC cut vessels that was implemented by Silver Streak Boats. Designed with a deep-vee, and insulated for sound dampening and warmth, this boat was built for comfort while underway and for over-night stays. There are many leisure options available for this boat including, dinettes, heads and galleys. Keep this model non-complex and generate a quality fishing charter or transport vessel.

This Boat Is Ideal For ...

Cod

Crabbing

Cruising

Exploring

Family Time

Fishing

Fresh Water

Halibut

Lake

Multipurpose

Ocean

Prawning

Salmon

Tuna

Got Questions? Get Answers

Standard Features List

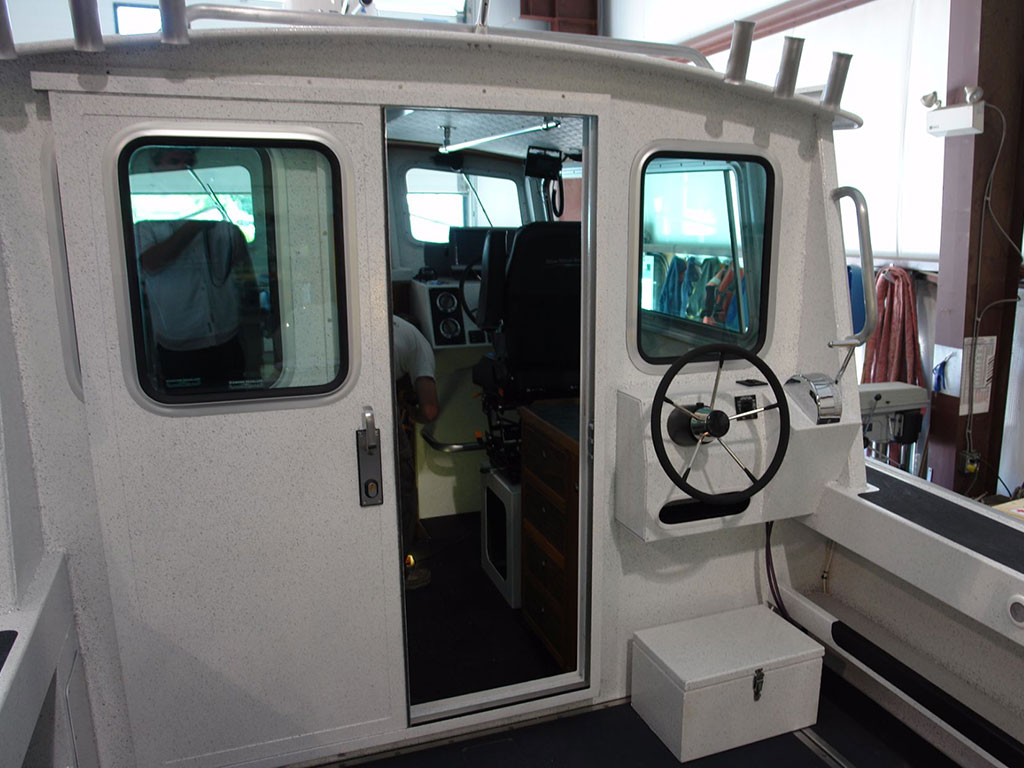

1 x Fully welded stand-up cabin including solid bulkhead with (1) hinged door, 3-piece aluminum-framed forward leaning windshield, (2) sliding side windows with flyscreens, (3) fixed rubber-framed bulkhead windows & (2) cuddy windows
1 x 12 V power socket with USB port & LED light
1 x 6-way fused switch panel on dashboard
5 x 9″ welded aluminum cleats
1 x Aluminum deck in main cabin with storage hatch(es)
1 x Battery – dual SRM 27 batteries including wiring, breaker, 4-way selector switch & boxes
1 x Bilge pump – 1600 GPH pump – auto on/off
1 x Bow railing – 18″ with opening at front
1 x Brackets for transducer and anode (1), plus weld-on teardrop anodes (2) under hull
1 x Cabin light (interior)
1 x Chain locker – self draining with heavy duty stainless steel anchor roller. Insulated for noise reduction
1 x Chines & gunnels fully welded
1 x Closing storage in transom (locking battery compartment)
2 x Cup holders
3 x Drain plugs
1 x Electric trim tab set (18″W x 12″L)
3 x Electric wipers- heavy-duty wiper with self-park & switch
1 x Electrical panel canvas cover (in forward cuddy compartment)
1 x Emergency escape hatch with flyscreen in forward compartment
1 x External motor bracket for twin 30″ engines with auxiliary mount and full-width transom
1 x Fish box in rear gunnel with cutting board
1 x Flotation – closed cell polyurethane spray foam under decks & gunnels
2 x Footrests on forward bulkhead (fixed/welded)

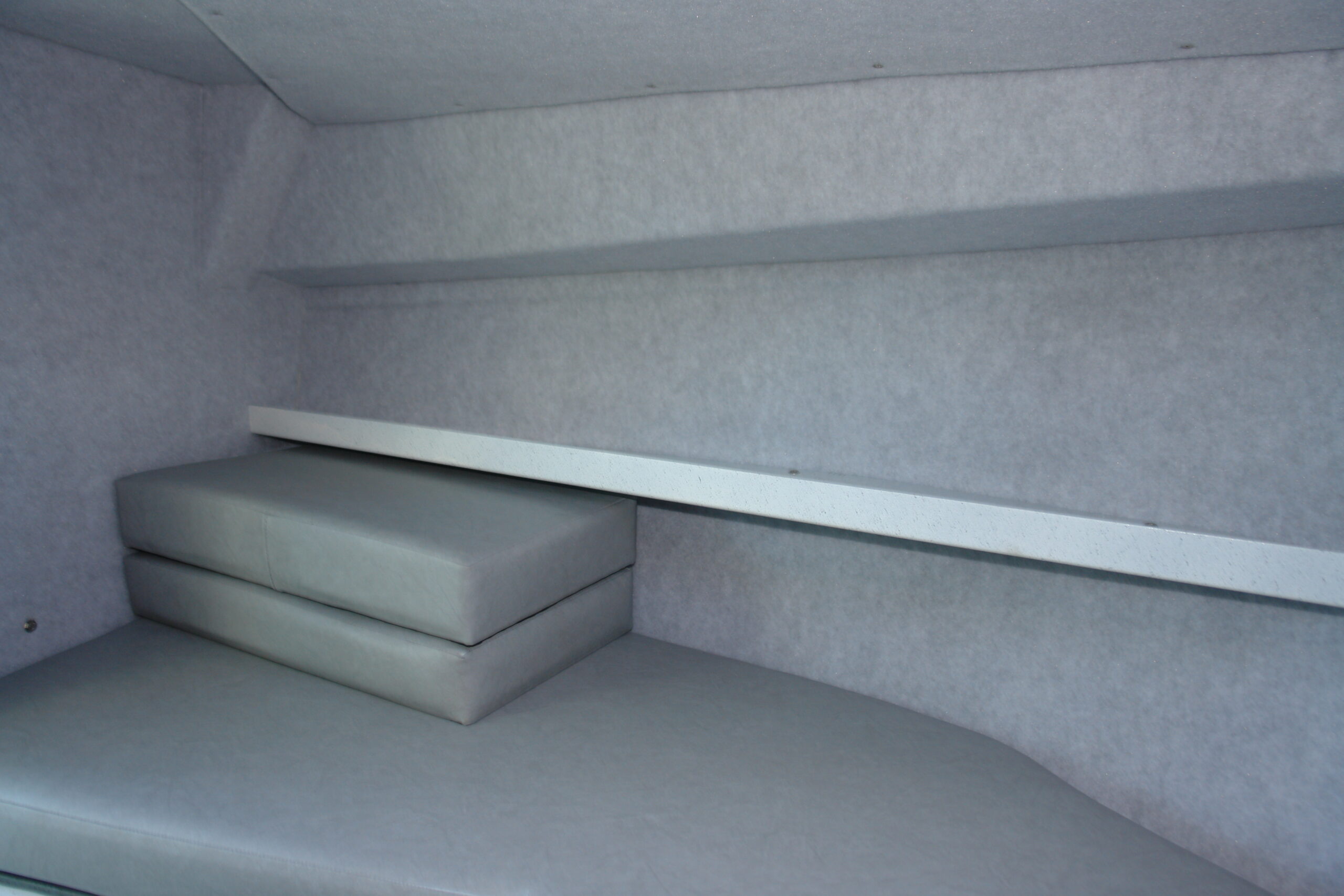

1 x Fully insulated, framed and panelled vee berth bunk, with 3″ vinyl upholstered cushions
1 x Fuel tank (85 Imp Gal/102 US Gal) w/ fuel gauge – built in under deck

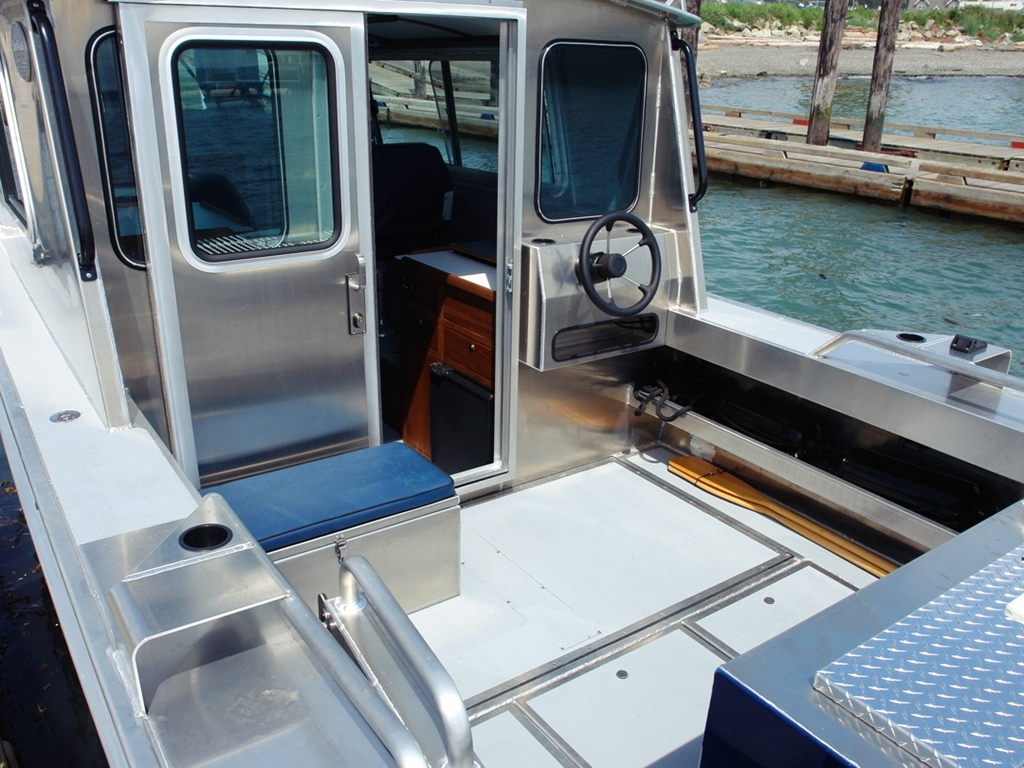

1 x Fully welded self-bailing aluminum cockpit deck with inspection hatches for fuel connections and wire ways
1 x Glove box
1 x Heavy duty custom hull graphic
1 x Horn – twin compact (stainless steel)
1 x Keel guard on hull bottom (beaching wear strip)
1 x Navigation lights (LED)
1 x Non-skid paint on bow and main deck
1 x Non-skid paint on gunnels

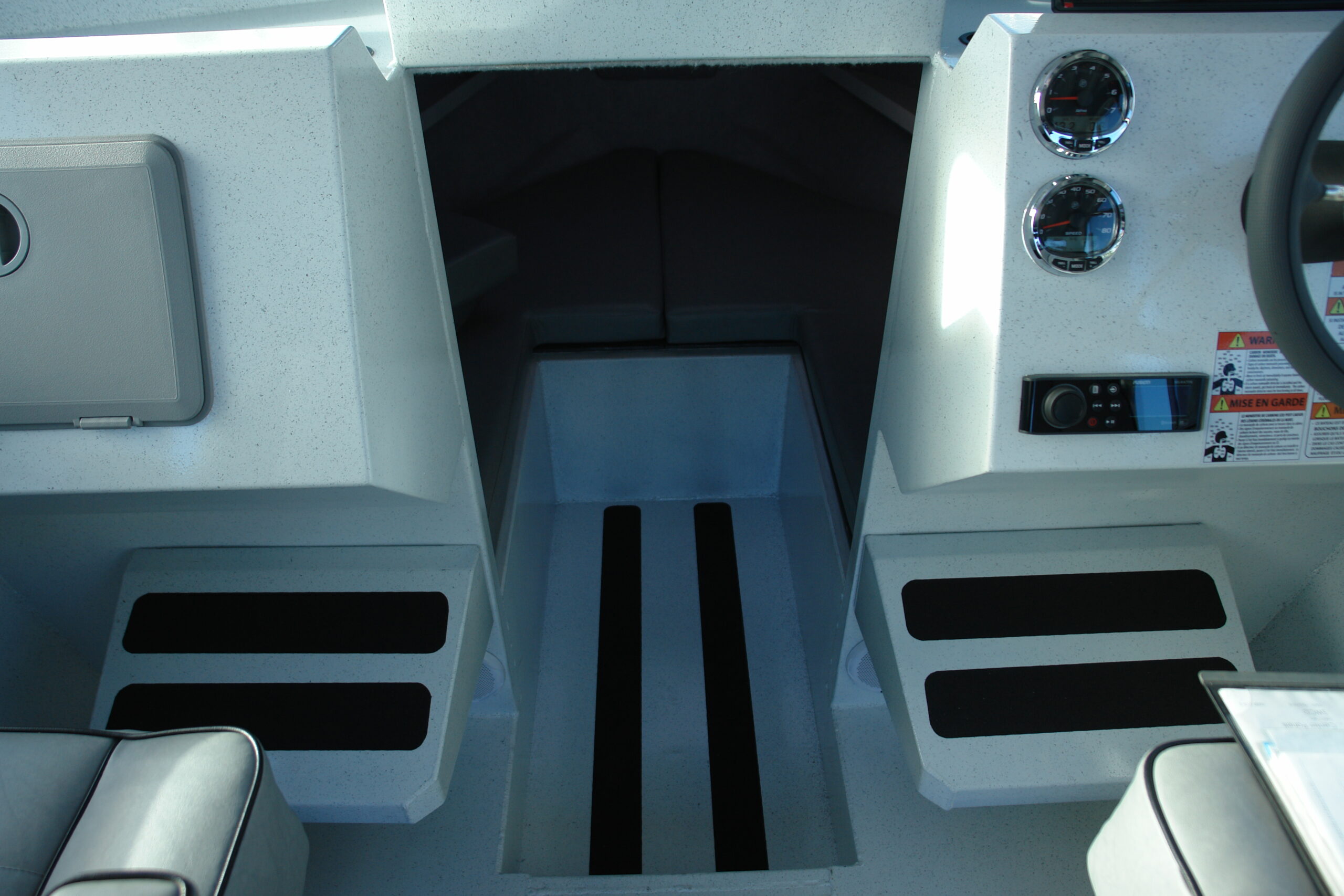

1 x Raised foredeck (bow) for increased head room in cuddy compartment
2 x Side stiffeners (per side)
1 x Side storage trays – in cabin & cockpit
1 x Steering for twin engine, single station – hydraulic
2 x Storage bench seats (vented) with vinyl upholstery & backrests
1 x Storage compartments in cuddy side panels
2 x Swivel Seats – Barry Marine vinyl upholstered (lg) on shock absorbing Back Saver pedestals
1 x Under deck large storage compartment with hinged door in cabin
1 x Under deck storage compartment in cockpit deck
3 x Welded bow & transom eyes with stainless steel inserts

24′ Cuddy Cabin – Swiftsure Standard Specification

Capacity (People): 6

Horsepower Minimum: 225 Twin

Cabin Size: 98" x 84" x 77"

Beam: 8'-6"

Freeboard: 40"

Dead Rise: 20°

Bottom Width: 8'-0"

Hull Weight: 3,200 lbs

Bottom Plate: 1/4" 5086

Side Plate: 3/16" 5086

Fuel Tank: 85 Imp GAL

Tow Weight: 7,400 lbs

Aft Deck Size: 62 3/16" x 77 3/4"

Make It Yours - Available Customization Options

Exterior
Interior
Nav & Electronics
Fishing
Power
Docking
Technical
Delivery

Cabin
Aluminum folding steps	(2) Folding steps to access cabin top
Cabin extension	1' to 3' cabin extensions with glass & upholstery
Cabin top extension	Addition of an 18" overhang extension
Cabin top brackets	Cabin top brackets for traps/kayaks

Windows And Doors
Wiper options	Various options and upgrades include: heavy duty wiper with self-parking and switch, manual wipers, windshield washer system, and pantographic wipers.
Heavy duty aluminum-framed window
Solar film on front windows
Vee berth aluminum door	2-piece locking aluminum door to vee berth
Transom exit door
Sliding door	Sliding door on aft cabin (upgraded from a hinged door)

Canvas
Awning	Aluminum-framed canvas covered 48" overhang

Electrical
Horn (stainless steel) options	Stainless steel single, twin or trumpet horn installation/upgrades available

Lighting
Cockpit lighting	LED light in welded housing
Transom light	Small flush mount (LED) light installed on transom
Docking lights	x2 LED docking lights
Spotlight and mount

Paint And Finish
Bottom paint	Trilux II bottom paint available on all models
Clear coat protection	Sharkhide clear coat will help keep the sheen of your boat and protect the hull
Boat name decal	Available on sides (2) of all boat models. Also available: boat name and place decal on transom
Zolatone paint with clear coat	Zolatone paint on the interior and/or exterior of cabin, soft top & cockpits. Available on all boat models.

Deck Washdown
Deck wash down pump	Hose and sprayer conveniently located in side gunnel

Safety
Boat hook	Telescopic 8'-0 boat hook
Fire extinguisher	Various makes and models available
First aid kit
Life jacket	Various sizes and models available
Life ring and holder	30" life ring with 50' line & holder
Throw line
Small vessel safety kit

Cabin
Closet	Closet with a welded aluminum door
Insulated cabin sides	Insulated cabin sides and headliner with white panelling

Galley
Refrigerator	Various models and sizes available
Sinks	Manual and electric options available
Galley	Galley with powder-coated aluminum cabinet with cupboards, drawers, shelf, counter-top & side table. compact or regular sized galleys available
Seat or table socket	Additional flush mount seat or table socket
Galley package	Galley package - powder-coated aluminum cabinet with drawers, DC refrigerator, sink, diesel cook top stove, electric tap set & 9 Gal holding tank

Settee
Table	Table on single pedestal with flush pedestal socket (or removable quick release option also available)
Settee	2 or 4-person settee, with drop down table, storage cupboards & vinyl upholstered seating including backrest cushions
Settee upgrade	Settee upgrades available: - extend dinette width for double bunk. - reversible backrest on forward dinette seat.

Headliner
Headliner velour	Cabin top velour headliner

Head And Shower
Curtains in head	Canvas privacy curtain in marine head
Non-skid paint in head	Add security to the flooring with textured paint
Hot water	6 GAL hot water tank for domestic hot water
Head options	Available options: - Shelf in head compartment - Shower head - hot /cold flush with drain sump including pump - Sink in head - electric or manual taps including pump
Head compartment	Stand-up head compartment with exterior vent, door & latch
Marine head	Electric or manual options available
Hot water holding tank	10 GAL with 3-way valve, deck clean-out and mascerator pump *required in US only
Porta potty	Compact manual toilet

Heaters
Diesel tank storage box	Storage box below aft helm (aluminum) for diesel tank. Also available as a storage box/foot rest with lid in front of helm seat for bus heater
Hydronic heater/hot water - diesel hydronic coolant heater	Hydronic heater/hot water with (2) blowers and diesel tank
Diesel heater	Various diesel heater options available
Cabin vent	For galley options

Electrical
12 V Power socket	Includes USB port and LED light
Breaker panel upgrade	Added options and/or upgrades available
Electric fan	For cabin interior
Wiper options	Various options and upgrades include: heavy duty wiper with self-parking and switch, manual wipers, windshield washer system, and pantographic wipers.

Lighting
Red & white dome style light in cabin, vee berth or head	Day and night lighting
Passage way lights - low level LED's	Available on models with enclosed cabins

Paint And Finish
Non-skid paint in head	Add security to the flooring with textured paint
Zolatone paint with clear coat	Zolatone paint on the interior and/or exterior of cabin, soft top & cockpits. Available on all boat models.

Seating
Armrests
Grammer suspension helm seat	Suspension helm seat with high back, arm rests & swivel
Jump seat	Side mount jump seat
Seat slide
Seat or table socket	Additional flush mount seat or table socket

Electronics
Garmin GPSMap	Different models to choose from
Garmin echoMAP	Various Garmin echoMAP options available
Compass	Ritchie dash mount compass
VHF radio	Various models available, both handheld and fixed-mount.
Garmin map chip	Available for various locations
Garmin radar	Placed on roof top radar post
Stereo and speakers
Horn (stainless steel) options	Stainless steel single, twin or trumpet horn installation/upgrades available

Batteries
Battery monitor

Lighting
Docking lights	x2 LED docking lights
Spotlight and mount

Breaker Panel
Breaker panel upgrade	Added options and/or upgrades available

Safety
Flares	Additional safety option
Horn (stainless steel) options	Stainless steel single, twin or trumpet horn installation/upgrades available
VHF radio	Various models available, both handheld and fixed-mount.

Downriggers
Downrigger cannon ball holders	Made by Scotty Plastics
Scotty accessories	Available options: - electric receptacles - powerlock rod holder - swivel mount
Scotty downrigger	Scotty depthpower 30" or 60", includes swivel, cannonball holders & plug wiring

Crab Pot Pullers
Crab pot puller	Ace Line Hauler crab pot puller (100 lb), mounted with power plug, or supply only

Rob And Net Holders
Net holder - welded
Rod holder - 2 sets of 3 welded holders bolted to cabin top sides	Upgrade to powder-coated to match
Rod storage
8-pack Rocket launcher rod holder	upgrade to Powder-coated to match

Fish Box Liners
Fish box liner	Fish box liner for under deck storage compartment

Steering
Steering upgrades	Available steering options: - Tilt steering- upgrade - Flush mount kit for rear steering station
Dual engine	Available options: -dual engine, single station -dual engine, dual station
Dual station	Available options: - single engine, dual station - dual engine, dual station
Dual station steering console	Console comes with open storage bin & cup holder(s)

Propellers
Propellor guard	Available in stainless steel or aluminum
Propellor	Stainless steel and aluminum models available

Bow Thrusters
Vetus bow thruster	Propulsion device mounted to the bow for increased maneuverability

Anchors
Anchor	Windlass or non-Windlass anchors available in various sizes, from light to heavy duty
Anchor roller - upgrade	Various sizes and options available

Cleats
Aluminum welded cleat	Cleats available in 8" and 9" sizes
Flush mounted cleat	Cleat - flush mount (tie-down)

Fenders
Polyform fender
Fender holding baskets	Mount to bow handrails

Shore Power
A/C Receptacles	Additional A/C receptacles
Galvanic isolator
Shore power package	Shore power with 50 ft. 30A cord, AC panel & 110V receptacle
Battery charger	Dual bank waterproof onboard charger

Lighting
Docking lights	x2 LED docking lights
Spotlight and mount

Docking
Samson dock lines

Deck
Side steps	Available options: - 2 fixed/welded to rod tray (side gunnel) - removable on rod tray (side gunnel)
Storage compartment under deck	Storage compartment under deck with baffle (2)

Grab Rails
Transom handrails	Handrails on transom, with downrigger mounts & cup holders
Bow rails	Various sizes and configurations available
Handrails	Available options: -Overhead grab rails in cabin -Handrails on bow -Handrails on cabin top -3`-0`` handrails -Handrails on cuddy

Ladders
Swim ladder	Folding swim ladder with grab handle on transom
Ladder	Available options: - Heavy duty stern mounted dive ladder (open rung) - Stainless steel telescoping under transom 3 rung (cable steering option) - Powder coated
Cabin top ladder	Ladder to cabin top

Tow Posts
Tow post	A number of options are available, including light to heavy duty and welded/fixed or removable.

Radar Arches
Radar post	Radar post with antenna wings, available in large or small sizes
Radar arch	Radar arch on cabin top with mounting plates for electronics Available options: - removable radar arch - powder coated radar arch

Bilge Pumps
Automatic bilge pump upgrade	Upgrades available in 1250 GPH, 1500 GPH, 2000 GPH
Bilge blower	Provides efficient ventilation for bilges, engine compartments, galleys and heads

Fuel Tank
Fuel tank (standard) increase size/per GAL

Hull
External motor bracket - upgrade	Includes auxiliary motor mount and twin engine fuel upgrade (filter, vents, pick up)

Delivery
Delivery	Delivery available across the United States and Canada. Speak to your dealer for more information.

Licensing
Commercial application	Available Options: - Commercial application TP1332 Class B - Commercial application TP1332 Class C - Commercial application TP1332 Class D
Pleasure craft license	Pleasure craft license. Includes (2) number decals. Canada ONLY.

Trailers

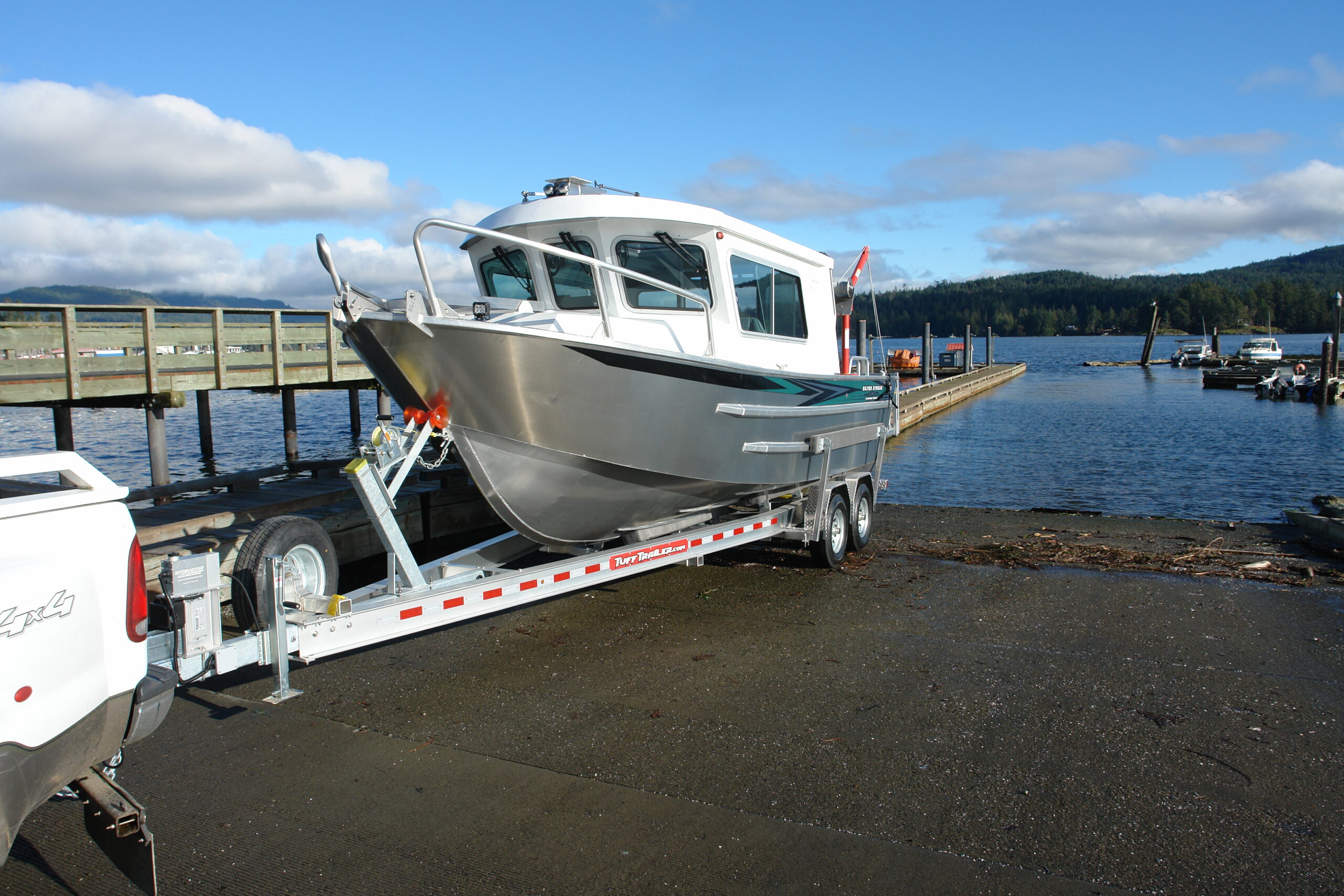

Trailer	Highliner and Roadrunner trailers available for all boats: - Single axle - Dual axle - Galvanized - With and without drum brakes - 800lb to 10,000lb capacity

Browse Features

Find out more about available features. Use our interactive features tool to customize your Silver Streak Boat.

Learn More

Find A Dealer

See something you like? Want more information on Silver Streak Aluminum Boats? Find a dealer near you for more information.

Learn More

Similar Boats You May Like (swipe to view)

Aluminum boats require a lot less maintenance than fiberglass boats. Aluminum is more durable, longer lasting, and easier to maintain. All our boats are available with a selection of bottom paint options to meet your specific boating needs.

Andy Barry - Owner of Silver Streak Boats has been building a reputation for building the finest aluminum boats on the west coast since 1987. Find out for yourself why our aluminum boats are among the most sought after, both new, and used.

All Welded Aluminum Boats means there are no rivets or other seals or connections that weaken overtime, create leaks, and will eventually fail. Welded aluminum boats are among some of the toughest boats out there. Probably why they have become a staple of the west coast.

Our aluminum boats require very little ongoing maintenance. No carpets to maintain, no wood to replace and clean. High quality electrical connections mean minimal effort to maintain. Outboard motors mean a simple "end of life" switch, and protect your investment.

Client Testimonials

We want to give a testimonial to the wonderful experience we had with Silver Streak Boats in Sooke, B.C.

Andy listened carefully about what we required, made recommendations but never tried to sell more Options than we needed.

Follow through was a pleasant phone call away with Jessica who was knowledgeable in all matters regarding purchase and delivery. No question was left unanswered by either she or Andy.

And believe me, being from the United States and purchasing a boat in Canada could have been difficult.

Couldn’t have been more pleased with their help.

Sam & Joyce S.

Location: Sequim, WA

Read All Of Our Client Testimonials

Let’s Talk Boat!

Have questions? Looking for a Quote?

Complete this form and we will connect you with a Dealer:

Name*
First Last
Email
Phone*
Address*
City State / Province / Region
Tell us about the type of boater you are, or anything else we should know:
CAPTCHA
Phone
This field is for validation purposes and should be left unchanged.
