28′ Cuddy Cabin – Swiftsure XW All Welded Aluminum Boat
About This Boat
The Swiftsure model is the first of the 3D modeled and CNC cut vessels implemented by Silver Streak Boats. Built for rough water, with an even deeper vee than Silver Streak’s standard Swiftsure, the XW (extra wide) edition is the smoothest riding vessel that we build! Insulated for sound dampening and warmth, a 9’-6” beam, and an extra foot of width in the cabin, all contribute to making this boat a perfect choice for families. With the addition of a galley, dinette and head, this basic and functional boat can also be the perfect island hopping vessel!
This Boat Is Ideal For ...
Cod
Crabbing
Cruising
Exploring
Family Time
Fishing
Halibut
Lake
Multipurpose
Ocean
Prawning
Salmon
Tuna
Standard Features List
- 1 x Fully welded stand-up cabin including solid bulkhead with (1) hinged door, 3-piece forward leaning aluminum-framed windshield, (2) sliding side windows with flyscreens, (3) fixed rubber-framed bulkhead windows & (2) cuddy windows
- 1 x 12 V power socket with USB port & LED light

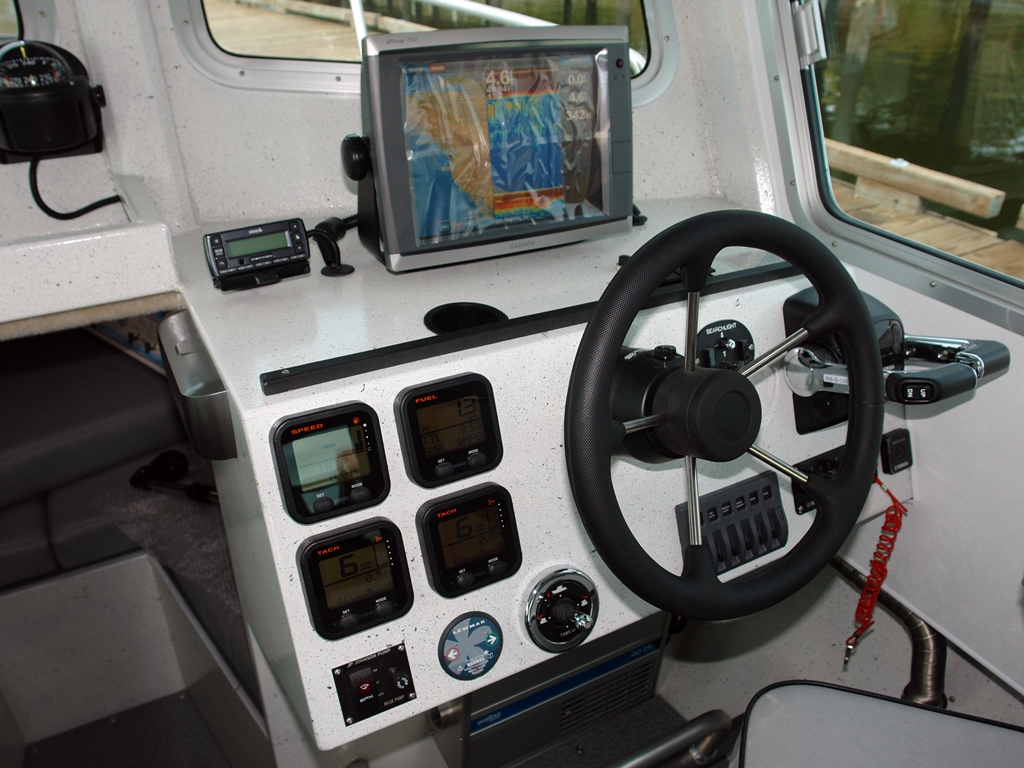

- 1 x 6-way fused switch panel on dashboard
- 1 x 9″ welded aluminum cleats
- 1 x Aluminum deck in main cabin with storage hatch(es)
- 1 x Battery – dual SRM 27 batteries including wiring, breaker, 4-way selector switch & boxes
- 1 x Bilge pump – 1600 GPH bilge pump – auto on/off
- 1 x Bow railing – 18″ with opening at front
- 1 x Brackets for transducer and anode (1), plus weld-on teardrop anodes (2) under hull
- 2 x Cabin lights (interior)
- 1 x Chain locker – self draining with heavy duty, stainless steel anchor roller. Insulated for noise reduction
- 1 x Chines & gunnels fully welded
- 1 x Closing storage in transom (locking battery compartment)
- 2 x Cup holders
- 3 x Drain plugs
- 1 x Electric trim tab set (18″W x 12″L)
- 3 x Electric wipers – heavy-duty with self-park & switch
- 1 x Electrical panel canvas cover (in forward compartment)
- 1 x Emergency escape hatch with flyscreen in forward compartment

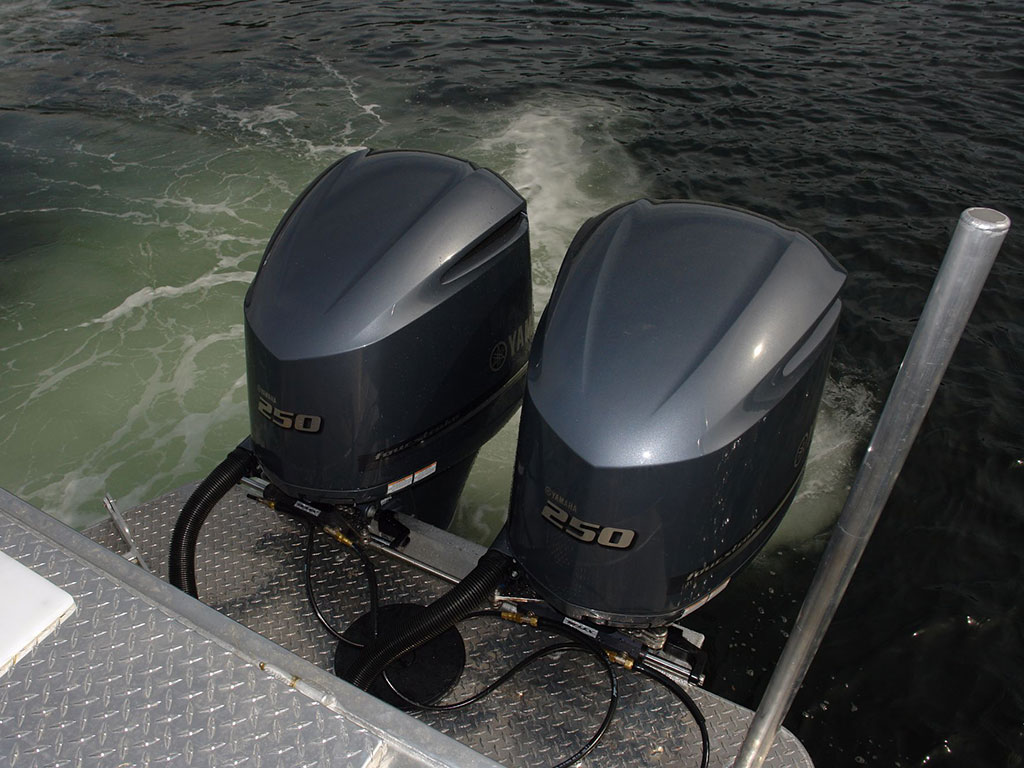

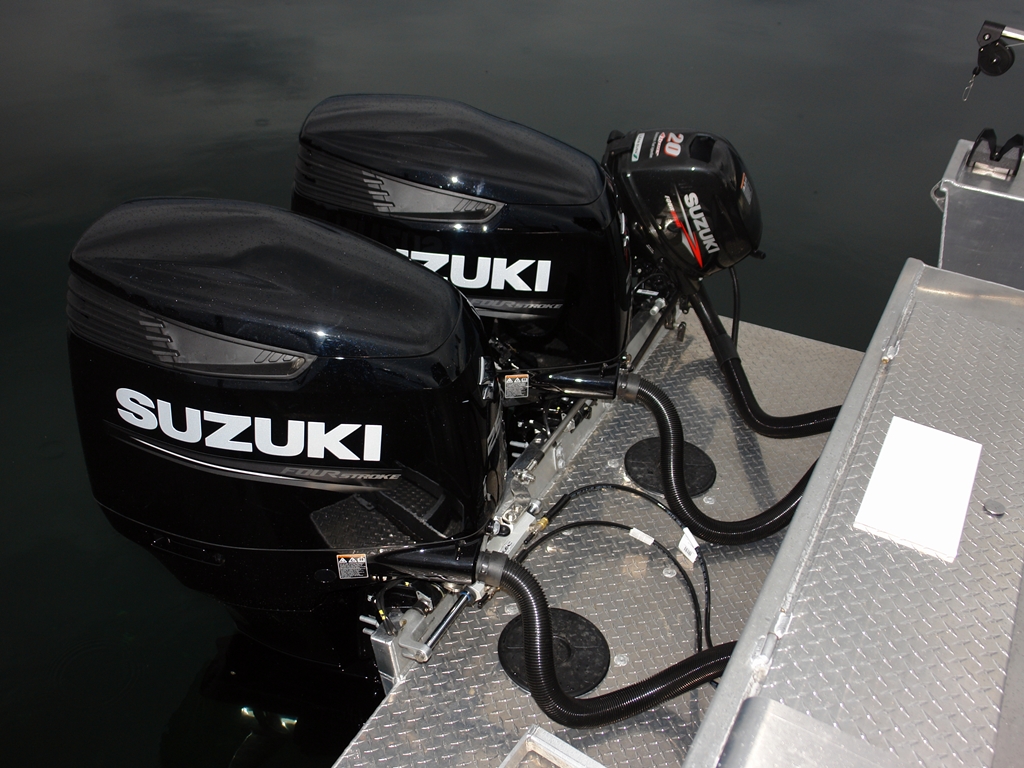

- 1 x External motor bracket for twin 30″ engines with auxiliary mount and full-width transom
- 1 x Fish box in rear gunnel with cutting board
- 1 x Flotation – closed cell polyurethane spray foam under decks & gunnels
- 1 x Foot rest on forward bulkhead (fixed/welded)
- 1 x Fuel tank (100 Imp Gal/120 US Gal) w/ fuel gauge – built in under deck
- 1 x Fully insulated, framed and panelled vee berth bunk, with 3″ vinyl upholstered cushions
- 1 x Fully welded self-bailing aluminum cockpit deck with inspection hatches for fuel connections and wire ways
- 1 x Glove box
- 1 x Heavy duty custom hull graphic
- 1 x Horn – twin compact (stainless steel)
- 1 x Keel guard on hull bottom (beaching wear strip)
- 1 x Navigation lights (LED)
- 1 x Non-skid paint on bow and main deck

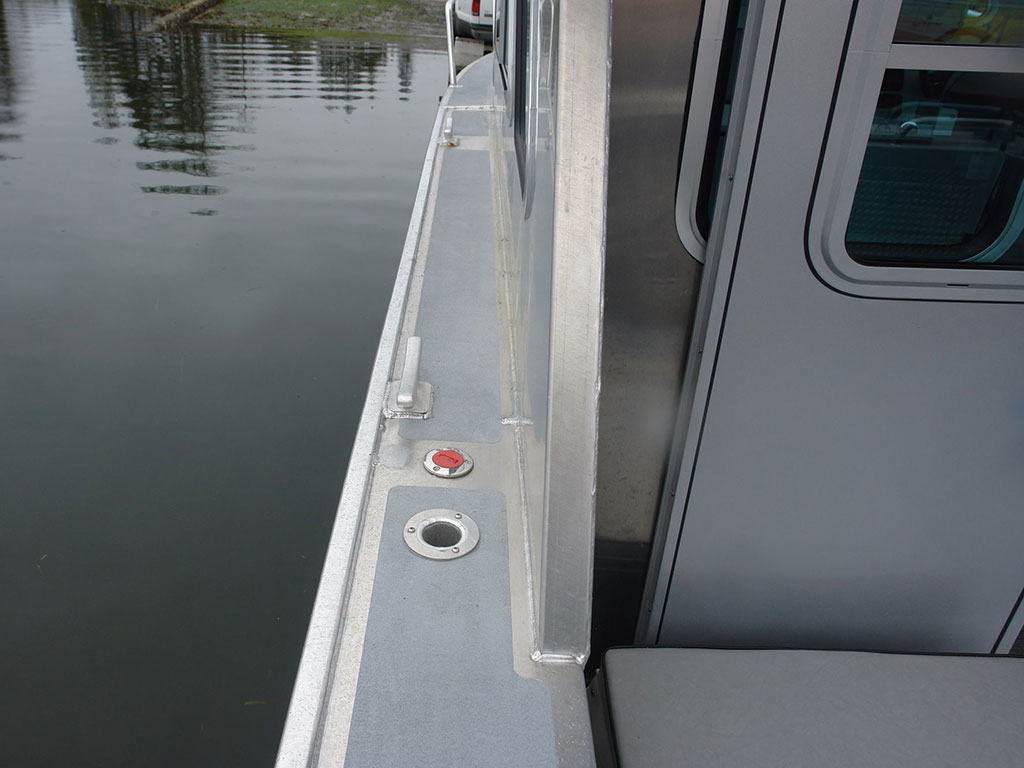

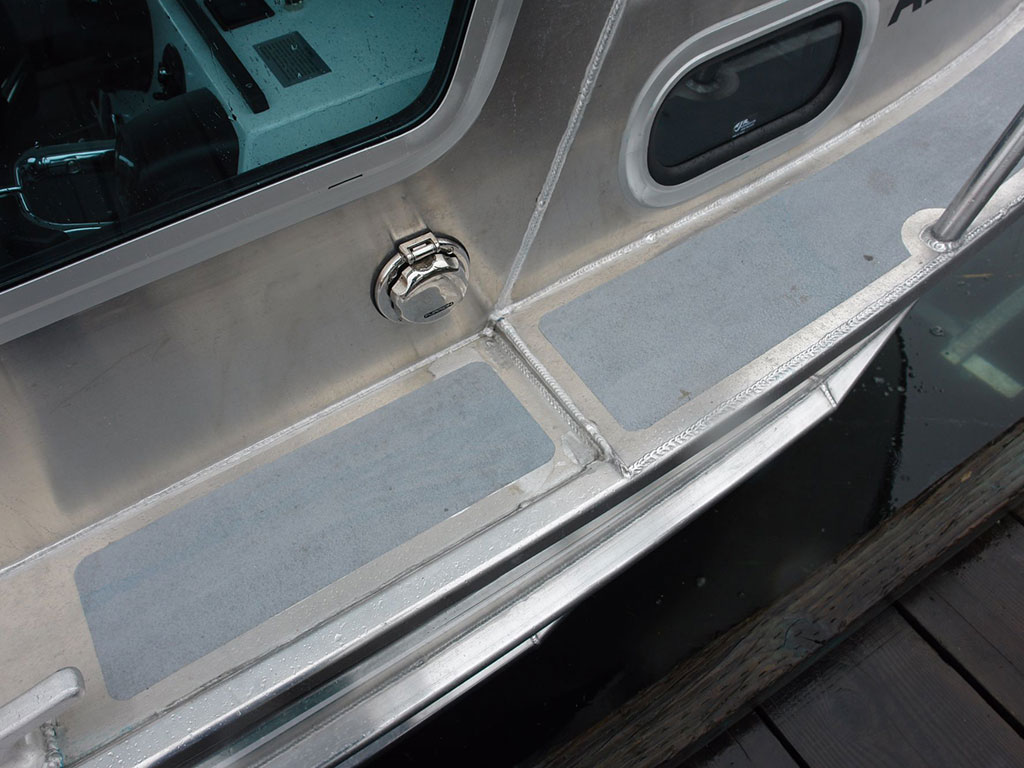

- 1 x Non-skid paint on gunnels
- 1 x Raised foredeck (bow) for increased head clearance in vee berth
- 2 x Side stiffeners (per side)
- 1 x Side storage trays – in cabin & cockpit

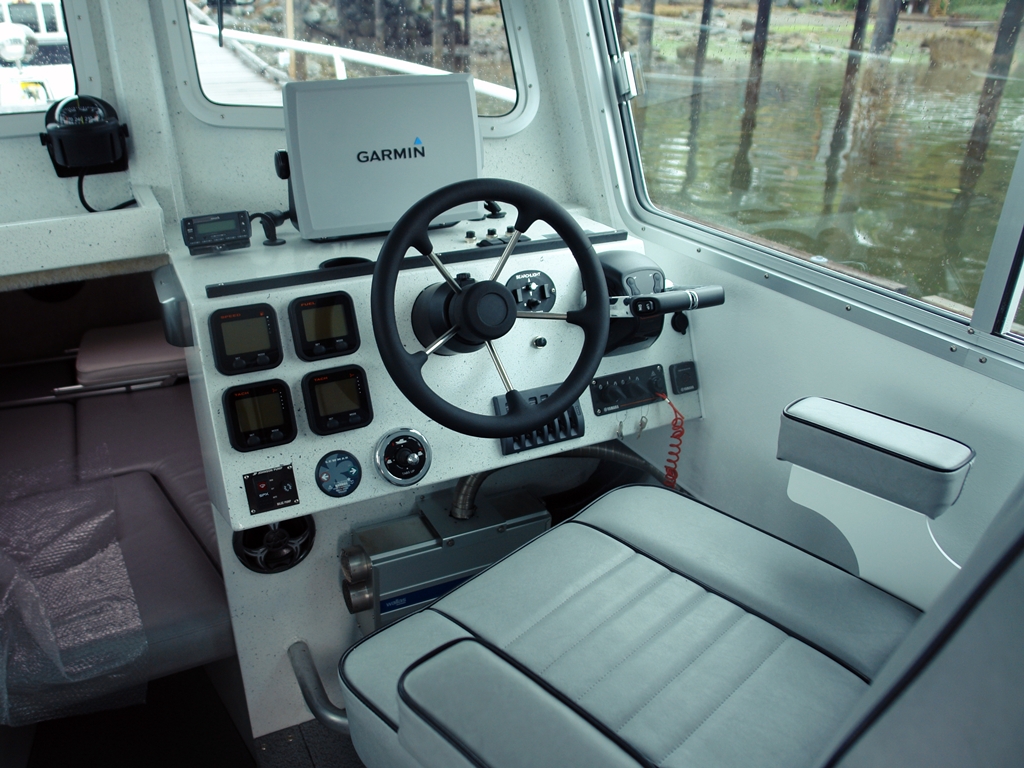

- 1 x Steering for twin engine, single station – hydraulic
- 2 x Storage bench seats (vented) with vinyl upholstery & backrests
- 1 x Storage compartments in cuddy side panels
- 2 x Swivel Seats – Barry Marine vinyl upholstered (lg) on shock absorbing Back Saver pedestals
- 1 x Under deck storage compartment in cockpit deck
- 1 x Under deck large storage compartment with hinged door in cabin
- 3 x Welded bow & transom eyes with stainless steel inserts
28′ Cuddy Cabin – Swiftsure XW Standard Specification
Capacity (People): 6
Horsepower Minimum: 225 Twin
Cabin Dimensions: 96" x 102" x 80"
Beam: 9'-6"
Freeboard: 43"
Dead Rise: 22°
Bottom Width: 8'-8"
Hull Weight: 4,200 lbs
Bottom Plate: 1/4" 5086
Side Plate: 3/16" 5086
Fuel Tank: 100 Imp GAL
Tow Weight: 10,014 lbs
Aft Deck Size: 114 13/16" x 88 3/4"
Make It Yours - Available Customization Options
Exterior
Interior
Nav & Electronics
Fishing
Power
Docking
Technical
Delivery| Cabin | |
| Aluminum folding steps | (2) Folding steps to access cabin top |
| Cabin extension | 1' to 3' cabin extensions with glass & upholstery |
| Cabin top extension | Addition of an 18" overhang extension |
| Cabin top brackets | Cabin top brackets for traps/kayaks |
| Windows And Doors | |
| Wiper options | Various options and upgrades include: heavy duty wiper with self-parking and switch, manual wipers, windshield washer system, and pantographic wipers. |
| Heavy duty aluminum-framed window | |
| Solar film on front windows | |
| Sliding door | Sliding door on aft cabin (upgraded from a hinged door) |
| Vee berth aluminum door | 2-piece locking aluminum door to vee berth |
| Transom exit door | |
| Canvas | |
| Awning | Aluminum-framed canvas covered 48" overhang |
| Electrical | |
| Horn (stainless steel) options | Stainless steel single, twin or trumpet horn installation/upgrades available |
| Lighting | |

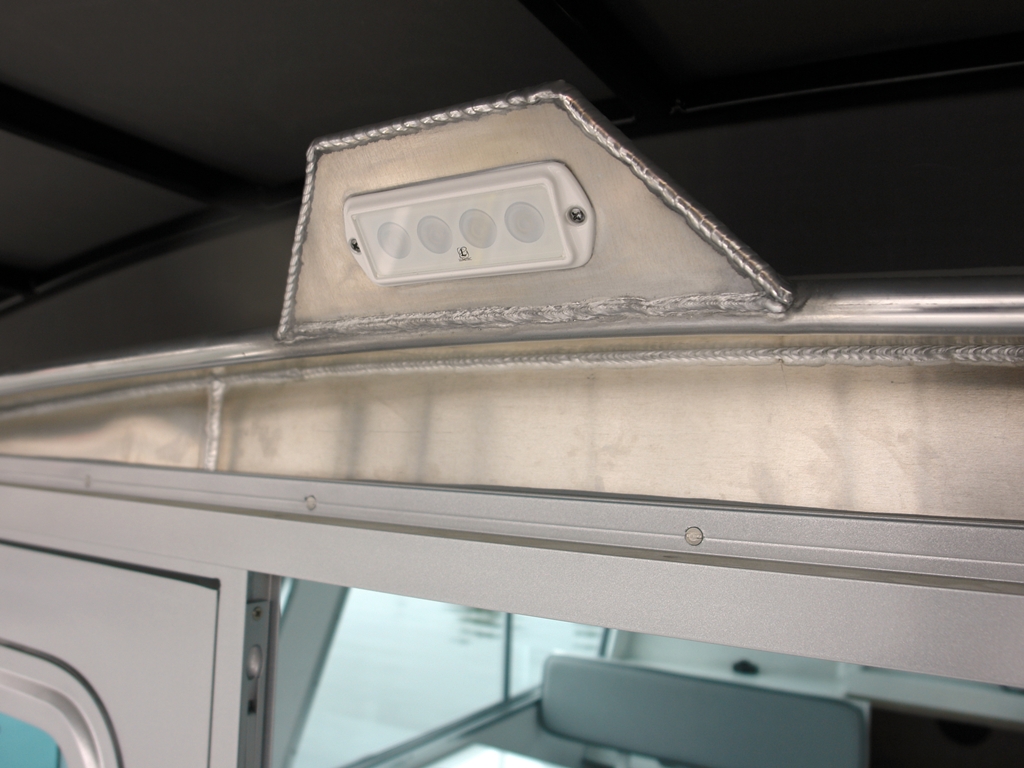

| Cockpit lighting | LED light in welded housing |
| Transom light | Small flush mount (LED) light installed on transom |
| Spotlight and mount | |
| Docking lights | x2 LED docking lights |
| Paint And Finish | |
| Bottom paint | Trilux II bottom paint available on all models |
| Clear coat protection | Sharkhide clear coat will help keep the sheen of your boat and protect the hull |

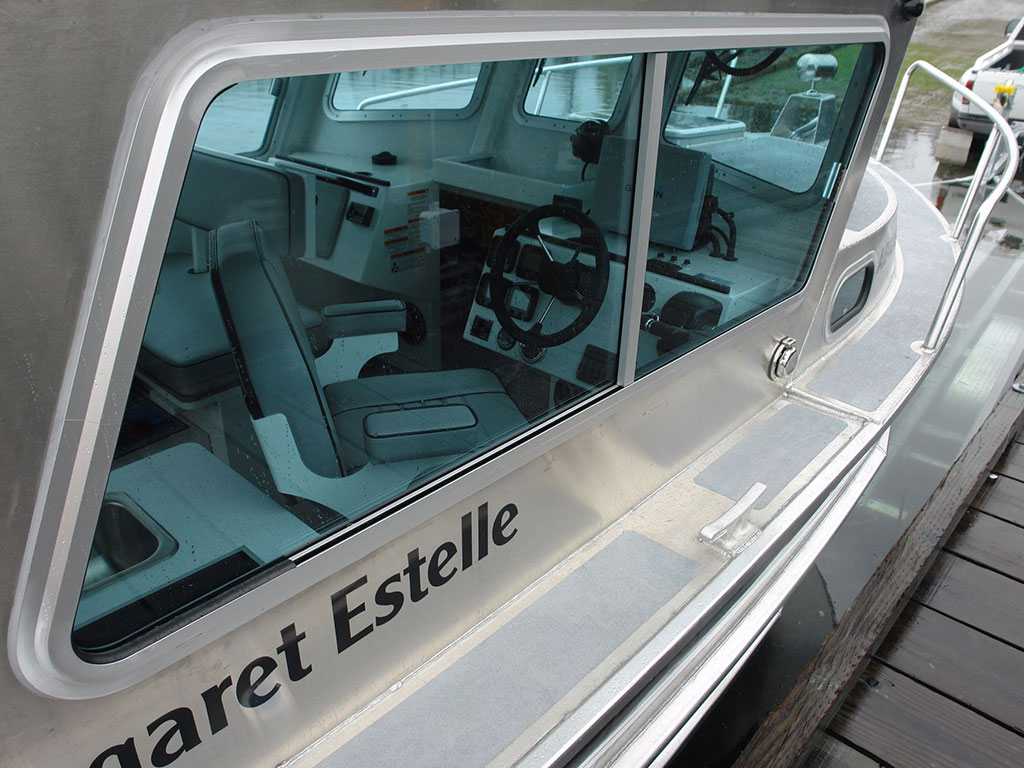

| Boat name decal | Available on sides (2) of all boat models. Also available: boat name and place decal on transom |
| Zolatone paint with clear coat | Zolatone paint on the interior and/or exterior of cabin, soft top & cockpits. Available on all boat models. |
| Deck Washdown | |
| Deck wash down pump | Hose and sprayer conveniently located in side gunnel |
| Safety | |
| Boat hook | Telescopic 8'-0 boat hook |
| Fire extinguisher | Various makes and models available |
| First aid kit | |
| Horn (stainless steel) options | Stainless steel single, twin or trumpet horn installation/upgrades available |
| Life jacket | Various sizes and models available |
| Life ring and holder | 30" life ring with 50' line & holder |
| Small vessel safety kit | |
| Throw line | |
| Cabin | |
| Closet | Closet with a welded aluminum door |
| Insulated cabin sides | Insulated cabin sides and headliner with white panelling |
| Galley | |
| Refrigerator | Various models and sizes available |
| Sinks | Manual and electric options available |

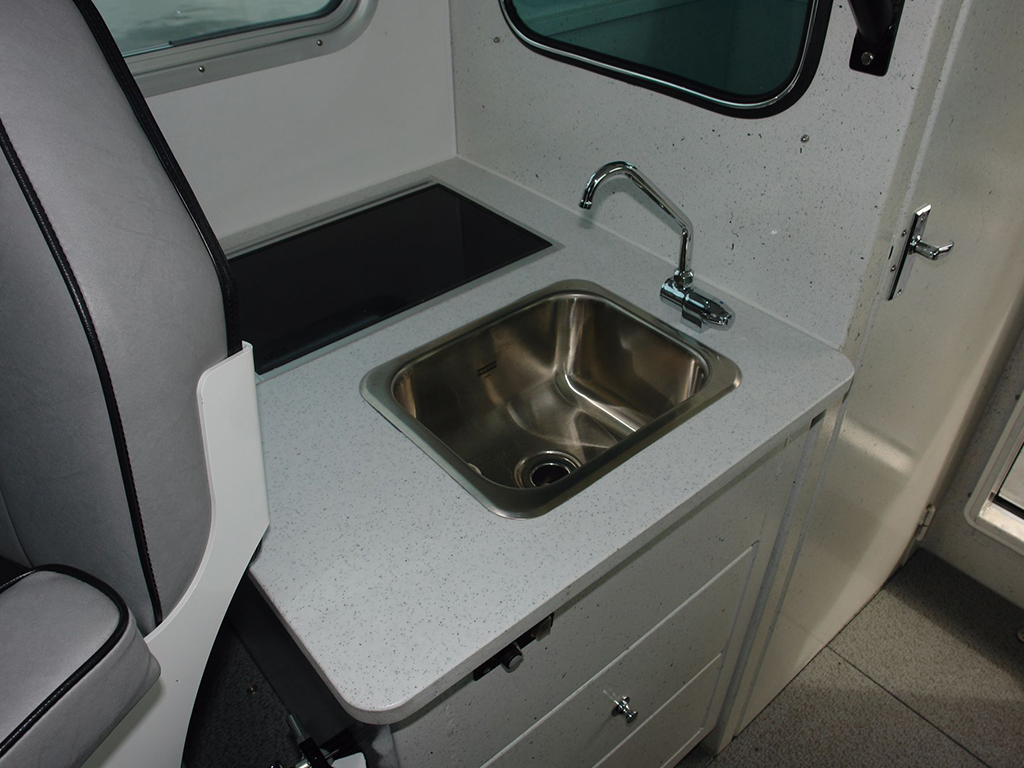

| Galley | Galley with powder-coated aluminum cabinet with cupboards, drawers, shelf, counter-top & side table. compact or regular sized galleys available |
| Seat or table socket | Additional flush mount seat or table socket |
| Galley package | Galley package - powder-coated aluminum cabinet with drawers, DC refrigerator, sink, diesel cook top stove, electric tap set & 9 Gal holding tank |
| Settee | |
| Table | Table on single pedestal with flush pedestal socket (or removable quick release option also available) |
| Settee upgrade | Settee upgrades available: |

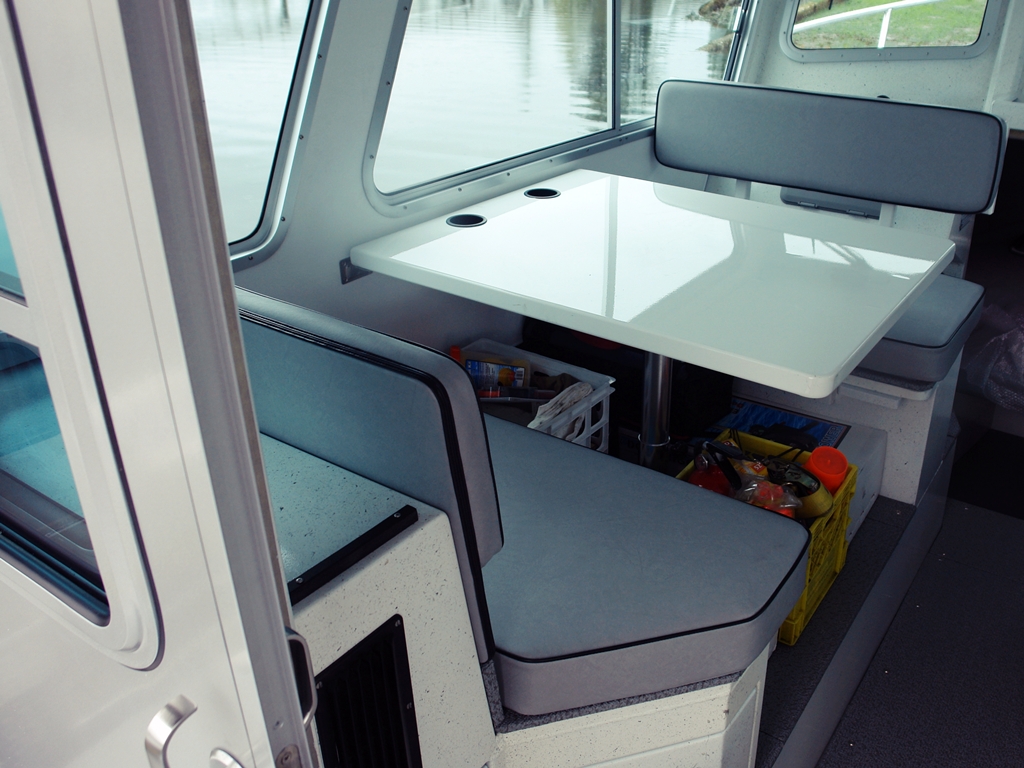

| Settee | 2 or 4-person settee, with drop down table, storage cupboards & vinyl upholstered seating including backrest cushions |
| Headliner | |
| Headliner velour | Cabin top velour headliner |
| Insulated & panelled headliner | |
| Head And Shower | |
| Curtains in head | Canvas privacy curtain in marine head |
| Non-skid paint in head | Add security to the flooring with textured paint |
| Hot water | 6 GAL hot water tank for domestic hot water |

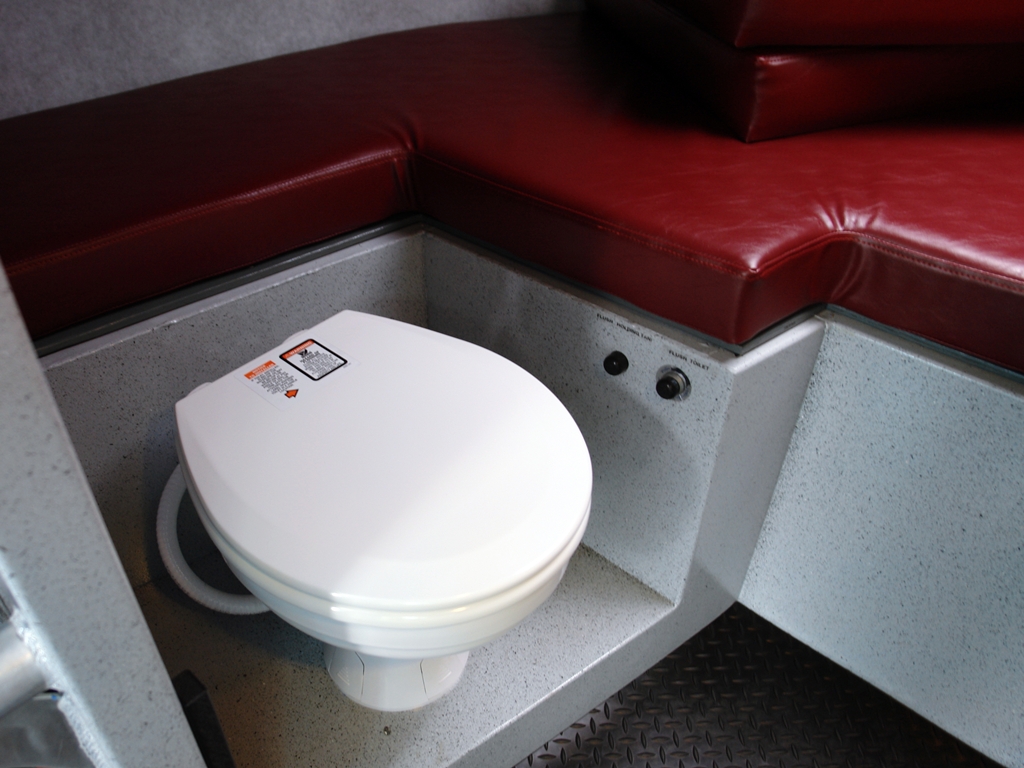

| Marine head | Electric or manual options available |

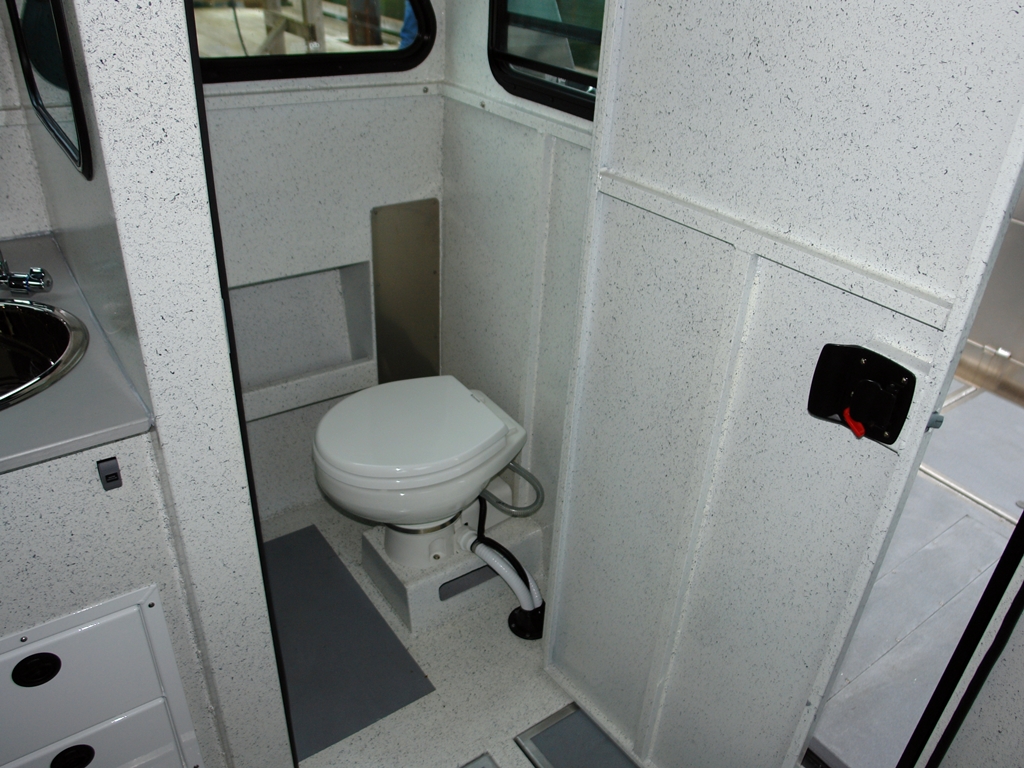

| Head compartment | Stand-up head compartment with exterior vent, door & latch |
| Head options | Available options: |
| Hot water holding tank | 10 GAL with 3-way valve, deck clean-out and mascerator pump *required in US only |
| Porta potty | Compact manual toilet |
| Heaters | |
| Diesel tank storage box | Storage box below aft helm (aluminum) for diesel tank. Also available as a storage box/foot rest with lid in front of helm seat for bus heater |
| Hydronic heater/hot water - diesel hydronic coolant heater | Hydronic heater/hot water with (2) blowers and diesel tank |

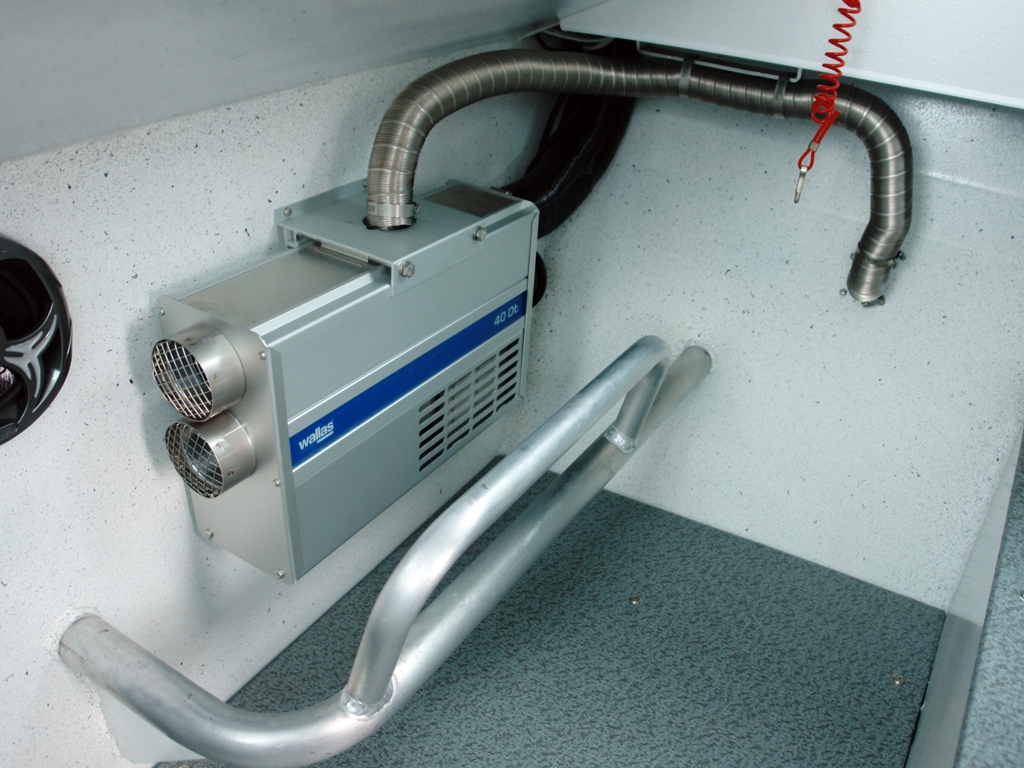

| Diesel heater | Various diesel heater options available |
| Cabin vent | For galley options |
| Electrical | |
| 12 V Power socket | Includes USB port and LED light |
| Breaker panel upgrade | Added options and/or upgrades available |
| Electric fan | For cabin interior |
| Wiper options | Various options and upgrades include: heavy duty wiper with self-parking and switch, manual wipers, windshield washer system, and pantographic wipers. |
| Lighting | |
| Red & white dome style light in cabin, vee berth or head | Day and night lighting |
| Passage way lights - low level LED's | Available on models with enclosed cabins |
| Paint And Finish | |
| Non-skid paint in head | Add security to the flooring with textured paint |
| Zolatone paint with clear coat | Zolatone paint on the interior and/or exterior of cabin, soft top & cockpits. Available on all boat models. |
| Seating | |
| Armrests | |

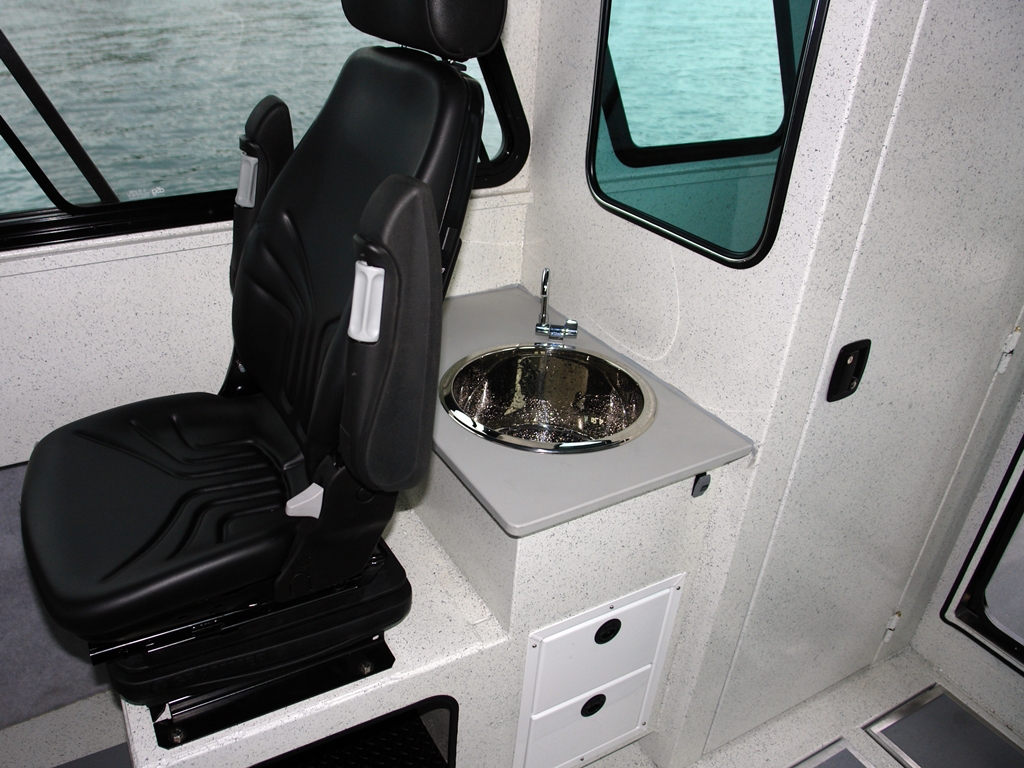

| Grammer suspension helm seat | Suspension helm seat with high back, arm rests & swivel |
| Jump seat | Side mount jump seat |
| Seat slide | |
| Downriggers | |
| Downrigger cannon ball holders | Made by Scotty Plastics |
| Scotty accessories | Available options: |
| Scotty downrigger | Scotty depthpower 30" or 60", includes swivel, cannonball holders & plug wiring |
| Crab Pot Pullers | |
| Crab pot puller | Ace Line Hauler crab pot puller (100 lb), mounted with power plug, or supply only |
| Rob And Net Holders | |
| Net holder - welded | |

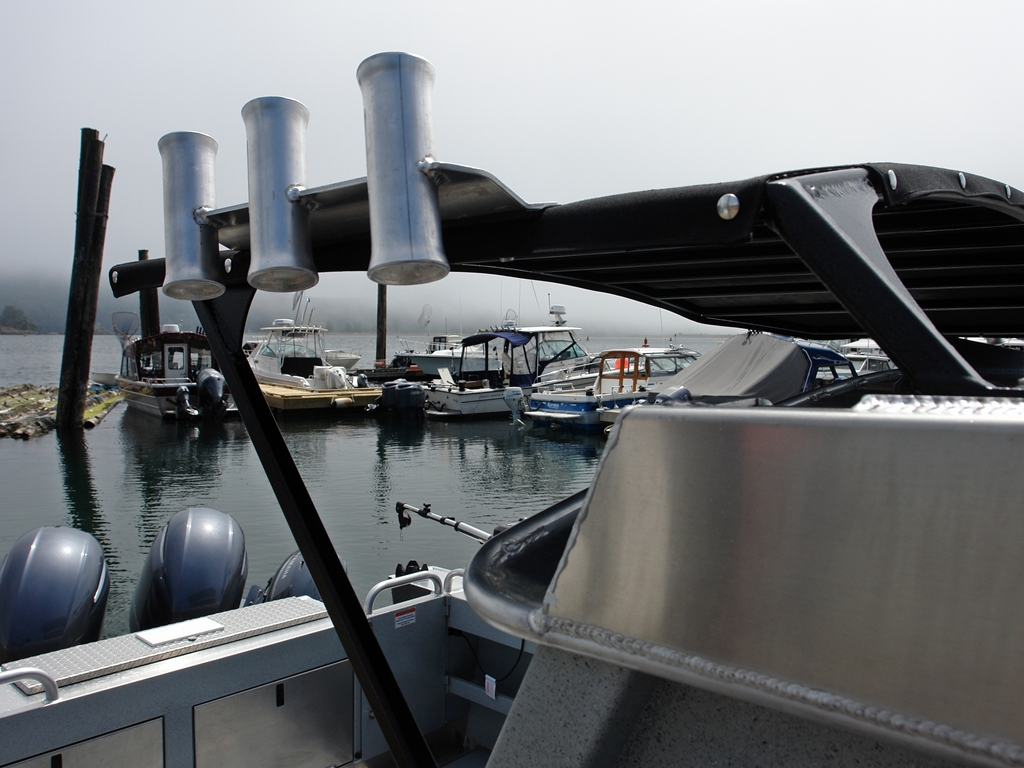

| Rod holder - 2 sets of 3 welded holders bolted to cabin top sides | Upgrade to powder-coated to match |
| Rod storage | |
| 8-pack Rocket launcher rod holder | upgrade to Powder-coated to match |
| Fish Box Liners | |
| Fish box liner | Fish box liner for under deck storage compartment |
| Steering | |
| Steering upgrades | Available steering options: |
| Dual engine | Available options: |
| Dual station | Available options: |
| Dual station steering console | Console comes with open storage bin & cup holder(s) |
| Propellers | |
| Propellor guard | Available in stainless steel or aluminum |
| Propellor | Stainless steel and aluminum models available |
| Bow Thrusters | |
| Vetus bow thruster | Propulsion device mounted to the bow for increased maneuverability |
| Anchors | |
| Anchor | Windlass or non-Windlass anchors available in various sizes, from light to heavy duty |
| Anchor roller - upgrade | Various sizes and options available |
| Cleats | |
| Aluminum welded cleat | Cleats available in 8" and 9" sizes |
| Flush mounted cleat | Cleat - flush mount (tie-down) |
| Fenders | |
| Fender holding baskets | Mount to bow handrails |
| Polyform fender | |
| Shore Power | |
| A/C Receptacles | Additional A/C receptacles |
| Galvanic isolator | |
| Shore power package | Shore power with 50 ft. 30A cord, AC panel & 110V receptacle |
| Battery charger | Dual bank waterproof onboard charger |
| Lighting | |
| Docking lights | x2 LED docking lights |
| Spotlight and mount | |
| Docking | |
| Samson dock lines | |
| Deck | |
| Side steps | Available options: |
| Grab Rails | |
| Bow rails | Various sizes and configurations available |
| Transom handrails | Handrails on transom, with downrigger mounts & cup holders |
| Handrails | Available options: |
| Ladders | |
| Swim ladder | Folding swim ladder with grab handle on transom |
| Ladder | Available options: |
| Cabin top ladder | Ladder to cabin top |
| Tow Posts | |
| Tow post | A number of options are available, including light to heavy duty and welded/fixed or removable. |
| Radar Arches | |
| Radar post | Radar post with antenna wings, available in large or small sizes |
| Radar arch | Radar arch on cabin top with mounting plates for electronics |
| Bilge Pumps | |
| Automatic bilge pump upgrade | Upgrades available in 1250 GPH, 1500 GPH, 2000 GPH |
| Bilge blower | Provides efficient ventilation for bilges, engine compartments, galleys and heads |
| Fuel Tank | |
| Fuel tank (standard) increase size/per GAL | |
| Hull | |
| Transom exit door | |
| External motor bracket - upgrade | Includes auxiliary motor mount and twin engine fuel upgrade (filter, vents, pick up) |
| Delivery | |
| Delivery | Delivery available across the United States and Canada. Speak to your dealer for more information. |
| Licensing | |
| Commercial application | Available Options: |
| Oversize permit | Oversize permit (additional) |
| Pleasure craft license | Pleasure craft license. Includes (2) number decals. Canada ONLY. |
| Trailers | |
| Trailer | Highliner and Roadrunner trailers available for all boats: |
