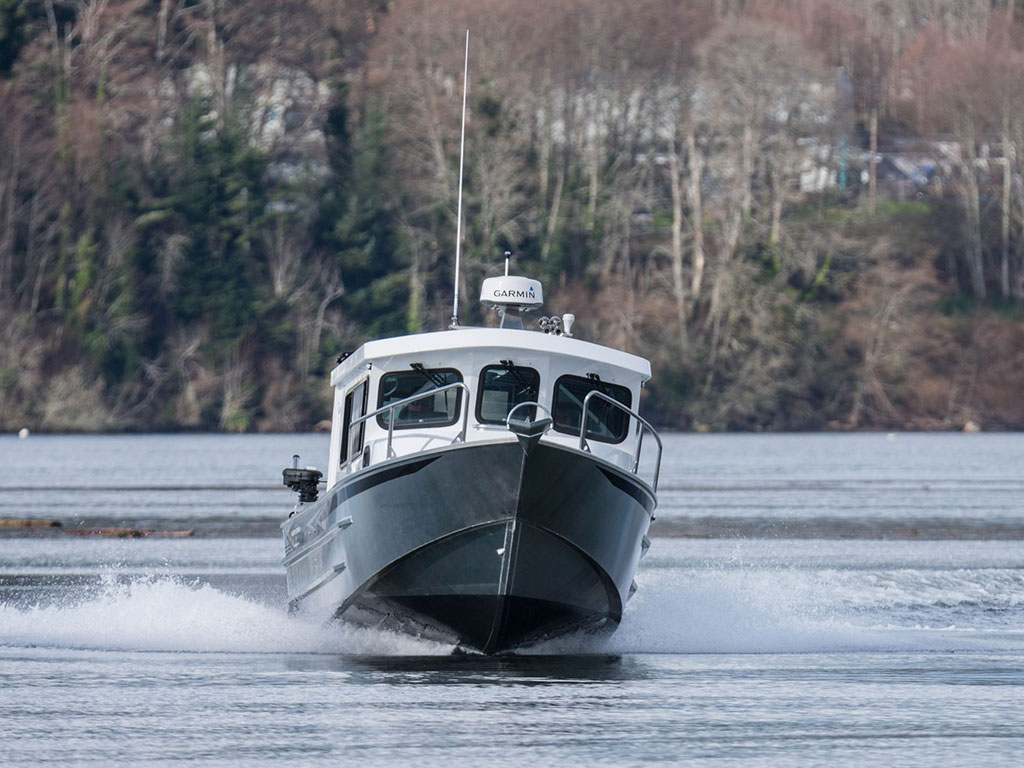

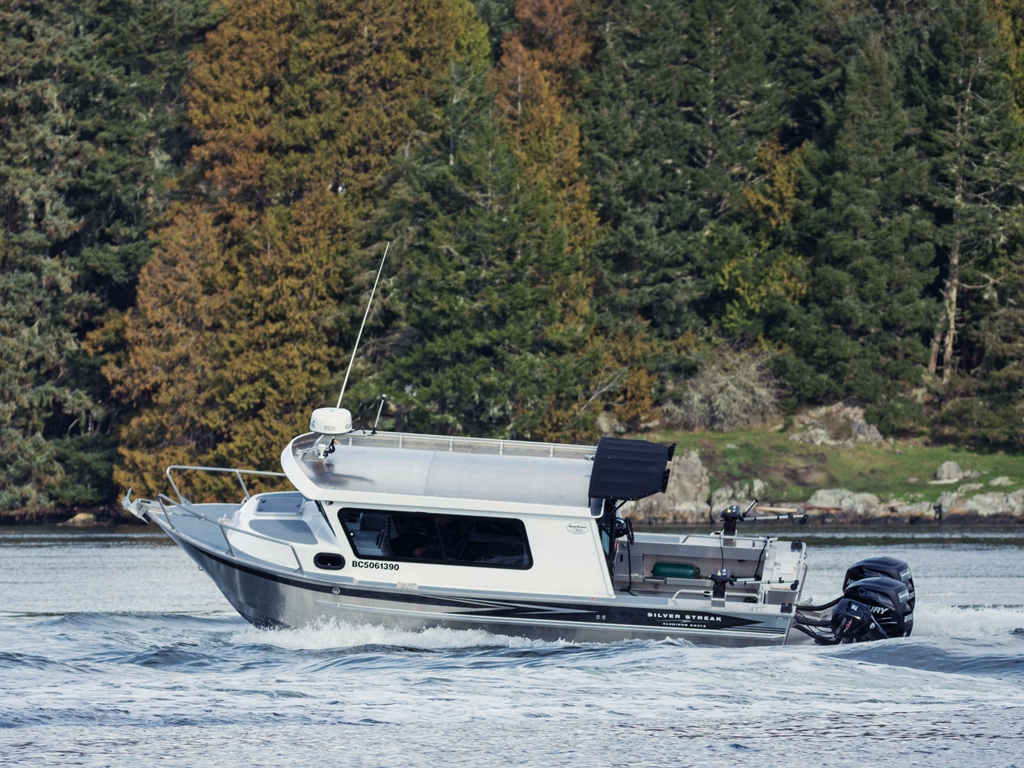

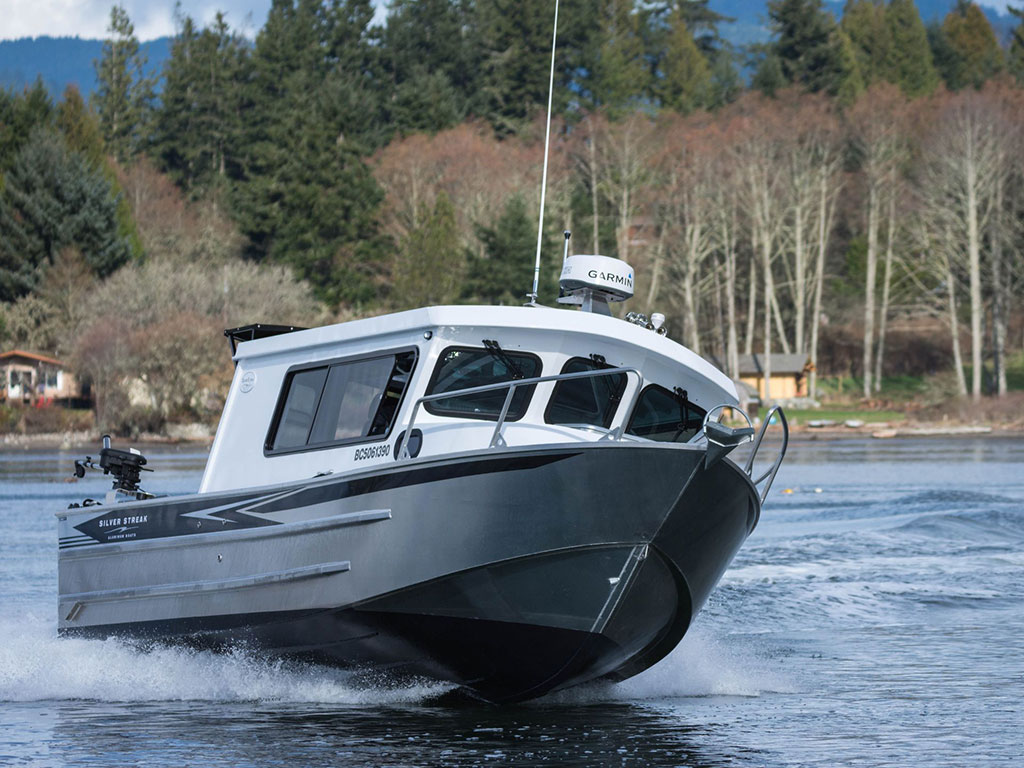

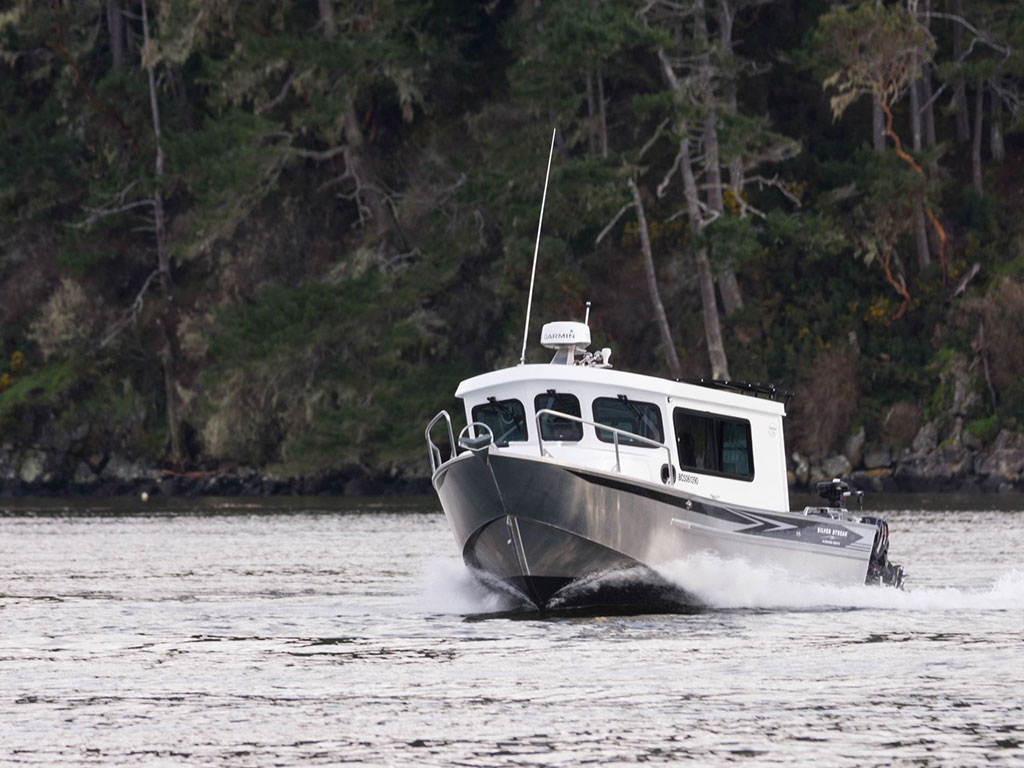

26′ Cuddy Cabin – Swiftsure All Welded Aluminum Boat

About This Boat

The Swiftsure design is the first of the 3D modeled and CNC cut vessels that was implemented by Silver Streak Boats. Designed with a deep-vee, and insulated for sound dampening and warmth, this boat was built for comfort while underway and for over-night stays. There are many leisure options available for this boat including, dinettes, heads and galleys. Keep this model non-complex and generate a quality fishing charter or transport vessel.

This Boat Is Ideal For ...

Cod

Crabbing

Cruising

Exploring

Family Time

Fishing

Fresh Water

Halibut

Lake

Multipurpose

Ocean

Prawning

Salmon

Tuna

Got Questions? Get Answers

Standard Features List

1 x Fully welded stand-up cabin including solid bulkhead with (1) hinged door, 3-piece aluminum-framed forward leaning windshield, (2) sliding side windows with flyscreens, (3) fixed rubber-framed bulkhead windows & (2) cuddy windows
1 x 12 V power socket with USB port & LED light
1 x 6-way fused switch panel on dashboard
5 x 9″ welded aluminum cleats
1 x Aluminum deck in main cabin with storage hatch(es)
1 x Battery – dual SRM 27 batteries including wiring, breaker, 4-way selector switch & boxes
1 x Bilge pump – 1600 GPH pump – auto on/off
1 x Bow railing – 18″ with opening at front
1 x Brackets for transducer and anode (1), plus weld-on teardrop anodes (2) under hull
1 x Cabin light (interior)
1 x Chain locker – self draining with heavy duty stainless steel anchor roller. Insulated for noise reduction
1 x Chines & gunnels fully welded
1 x Closing storage in transom (locking battery compartment)
2 x Cup holders
3 x Drain plugs
1 x Electric trim tab set (18″W x 12″L)
3 x Electric wipers- heavy-duty wiper with self-park & switch
1 x Electrical panel canvas cover (in forward cuddy compartment)
1 x Emergency escape hatch with flyscreen in forward compartment

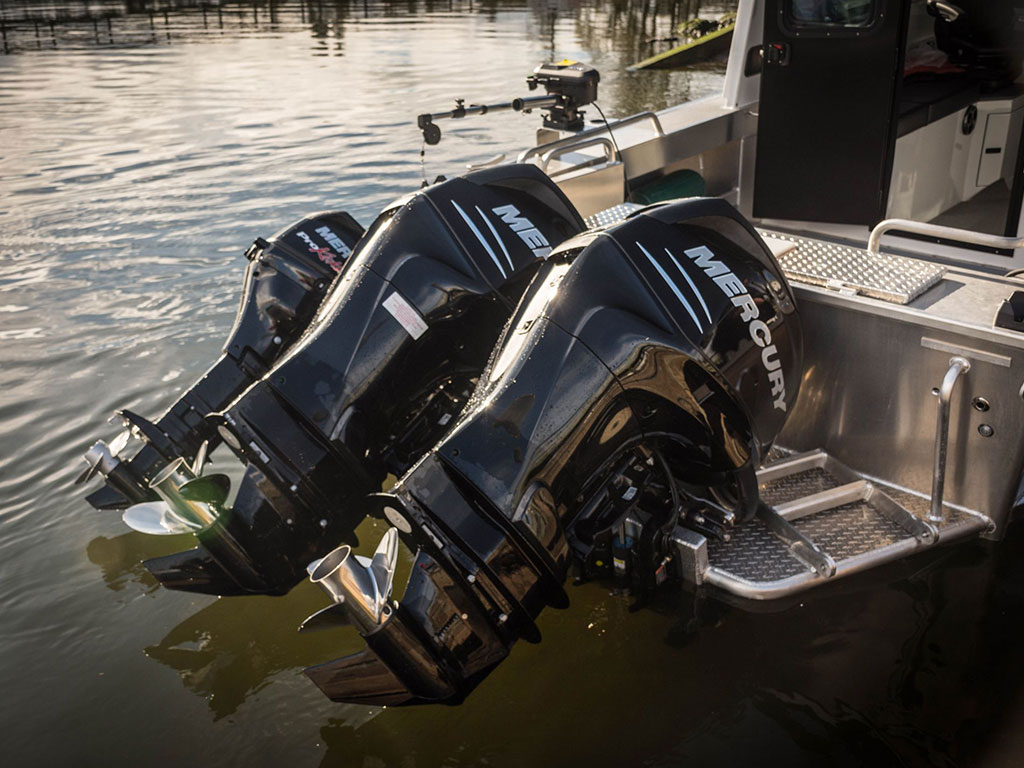

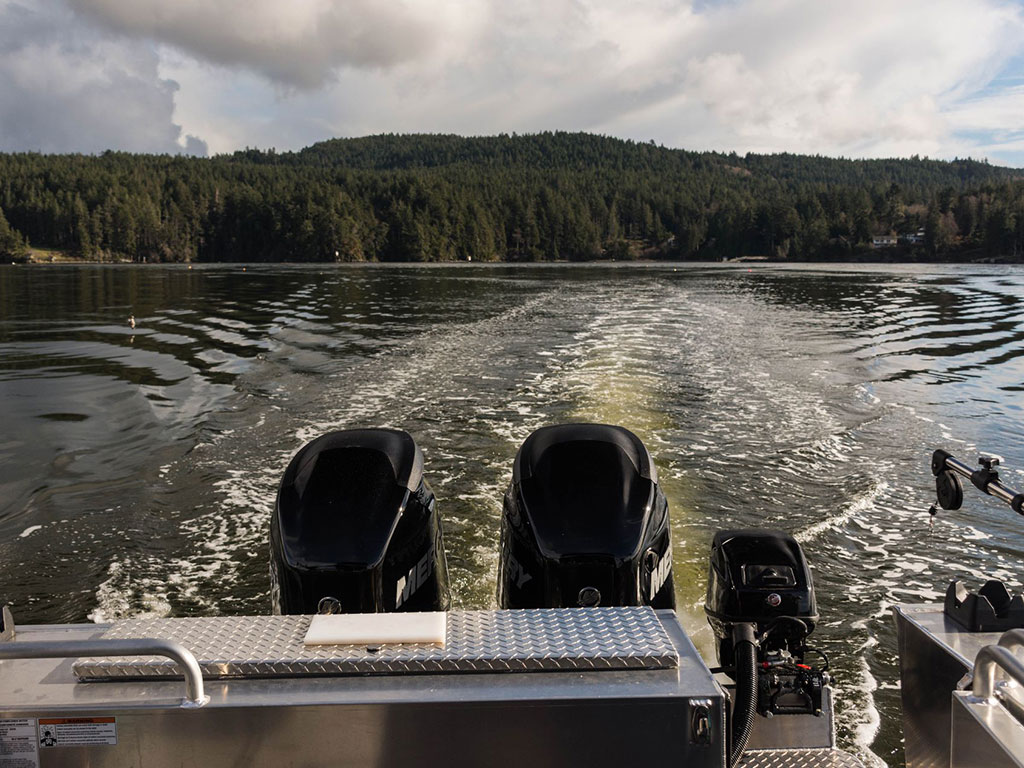

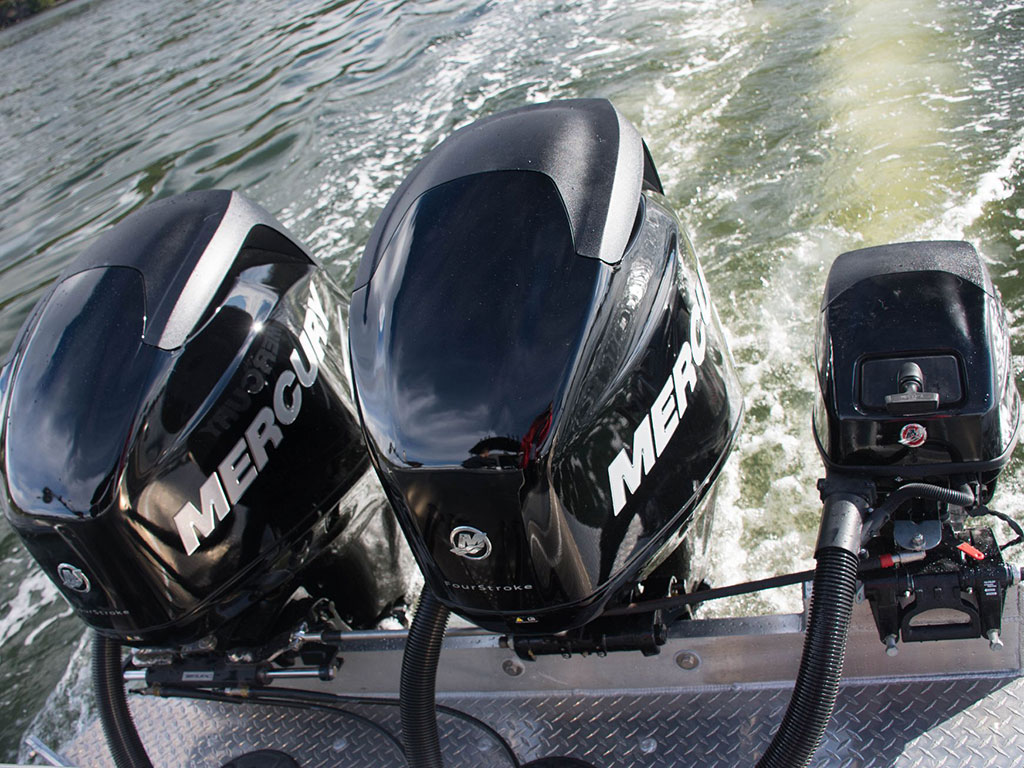

1 x External motor bracket for twin 30″ engines with auxiliary mount and full-width transom
1 x Fish box in rear gunnel with cutting board
1 x Flotation – closed cell polyurethane spray foam under decks & gunnels
2 x Footrests on forward bulkhead (fixed/welded)

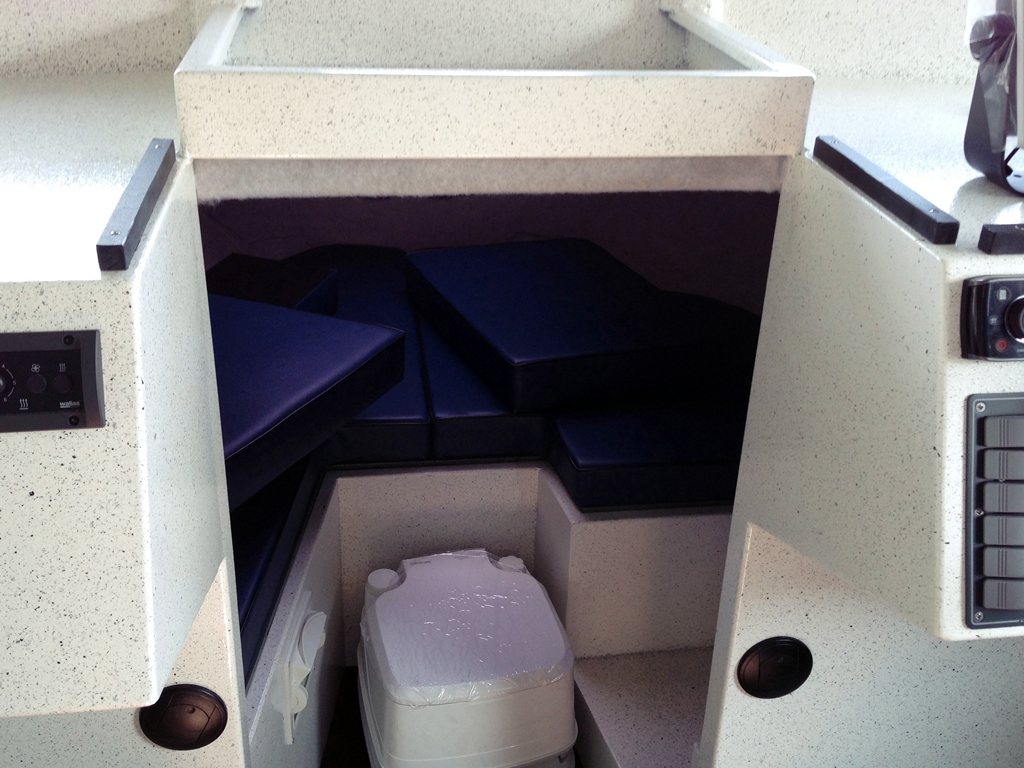

1 x Fully insulated, framed and panelled vee berth bunk, with 3″ vinyl upholstered cushions
1 x Fuel tank (85 Imp Gal/102 US Gal) w/ fuel gauge – built in under deck
1 x Fully welded self-bailing aluminum cockpit deck with inspection hatches for fuel connections and wire ways
1 x Glove box
1 x Heavy duty custom hull graphic
1 x Horn – twin compact (stainless steel)
1 x Keel guard on hull bottom (beaching wear strip)
1 x Navigation lights (LED)
1 x Non-skid paint on bow and main deck
1 x Non-skid paint on gunnels
1 x Raised foredeck (bow) for increased head room in cuddy compartment
2 x Side stiffeners (per side)
1 x Side storage trays – in cabin & cockpit
1 x Steering for twin engine, single station – hydraulic
2 x Storage bench seats (vented) with vinyl upholstery & backrests
1 x Storage compartments in cuddy side panels
2 x Swivel Seats – Barry Marine vinyl upholstered (lg) on shock absorbing Back Saver pedestals
1 x Under deck large storage compartment with hinged door in cabin

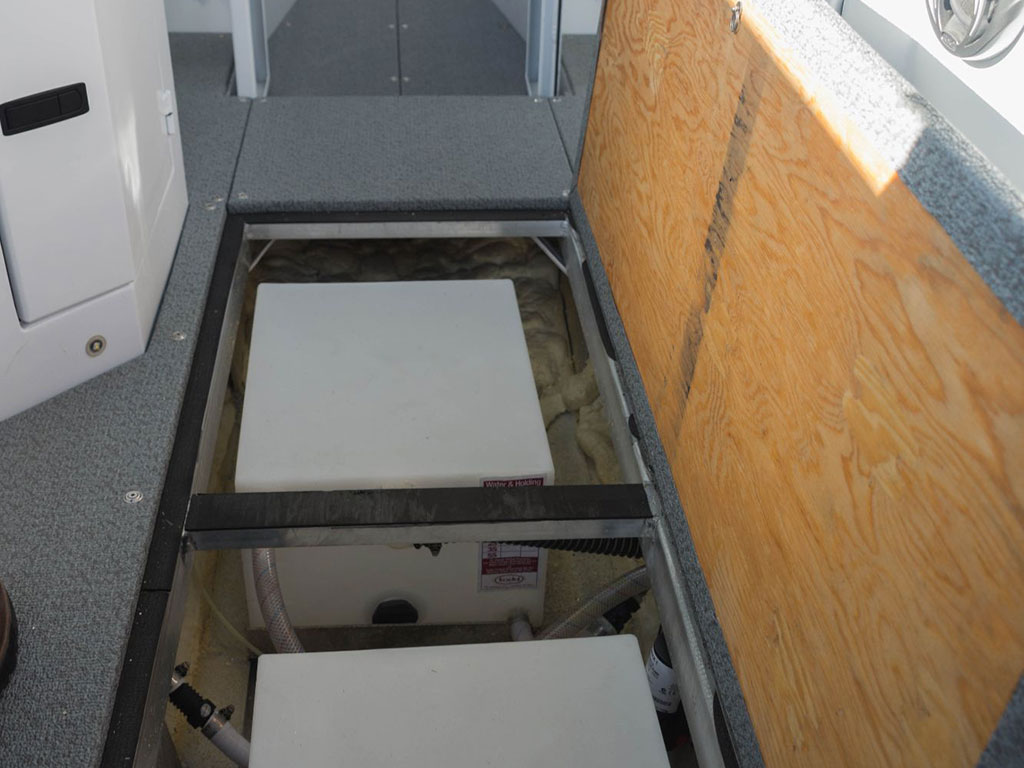

1 x Under deck storage compartment in cockpit deck
3 x Welded bow & transom eyes with stainless steel inserts

26′ Cuddy Cabin – Swiftsure Standard Specification

Capacity (People): 6

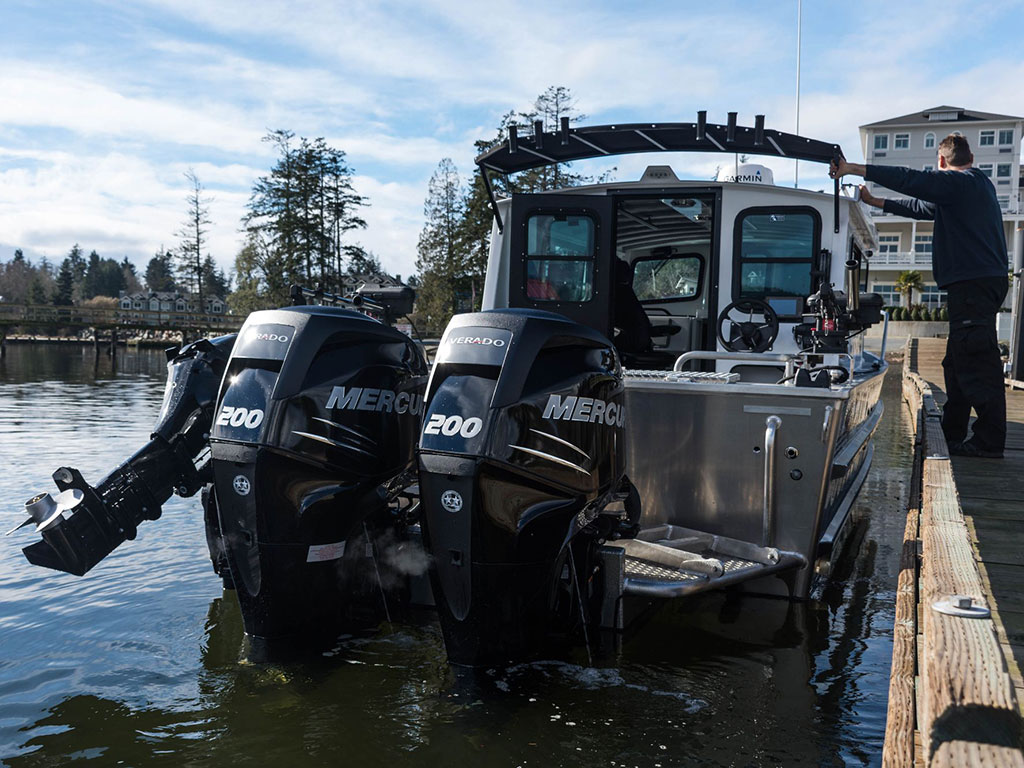

Horsepower Minimum: 225 Twin

Cabin Size: 98" x 84" x 77"

Beam: 8'-6"

Freeboard: 40"

Dead Rise: 20°

Bottom Width: 8'-0"

Hull Weight: 3,800 lbs

Bottom Plate: 1/4" 5086

Side Plate: 3/16" 5086

Fuel Tank: 85 Imp GAL

Tow Weight: 7,700 lbs

Aft Deck Size: 86 3/16" x 77 3/4"

Make It Yours - Available Customization Options

Exterior
Interior
Nav & Electronics
Fishing
Power
Docking
Technical
Delivery

Cabin
Aluminum folding steps	(2) Folding steps to access cabin top
Cabin extension	1'-0" cabin extension with glass & upholstery
Cabin top brackets	Cabin top brackets for traps/kayaks
Cabin top extension	Addition of an 18" overhang extension

Windows And Doors
Wiper options	Various options and upgrades include: heavy duty wiper with self-parking and switch, manual wipers, windshield washer system, and pantographic wipers.
Heavy duty aluminum-framed window
Solar film on front windows
Sliding door	Sliding door on aft cabin (upgraded from a hinged door)
Vee berth aluminum door	2-piece locking aluminum door to vee berth
Transom exit door

Canvas
Awning	Aluminum-framed canvas covered 48" overhang

Electrical
Horn (stainless steel) options	Stainless steel single, twin or trumpet horn installation/upgrades available

Lighting
Cockpit lighting	LED light in welded housing
Transom light	Small flush mount (LED) light installed on transom
Spotlight and mount
Docking lights	x2 LED docking lights

Paint And Finish
Bottom paint	Trilux II bottom paint available on all models
Clear coat protection
Boat name decal	Available on sides (2) of all boat models. Also available: boat name and place decal on transom
Zolatone paint with clear coat	Zolatone paint on the interior and/or exterior of cabin, soft top & cockpits. Available on all boat models.

Deck Washdown
Deck wash down pump

Safety
First aid kit
Fire extinguisher	Various makes and models available
Boat hook	Telescopic 8'-0 boat hook
Life jacket	Various sizes and models available
Flares
Life ring and holder	30" life ring with 50' line & holder
Small vessel safety kit
Throw line

Cabin
Closet	Closet with a welded aluminum door
Cabin vent

Galley
Refrigerator	Various models and sizes available

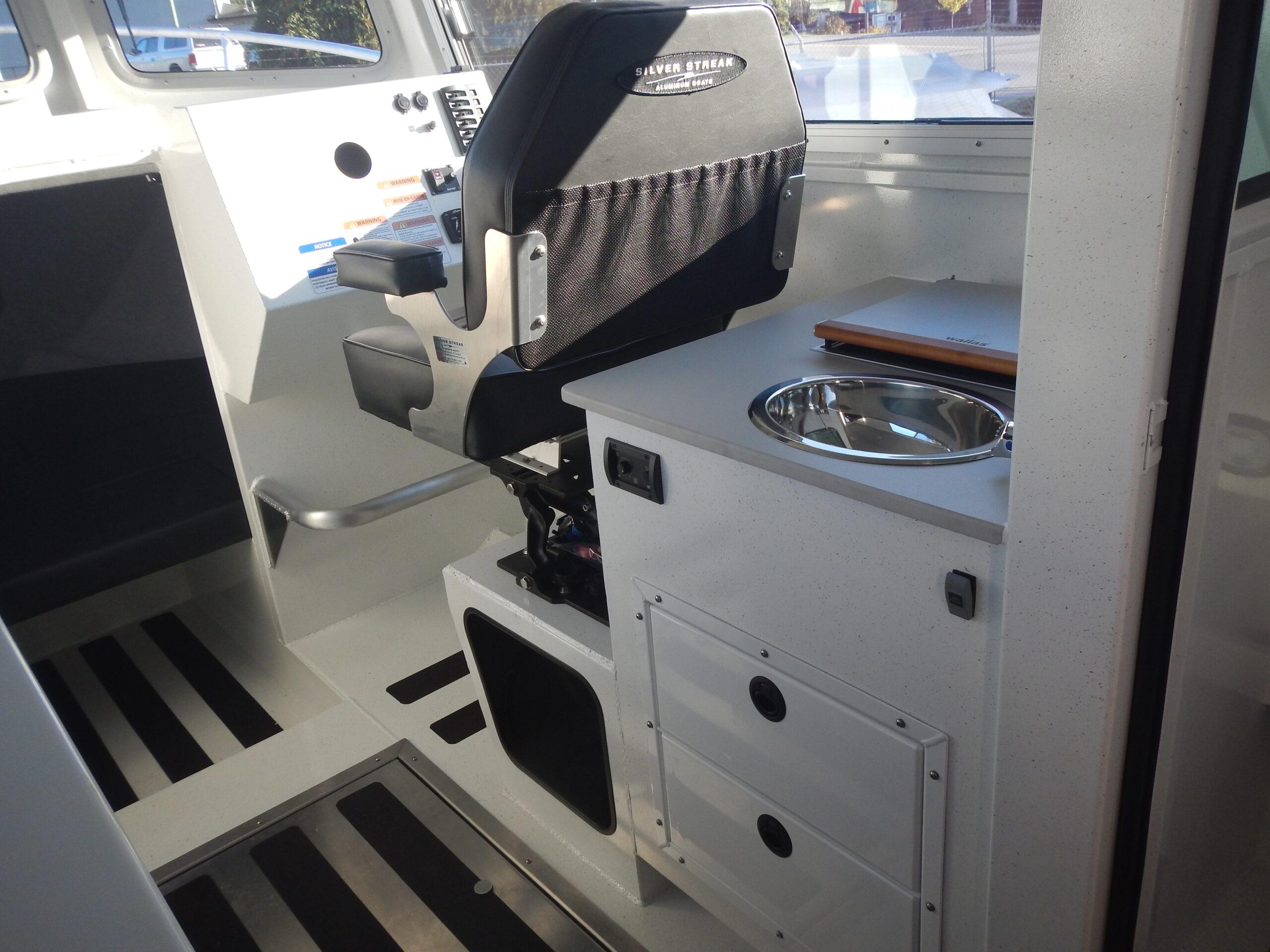

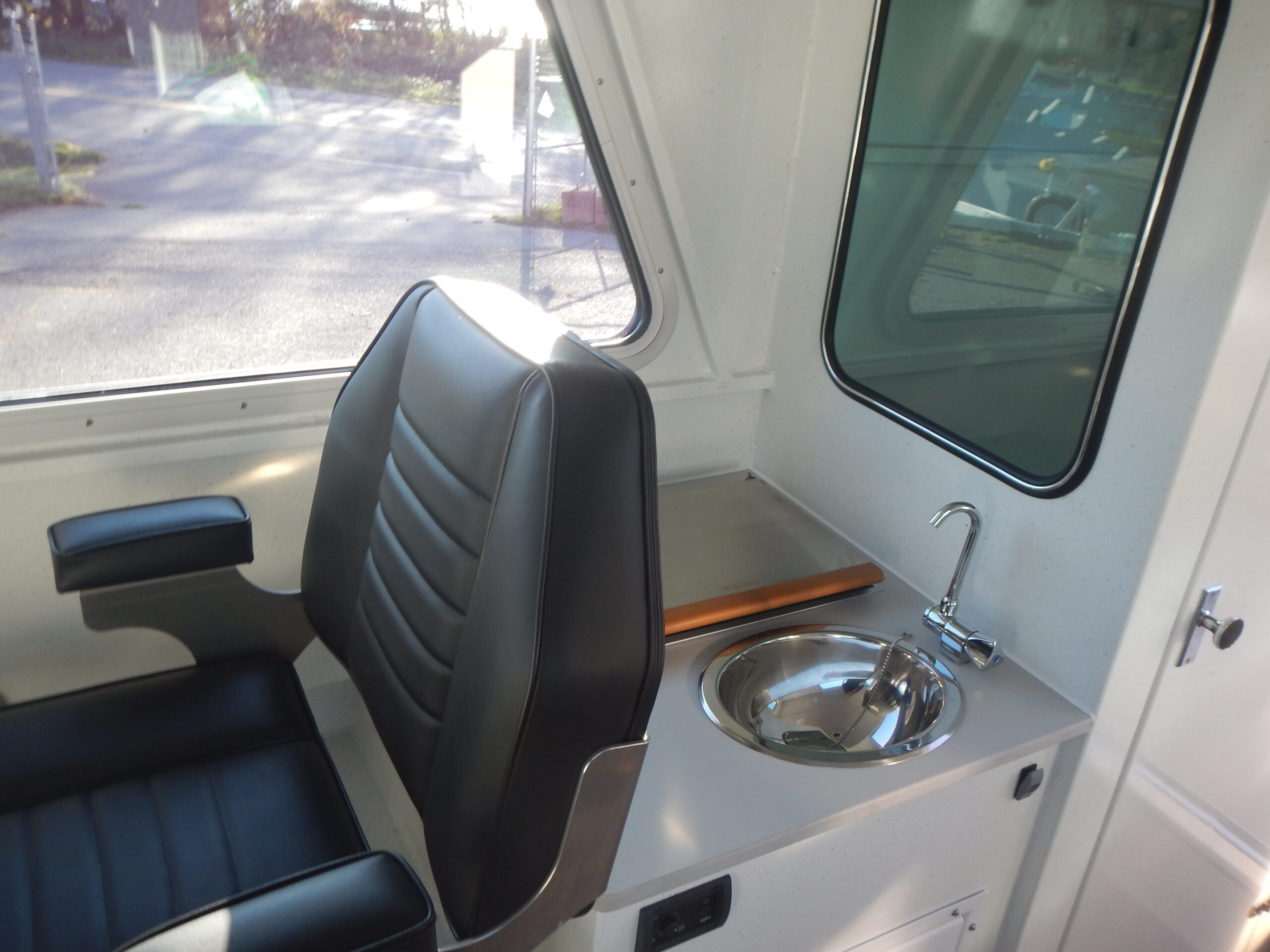

Sinks	Manual and electric options available

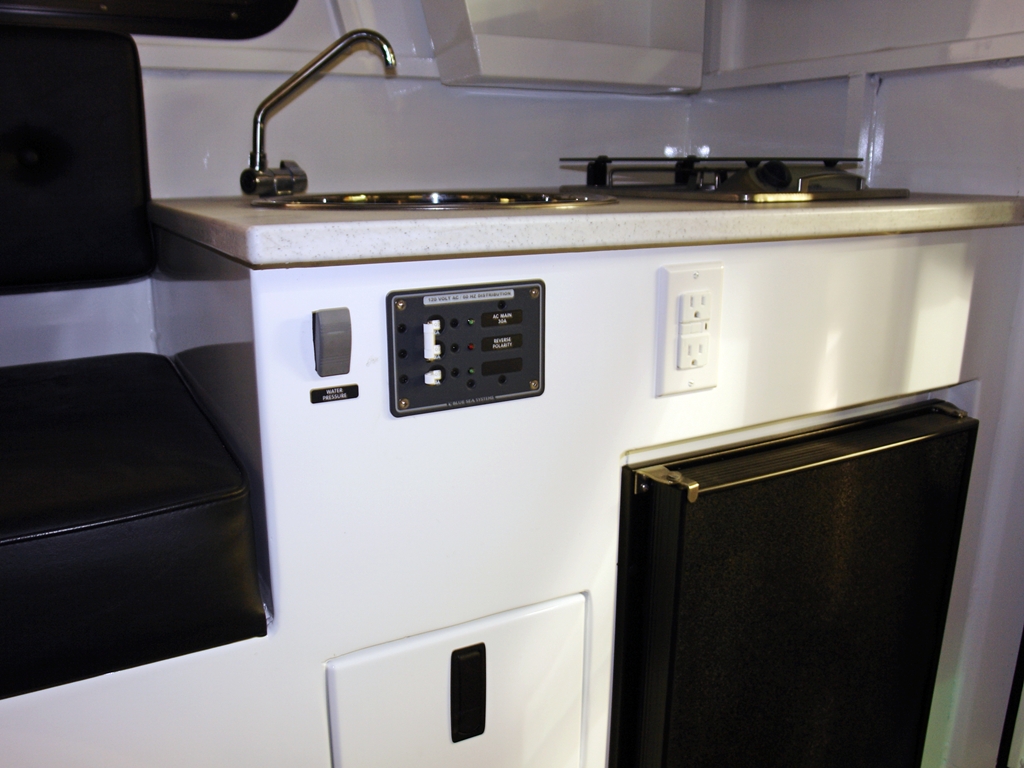

Galley	Galley with powder-coated aluminum cabinet with cupboards, drawers, shelf, counter-top & side table. compact or regular sized galleys available
Seat or table socket	Additional flush mount seat or table socket

Settee

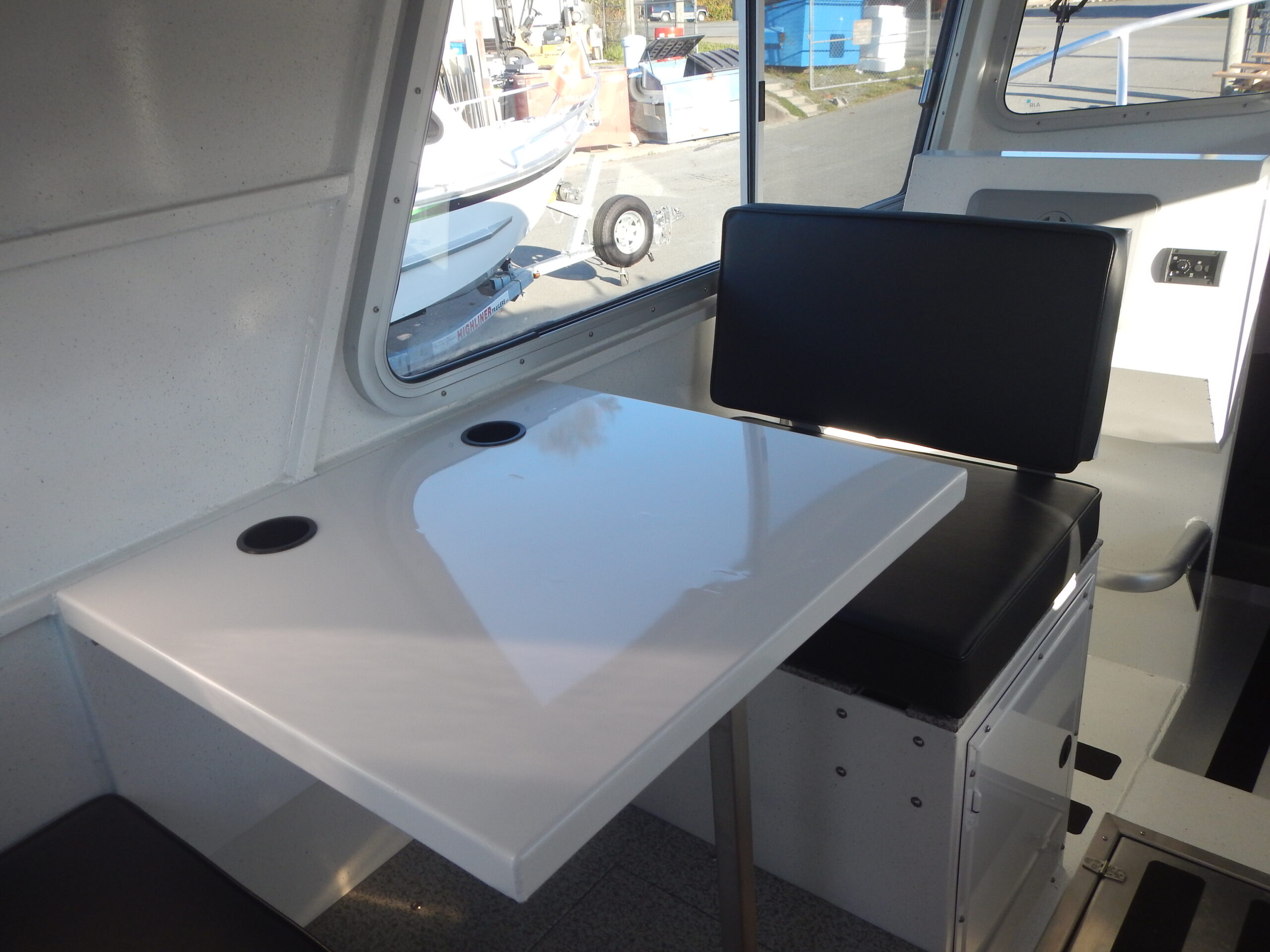

Table	Table on single pedestal with flush pedestal socket (or removable quick release option also available)
Settee upgrade	Settee upgrades available: - extend dinette width for double bunk. - reversible backrest on forward dinette seat.

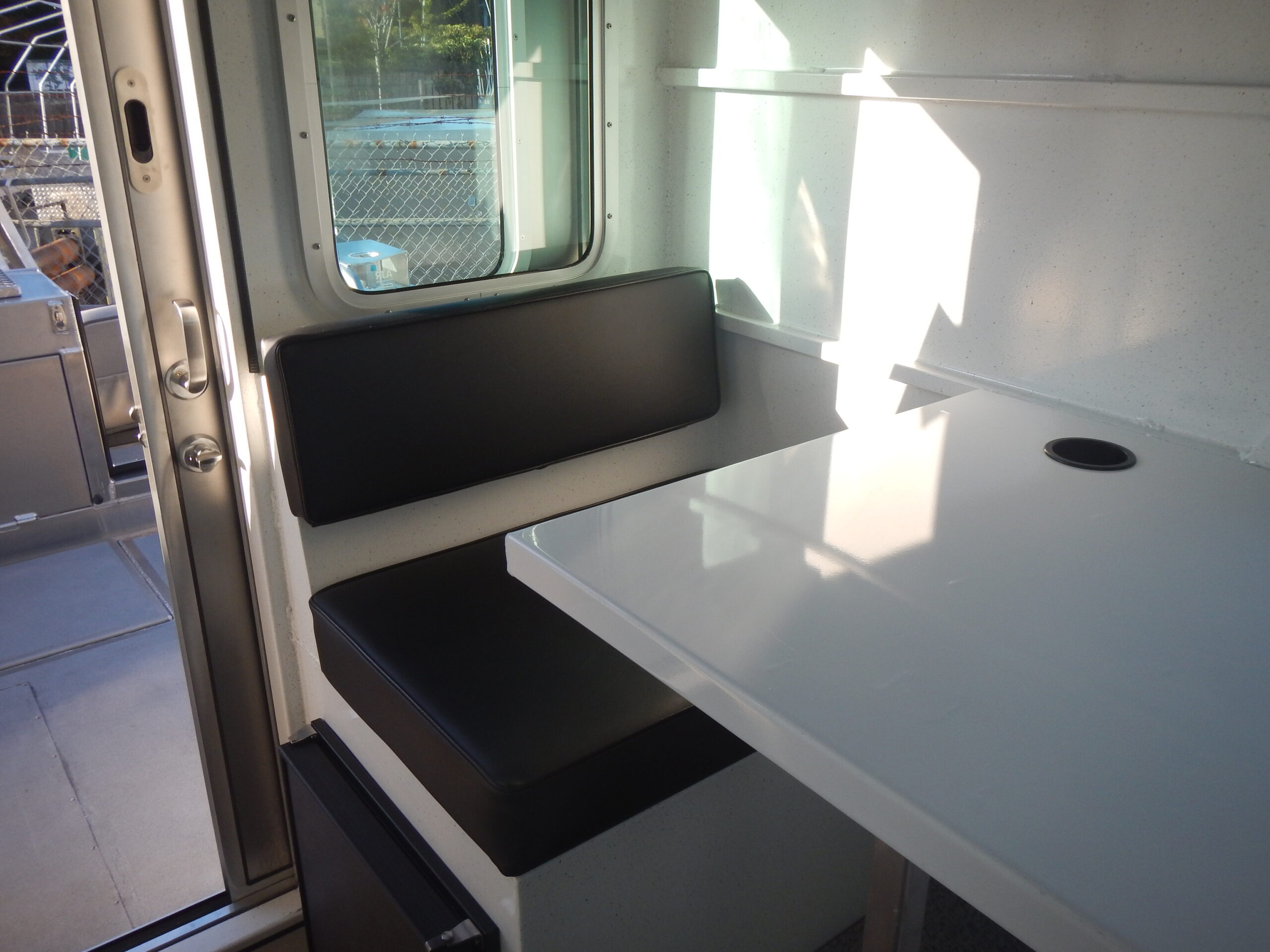

Settee	2 or 4-person settee, with drop down table, storage cupboards & vinyl upholstered seating including backrest cushions

Headliner

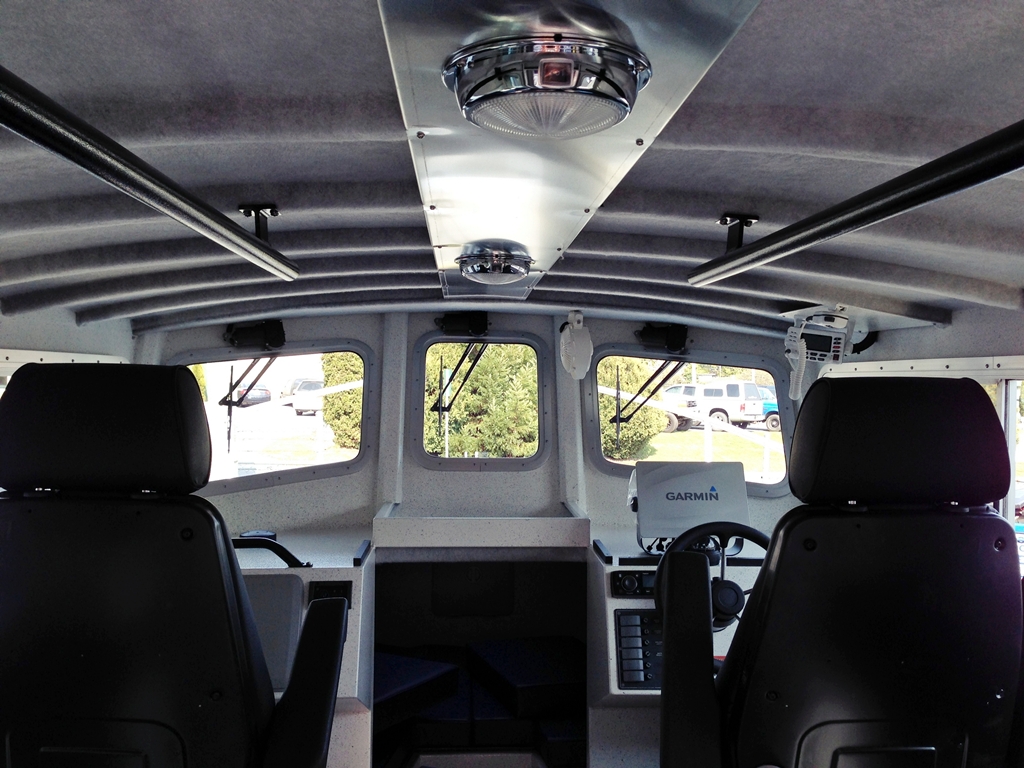

Headliner velour	Cabin top velour headliner

Head And Shower
Curtains in head
Non-skid paint in head
Hot water	6 GAL hot water tank for domestic hot water
Marine head	Electric or manual options available

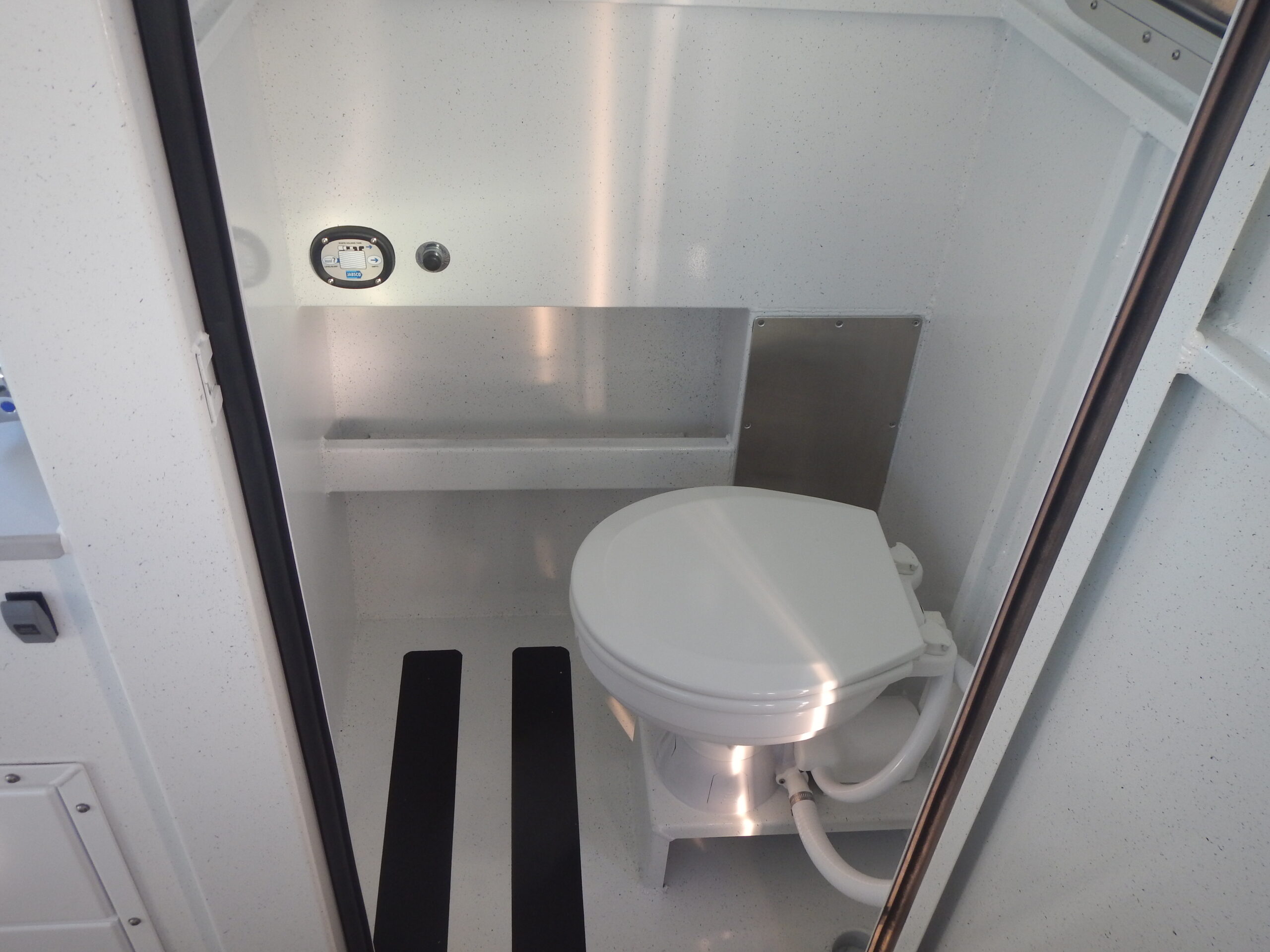

Head compartment	Stand-up head compartment with exterior vent, door & latch
Head options	Available options: - Shelf in head compartment - Shower head - hot /cold flush with drain sump including pump - Sink in head - electric or manual taps including pump
Hot water holding tank	10 GAL with 3-way valve, deck clean-out and mascerator pump *required in US only
Porta potty	Compact manual toilet

Heaters
Diesel tank storage box	Storage box below aft helm (aluminum) for diesel tank. Also available as a storage box/foot rest with lid in front of helm seat for bus heater

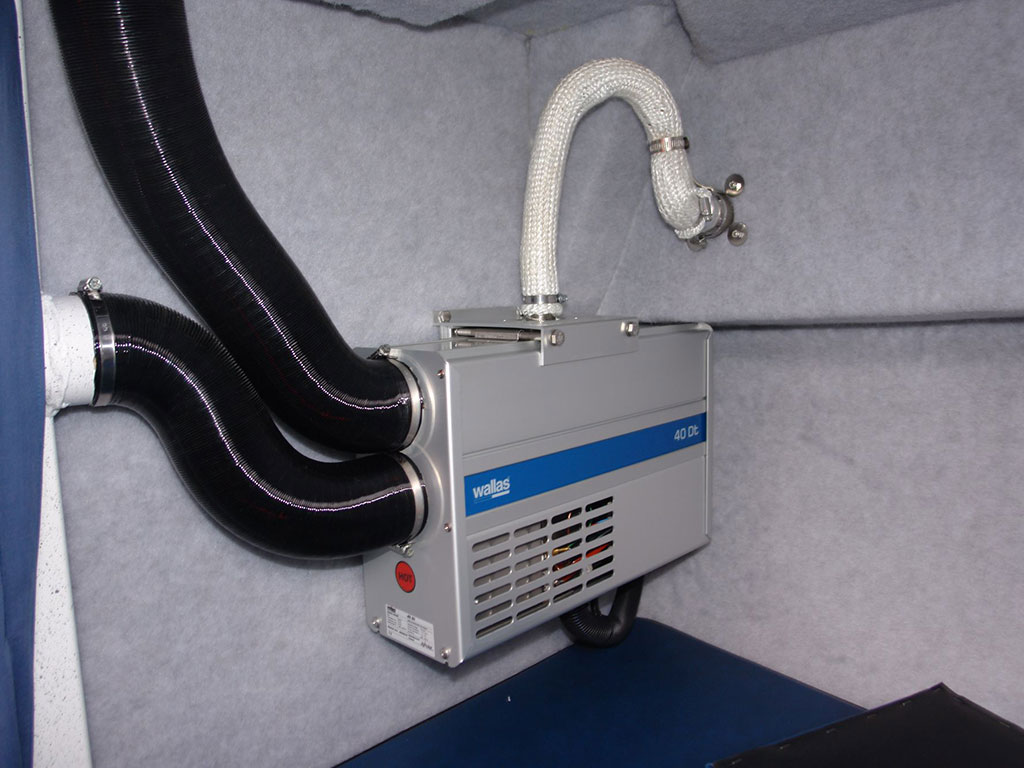

Hydronic heater/hot water - diesel hydronic coolant heater	Hydronic heater/hot water with (2) blowers and diesel tank
Diesel heater	Various diesel heater options available

Electrical
12 V Power socket	Includes USB port and LED light
Breaker panel upgrade	Added options and/or upgrades available
Electric fan

Lighting
Red & white dome style light in cabin, vee berth or head
Passage way lights - low level LED's

Seating
Armrests
Seat slide
Jump seat	Side mount jump seat

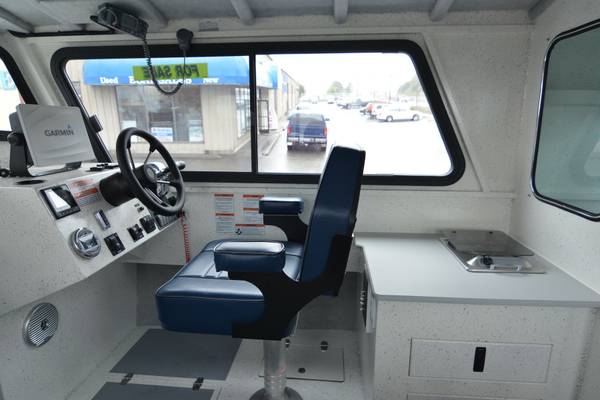

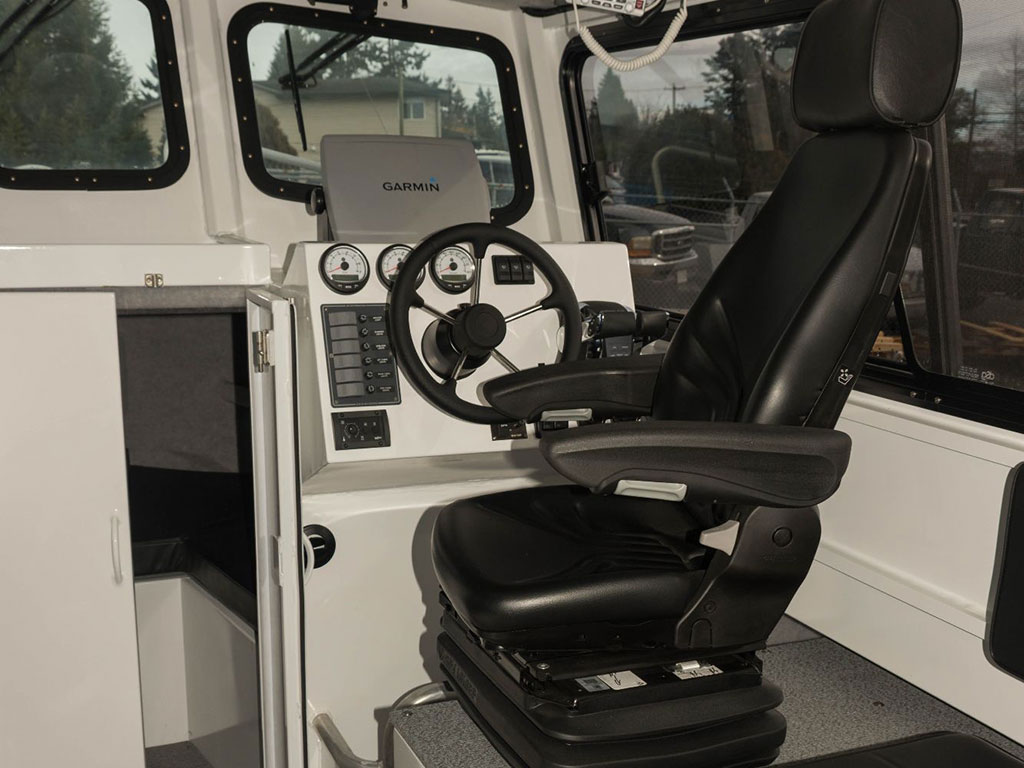

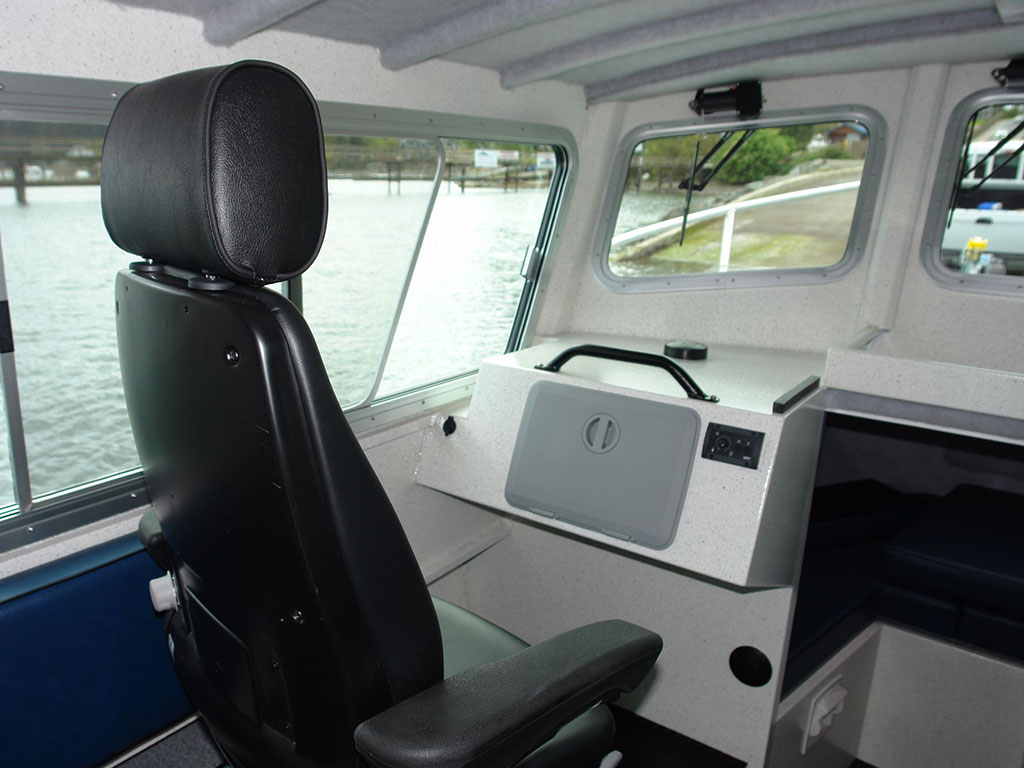

Grammer suspension helm seat	Suspension helm seat with high back, arm rests & swivel

Electronics
Garmin GPSMap
Garmin echoMAP	Various Garmin echoMAP options available
Compass

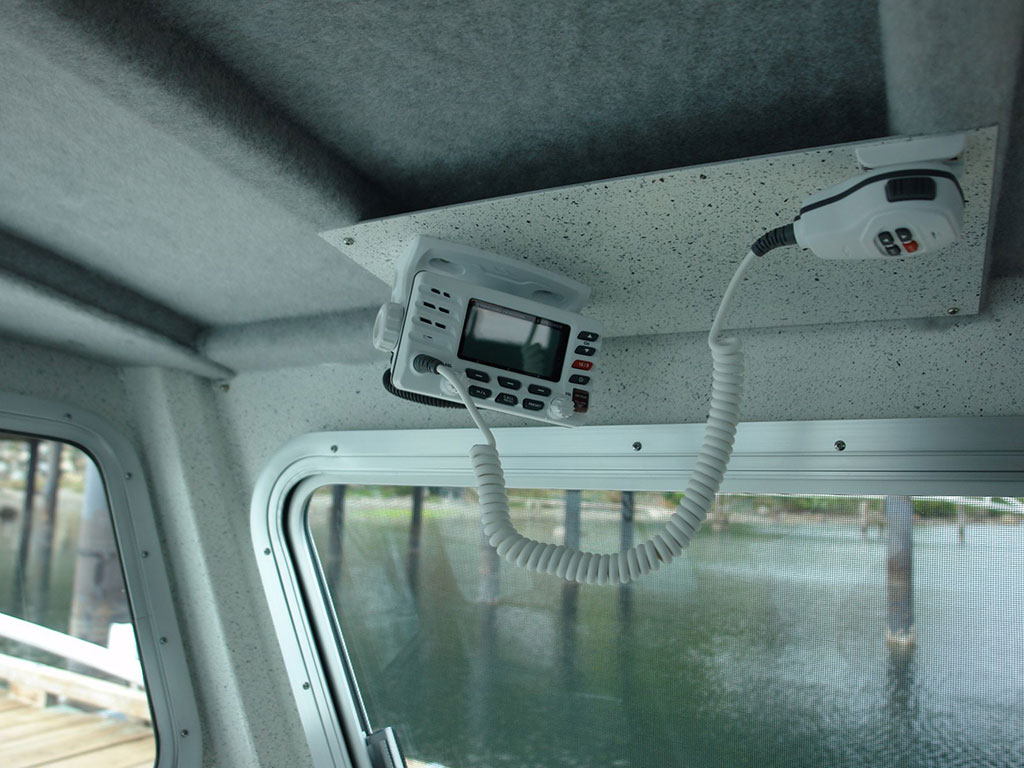

VHF radio	Various models available, both handheld and fixed-mount.
Garmin map chip	Available for various locations
Garmin radar
Additional speakers	Additional speakers in cockpit or cabin
Stereo and speakers
Horn (stainless steel) options	Stainless steel single, twin or trumpet horn installation/upgrades available

Lighting
Spotlight and mount
Docking lights	x2 LED docking lights

Breaker Panel
Breaker panel upgrade	Added options and/or upgrades available

Safety
Flares

Downriggers
Downrigger cannon ball holders
Scotty accessories	Available options: - electric receptacles - powerlock rod holder - swivel mount
Scotty downrigger	Scotty depthpower 30" or 60", includes swivel, cannonball holders & plug wiring

Crab Pot Pullers
Crab pot puller	Ace Line Hauler crab pot puller (100 lb), mounted with power plug, or supply only

Rob And Net Holders
Net holder - welded
Rod holders welded on bow railings
Rod holder - 2 sets of 3 welded holders bolted to cabin top sides
Rod storage
Rocket launcher rod holder

Fish Box Liners

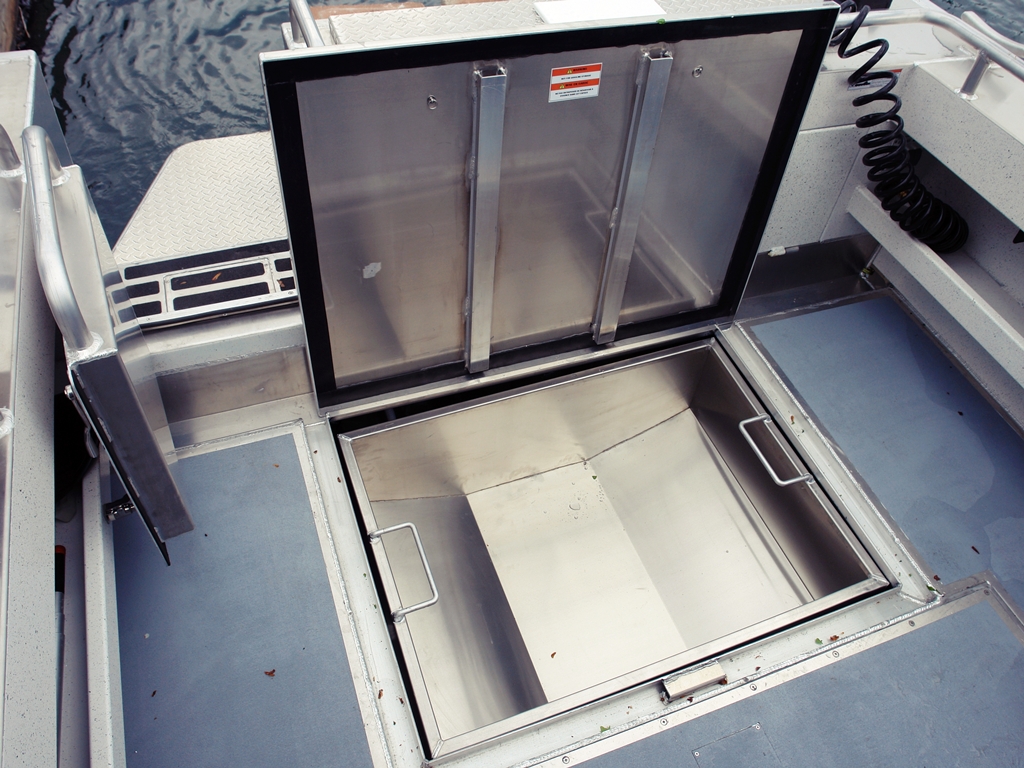

Fish box liner	Fish box liner for under deck storage compartment

Steering
Auxiliary motor steering	Hydraulic steering with diverter valves on second station console
Steering upgrades	Available steering options: - Tilt steering- upgrade - Flush mount kit for rear steering station
Dual engine	Available options: -dual engine, single station -dual engine, dual station

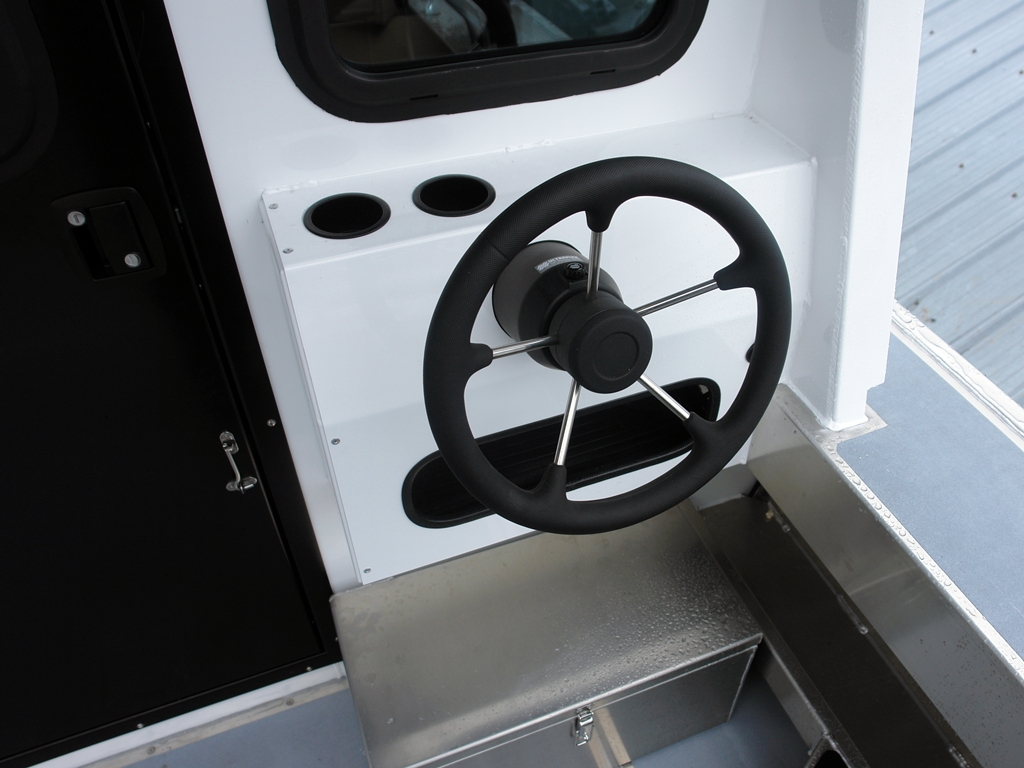

Dual station	Available options: - single engine, dual station - dual engine, dual station
Dual station steering console

Dashboard Electrical
12 V Power socket	Includes USB port and LED light
Bilge blower	Provides efficient ventilation for bilges, engine compartments, galleys and heads

Propellers
Propellor guard	Available in stainless steel or aluminum
Propellor	Stainless steel and aluminum models available

Bow Thrusters
Vetus bow thruster	Propulsion device mounted to the bow for increased maneuverability

Seating
Grammer suspension helm seat	Suspension helm seat with high back, arm rests & swivel

Anchors
Anchor	Windlass or non-Windlass anchors available in various sizes, from light to heavy duty
Anchor roller - upgrade	Various sizes and options available

Cleats
Aluminum welded cleat	Cleats available in 8" and 9" sizes
Flush mounted cleat	Cleat - flush mount (tie-down)

Fenders
Polyform fender

Shore Power
A/C Receptacles	Additional A/C receptacles
Galvanic isolator
Shore power package	Shore power with 50 ft. 30A cord, AC panel & 110V receptacle
Battery charger	Dual bank waterproof onboard charger

Lighting
Docking lights	x2 LED docking lights
Spotlight and mount

Docking
Samson dock lines

Deck
Side steps	Available options: - 2 fixed/welded to rod tray (side gunnel) - removable on rod tray (side gunnel)
Storage compartment under deck	Storage compartment under deck with baffle (2)

Grab Rails
Transom handrails	Handrails on transom, with downrigger mounts & cup holders
Bow rails	Various sizes and configurations available
Handrails	Available options: -Overhead grab rails in cabin -Handrails on bow -Handrails on cabin top -3`-0`` handrails -Handrails on cuddy

Ladders
Swim ladder	Folding swim ladder with grab handle on transom
Ladder	Available options: - Heavy duty stern mounted dive ladder (open rung) - Stainless steel telescoping under transom 3 rung (cable steering option) - Powder coated
Cabin top ladder	Ladder to cabin top

Tow Posts
Tow post	A number of options are available, including light to heavy duty and welded/fixed or removable.

Radar Arches
Radar post	Radar post with antenna wings, available in large or small sizes
Radar arch	Radar arch on cabin top with mounting plates for electronics Available options: - removable radar arch - powder coated radar arch

Bilge Pumps
Automatic bilge pump upgrade	Upgrades available in 1250 GPH, 1500 GPH, 2000 GPH
Bilge blower	Provides efficient ventilation for bilges, engine compartments, galleys and heads

Fuel Tank
Fuel tank (standard) increase size/per GAL

Hull
Transom exit door
External motor bracket - upgrade	Includes auxiliary motor mount and twin engine fuel upgrade (filter, vents, pick up)

Licensing
Pleasure craft license	Pleasure craft license. Includes (2) number decals. Canada ONLY.
Commercial application	Available Options: - Commercial application TP1332 Class B - Commercial application TP1332 Class C - Commercial application TP1332 Class D

Trailers
Trailer	Highliner and Roadrunner trailers available for all boats: - Single axle - Dual axle - Galvanized - With and without drum brakes - 800lb to 10,000lb capacity
