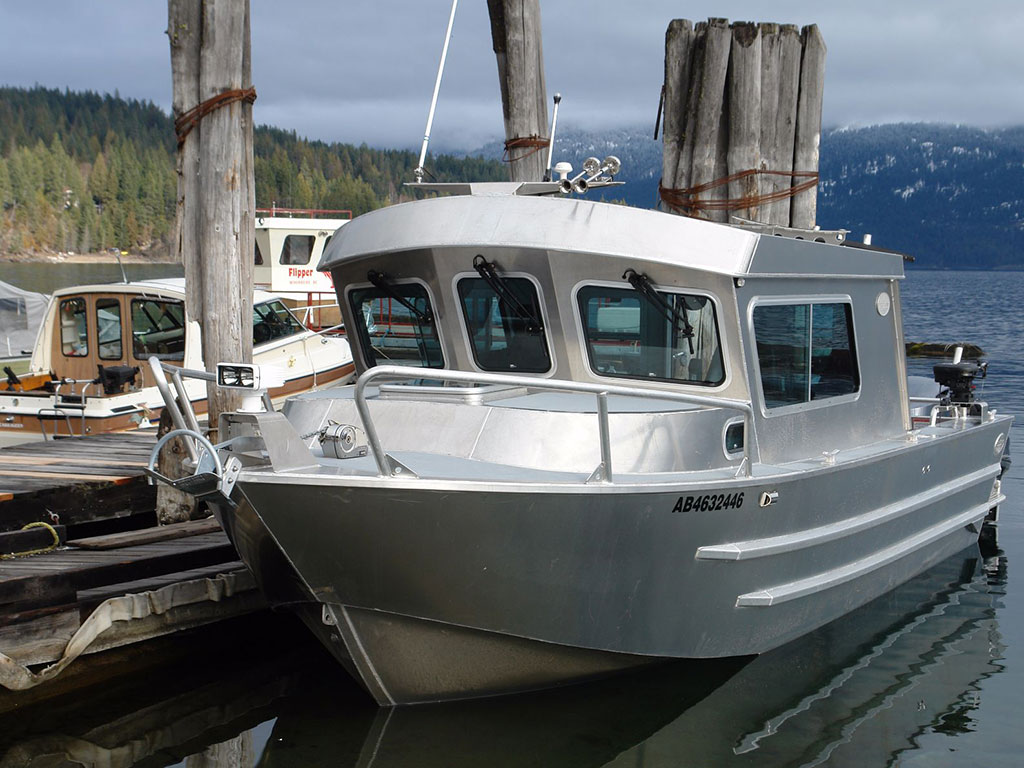

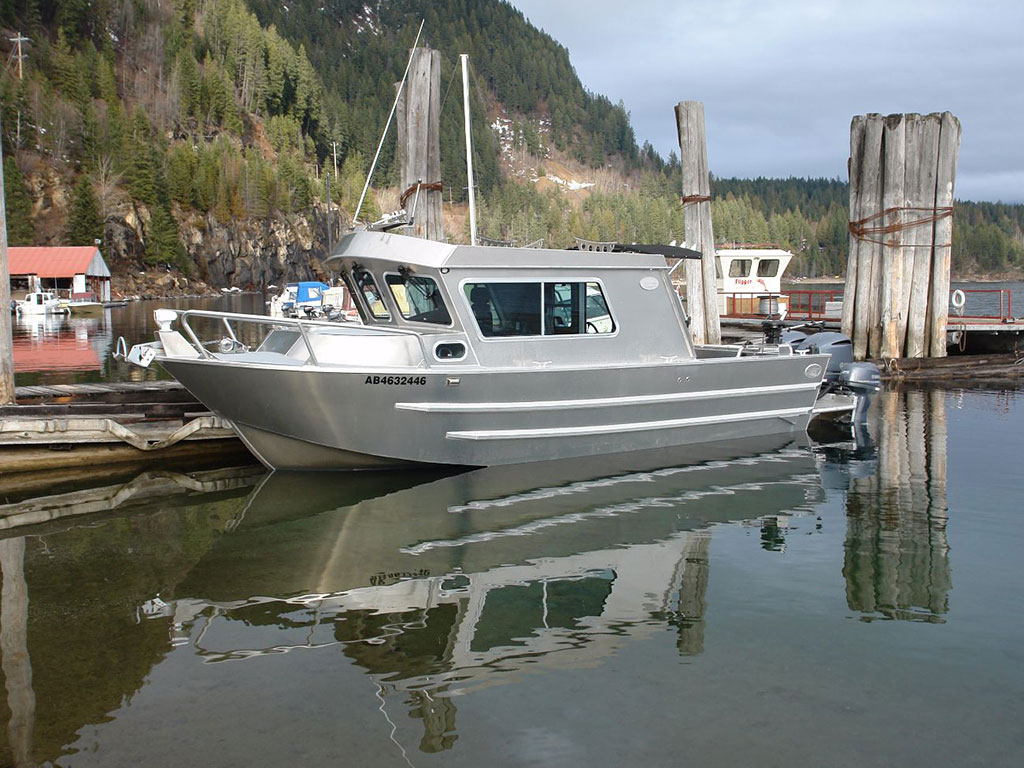

25′ Cuddy Cabin – Swiftsure XW All Welded Aluminum Boat

About This Boat

The Swiftsure model is the first of the 3D modeled and CNC cut vessels implemented by Silver Streak Boats. Built for rough water, with an even deeper vee than Silver Streak’s standard Swiftsure, the XW (extra wide) edition is the smoothest riding vessel that we build! Insulated for sound dampening and warmth, a 9’-6” beam, and an extra foot of width in the cabin, all contribute to making this boat a perfect choice for families. With the addition of a galley, dinette and head, this basic and functional boat can also be the perfect island hopping vessel!

This Boat Is Ideal For ...

Cod

Crabbing

Cruising

Exploring

Family Time

Fishing

Fresh Water

Halibut

Lake

Multipurpose

Ocean

Prawning

Salmon

Tuna

Standard Features List

  • 1 x Fully welded stand-up cabin including solid bulkhead with (1) hinged door, 3-piece forward leaning aluminum-framed windshield, (2) sliding side windows with flyscreens, (3) fixed rubber-framed bulkhead windows & (2) cuddy windows
  • 1 x 12 V power socket with USB port & LED light
  • 1 x 6-way fused switch panel on dashboard
  • 5 x 9″ welded aluminum cleats
  • 1 x Aluminum deck in main cabin with storage hatch(es)
  • 1 x Battery – dual SRM 27 batteries including wiring, breaker, 4-way selector switch & boxes
  • 1 x Bilge pump – 1600 GPH bilge pump – auto on/off
  • 1 x Bow railing – 18″ with opening at front
  • 1 x Brackets for transducer and anode (1), plus weld-on teardrop anodes (2) under hull
  • 2 x Cabin lights (interior)
  • 1 x Chain locker – self draining with heavy duty, stainless steel anchor roller. Insulated for noise reduction
  • 1 x Chines & gunnels fully welded

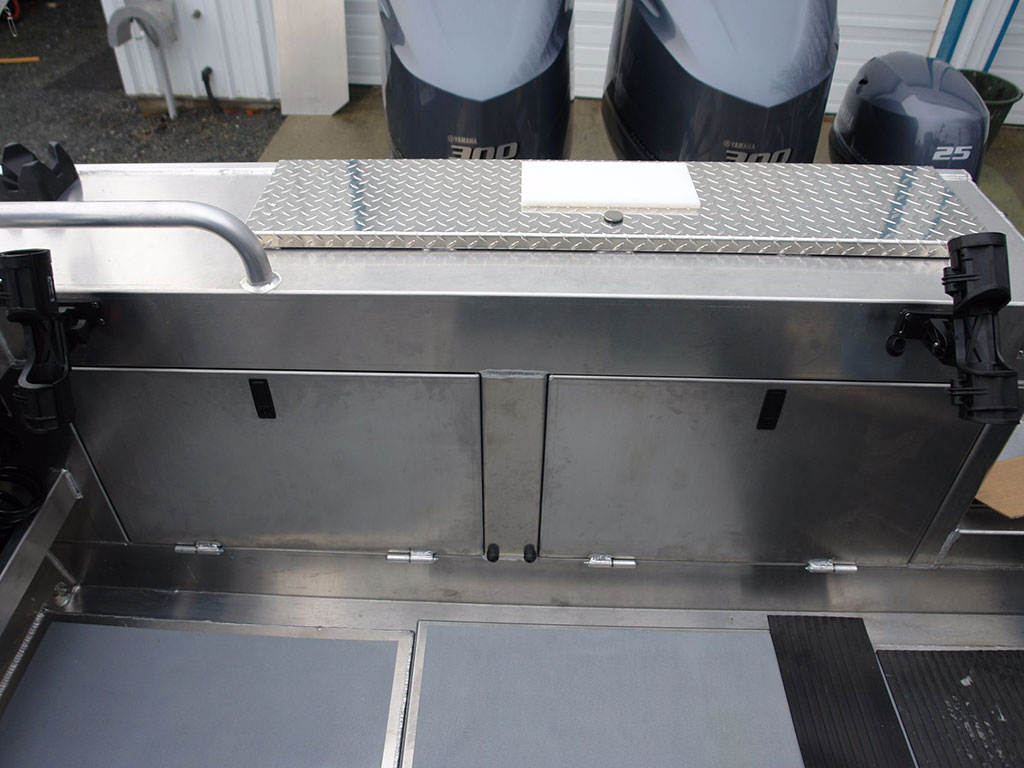

  • 1 x Closing storage in transom (locking battery compartment)
  • 2 x Cup holders
  • 3 x Drain plugs
  • 1 x Electric trim tab set (18″W x 12″L)
  • 3 x Electric wipers – heavy-duty with self-park & switch
  • 1 x Electrical panel canvas cover (in forward compartment)
  • 1 x Emergency escape hatch with flyscreen in forward compartment

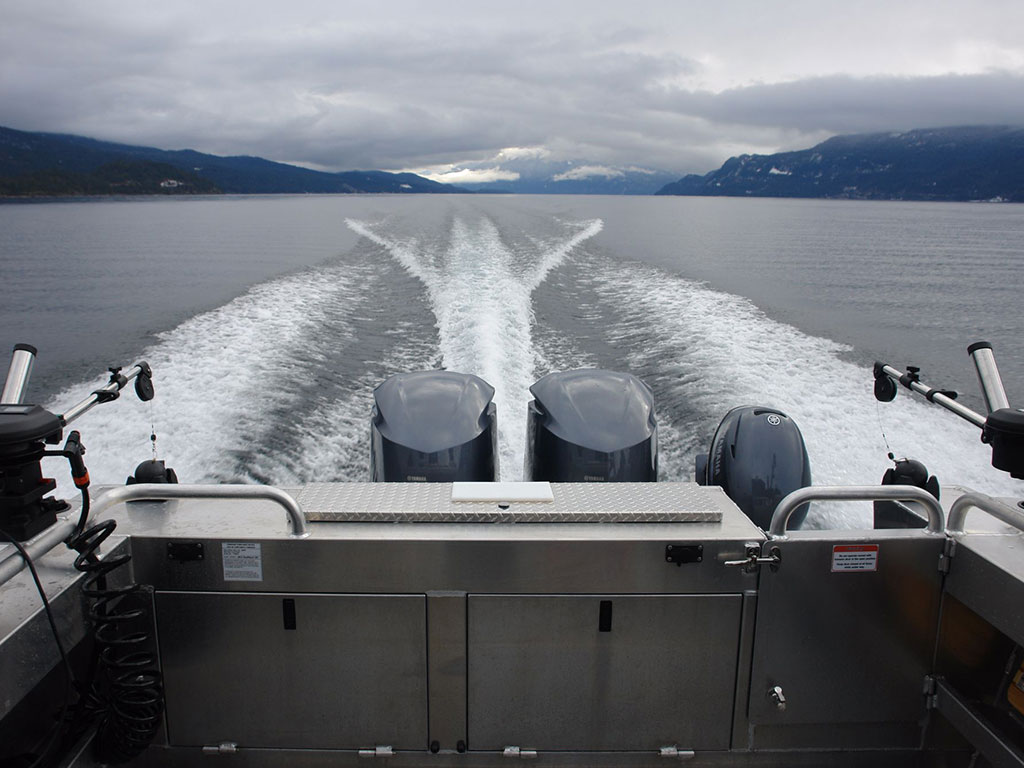

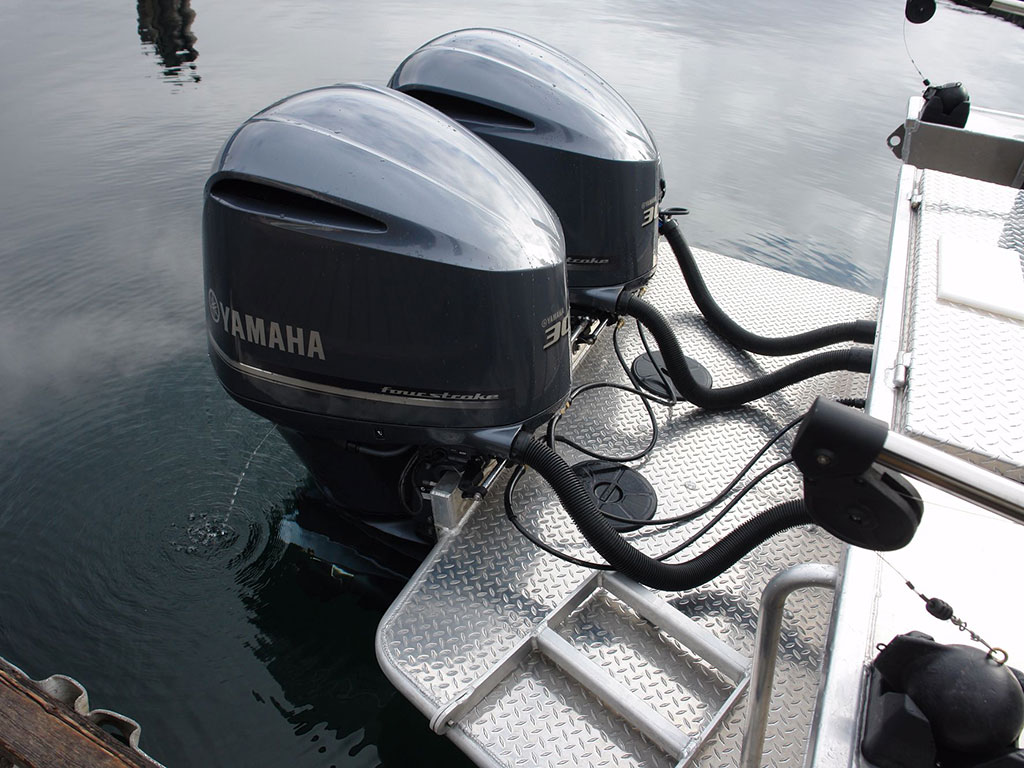

  • 1 x External motor bracket for twin 30″ engines with auxiliary mount and full-width transom
  • 1 x Fish box in rear gunnel with cutting board
  • 1 x Flotation – closed cell polyurethane spray foam under decks & gunnels
  • 1 x Foot rest on forward bulkhead (fixed/welded)
  • 1 x Fuel tank (100 Imp Gal/120 US Gal) w/ fuel gauge – built in under deck

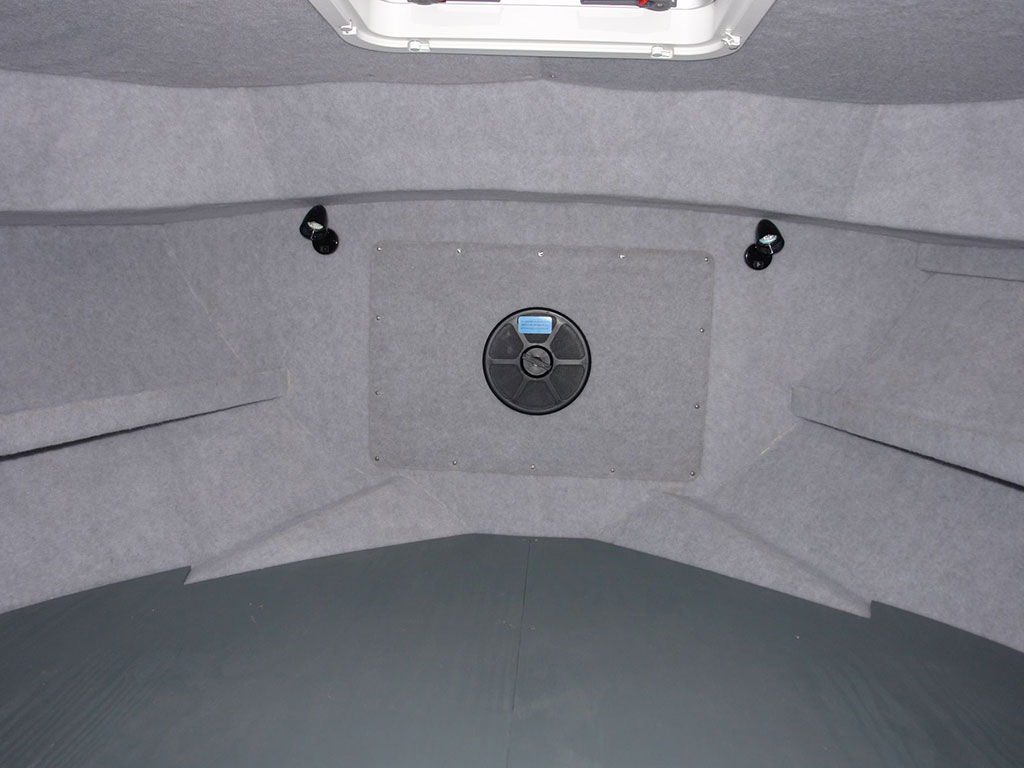

  • 1 x Fully insulated, framed and panelled vee berth bunk, with 3″ vinyl upholstered cushions
  • 1 x Fully welded self-bailing aluminum cockpit deck with inspection hatches for fuel connections and wire ways
  • 1 x Glove box
  • 1 x Heavy duty custom hull graphic
  • 1 x Horn – twin compact (stainless steel)
  • 1 x Keel guard on hull bottom (beaching wear strip)
  • 1 x Navigation lights (LED)
  • 1 x Non-skid paint on bow and main deck
  • 1 x Non-skid paint on gunnels
  • 1 x Raised foredeck (bow) for increased head clearance in vee berth
  • 2 x Side stiffeners (per side)
  • 1 x Side storage trays – in cabin & cockpit
  • 1 x Steering for twin engine, single station – hydraulic

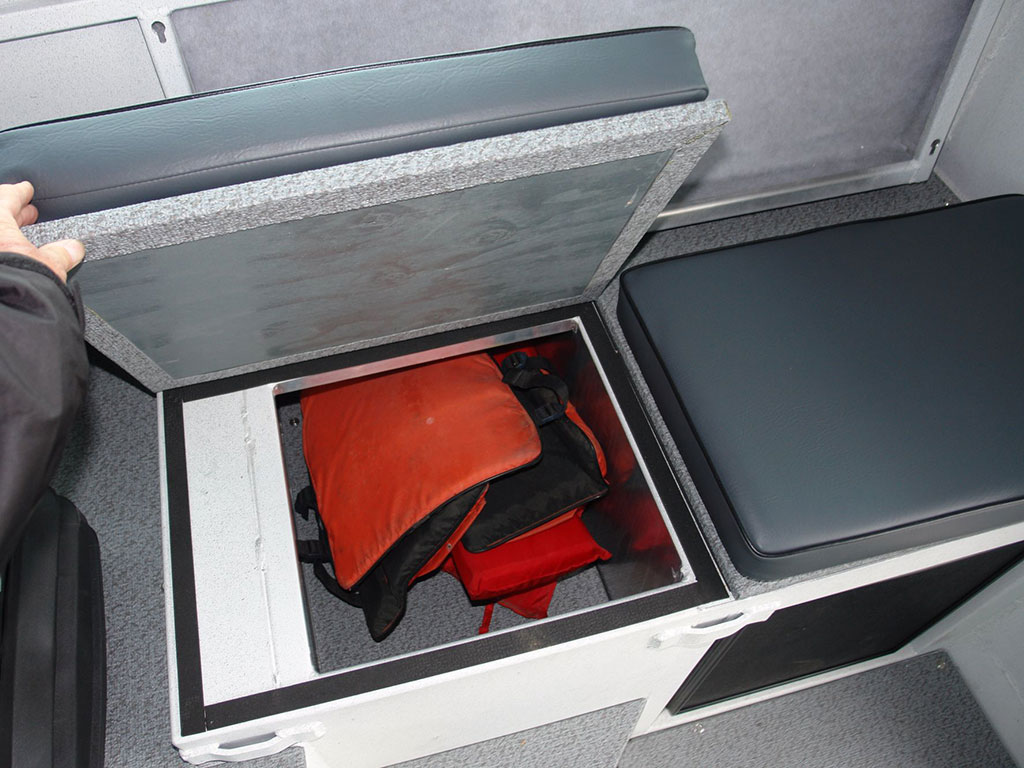

  • 2 x Storage bench seats (vented) with vinyl upholstery & backrests
  • 1 x Storage compartments in cuddy side panels
  • 2 x Swivel Seats – Barry Marine vinyl upholstered (lg) on shock absorbing Back Saver pedestals
  • 1 x Under deck storage compartment in cockpit deck
  • 1 x Under deck large storage compartment with hinged door in cabin
  • 3 x Welded bow & transom eyes with stainless steel inserts

25′ Cuddy Cabin – Swiftsure XW Standard Specification

Capacity (People): 6

Horsepower Minimum: 225 Twin

Cabin Size: 96" x 102" x 80"

Beam: 9'-6"

Freeboard: 43"

Dead Rise: 22°

Bottom Width: 8'-8"

Hull Weight: 3,600 lbs

Bottom Plate: 1/4" 5086

Side Plate: 3/16" 5086

Fuel Tank: 100 Imp GAL

Tow Weight: 9,414 lbs

Aft Deck Size: 78 13/16" x 88 3/4"

Make It Yours - Available Customization Options

Cabin
Aluminum folding steps

(2) Folding steps to access cabin top

Cabin extension

1' to 3' cabin extensions with glass & upholstery

Cabin top brackets

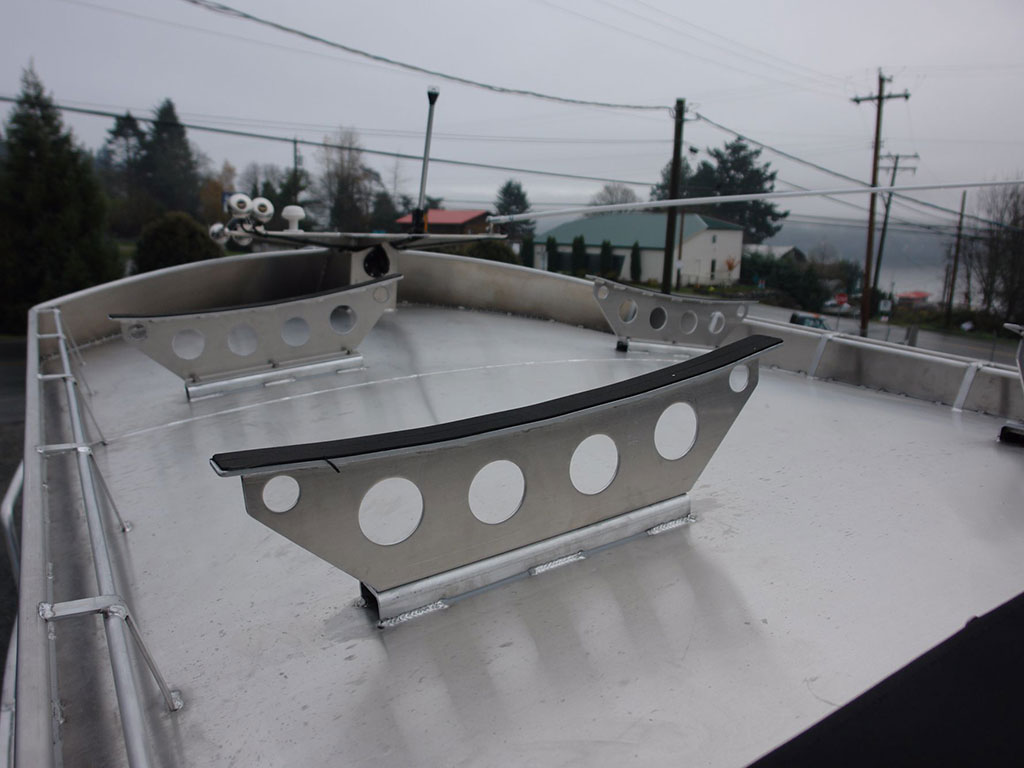

Cabin top brackets for traps/kayaks

Cabin top extension

Addition of an 18" overhang extension

Windows And Doors
Wiper options

Various options and upgrades include: heavy duty wiper with self-parking and switch, manual wipers, windshield washer system, and pantographic wipers.

Heavy duty aluminum-framed window
Solar film on front windows
Vee berth aluminum door

2-piece locking aluminum door to vee berth

Transom exit door
Canvas
Awning

Aluminum-framed canvas covered 48" overhang

Electrical
Horn (stainless steel) options

Stainless steel single, twin or trumpet horn installation/upgrades available

Lighting
Cockpit lighting

LED light in welded housing

Transom light

Small flush mount (LED) light installed on transom

Docking lights

x2 LED docking lights

Spotlight and mount
Paint And Finish
Bottom paint

Trilux II bottom paint available on all models

Clear coat protection

Sharkhide clear coat will help keep the sheen of your boat and protect the hull

Boat name decal

Available on sides (2) of all boat models. Also available: boat name and place decal on transom

Zolatone paint with clear coat

Zolatone paint on the interior and/or exterior of cabin, soft top & cockpits. Available on all boat models.

Deck Washdown
Deck wash down pump

Hose and sprayer conveniently located in side gunnel

Safety
Boat hook

Telescopic 8'-0 boat hook

Fire extinguisher

Various makes and models available

First aid kit
Life jacket

Various sizes and models available

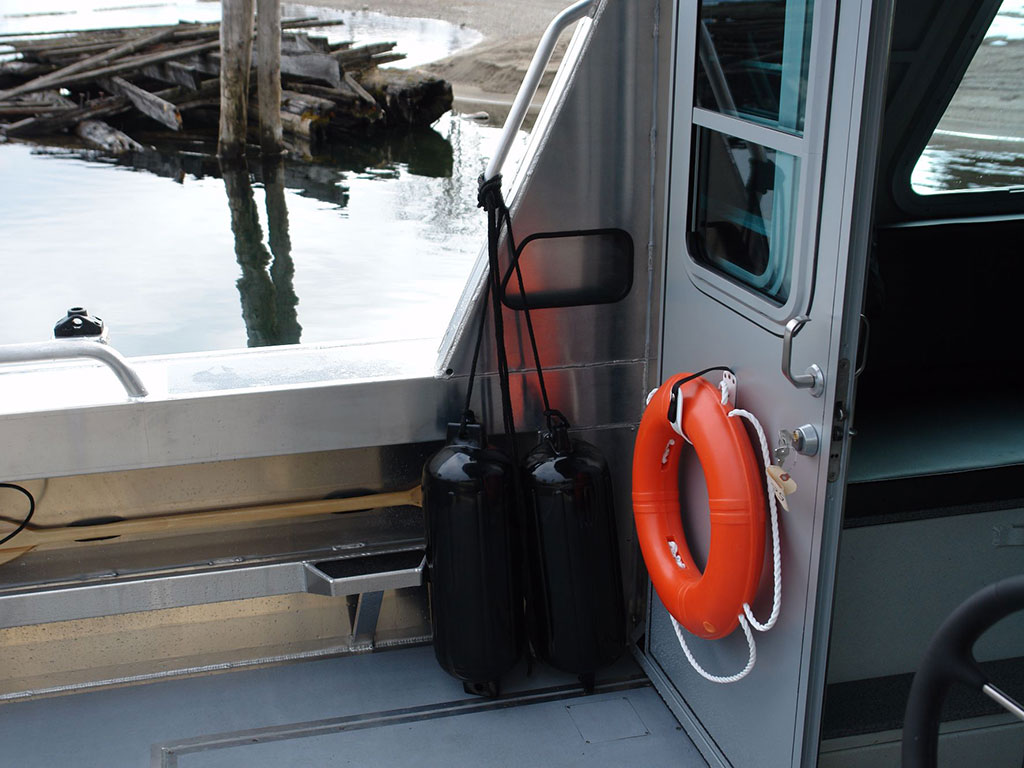

Life ring and holder

30" life ring with 50' line & holder

Small vessel safety kit
Throw line
Cabin
Closet

Closet with a welded aluminum door

Insulated cabin sides

Insulated cabin sides and headliner with white panelling

Galley

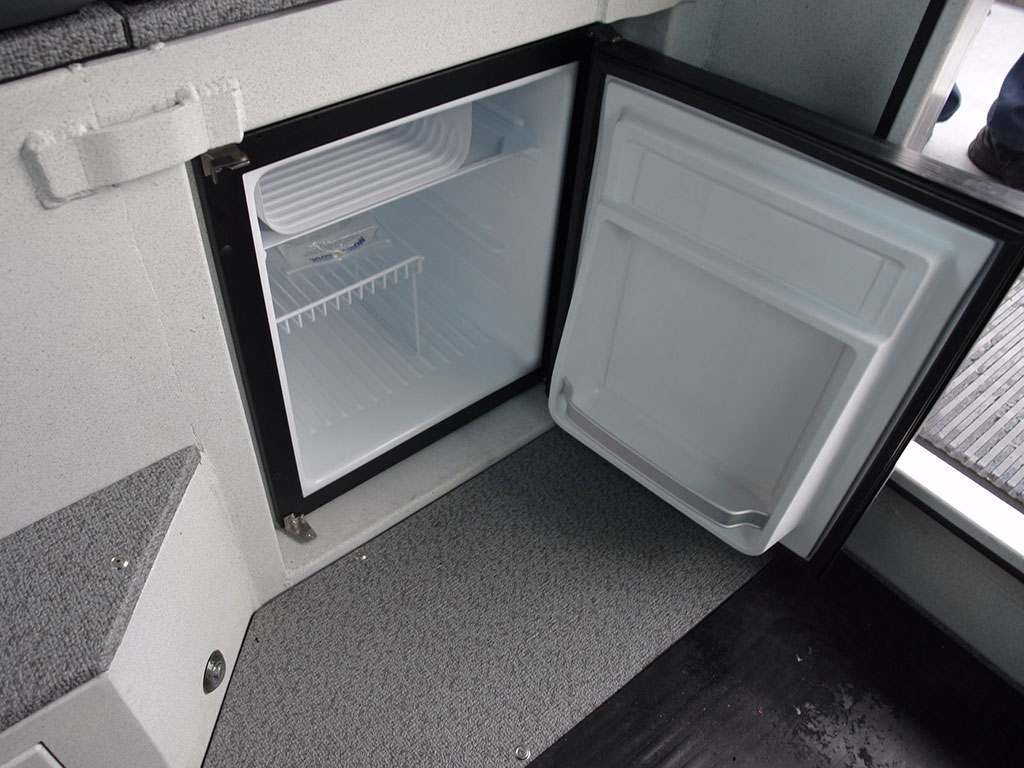

Refrigerator

Various models and sizes available

Sinks

Manual and electric options available

Galley

Galley with powder-coated aluminum cabinet with cupboards, drawers, shelf, counter-top & side table. compact or regular sized galleys available

Galley package

Galley package - powder-coated aluminum cabinet with drawers, DC refrigerator, sink, diesel cook top stove, electric tap set & 9 Gal holding tank

Seat or table socket

Additional flush mount seat or table socket

Settee
Table

Table on single pedestal with flush pedestal socket (or removable quick release option also available)

Settee upgrade

Settee upgrades available:
- extend dinette width for double bunk.
- reversible backrest on forward dinette seat.

Settee

2 or 4-person settee, with drop down table, storage cupboards & vinyl upholstered seating including backrest cushions

Headliner
Headliner velour

Cabin top velour headliner

Head And Shower
Curtains in head

Canvas privacy curtain in marine head

Non-skid paint in head

Add security to the flooring with textured paint

Hot water

6 GAL hot water tank for domestic hot water

Head options

Available options:
- Shelf in head compartment
- Shower head - hot /cold flush with drain sump including pump
- Sink in head - electric or manual taps including pump

Marine head

Electric or manual options available

Head compartment

Stand-up head compartment with exterior vent, door & latch

Hot water holding tank

10 GAL with 3-way valve, deck clean-out and mascerator pump *required in US only

Porta potty

Compact manual toilet

Heaters
Diesel tank storage box

Storage box below aft helm (aluminum) for diesel tank. Also available as a storage box/foot rest with lid in front of helm seat for bus heater

Hydronic heater/hot water - diesel hydronic coolant heater

Hydronic heater/hot water with (2) blowers and diesel tank

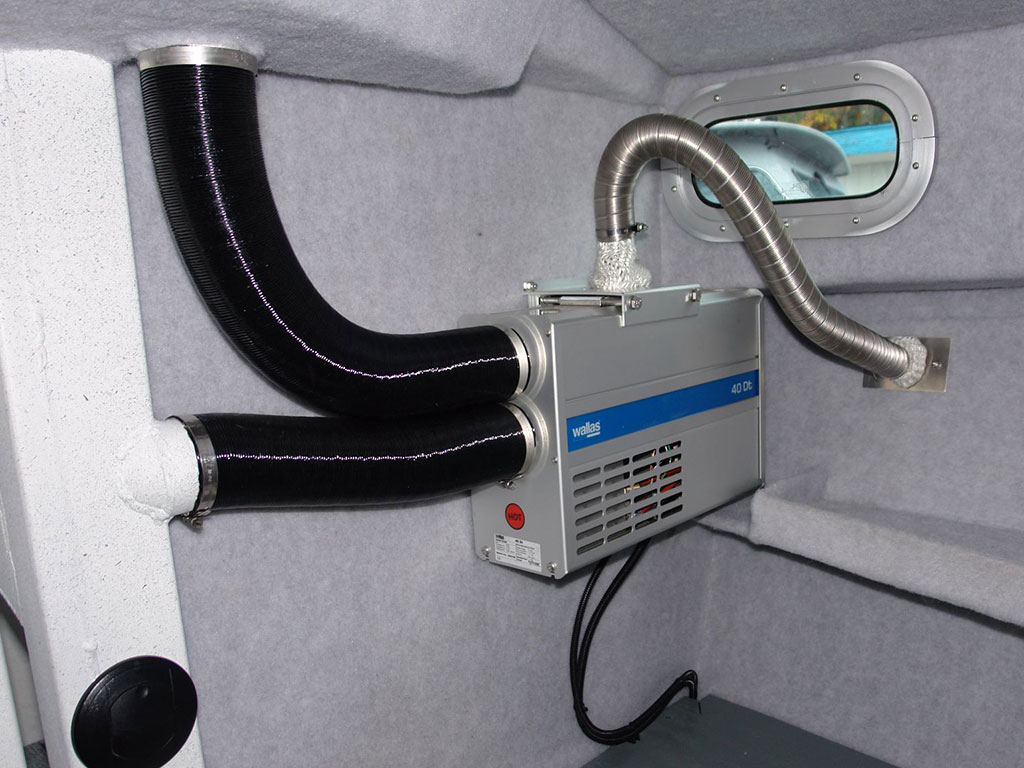

Diesel heater

Various diesel heater options available

Cabin vent

For galley options

Electrical
12 V Power socket

Includes USB port and LED light

Breaker panel upgrade

Added options and/or upgrades available

Electric fan

For cabin interior

Wiper options

Various options and upgrades include: heavy duty wiper with self-parking and switch, manual wipers, windshield washer system, and pantographic wipers.

Lighting
Red & white dome style light in cabin, vee berth or head

Day and night lighting

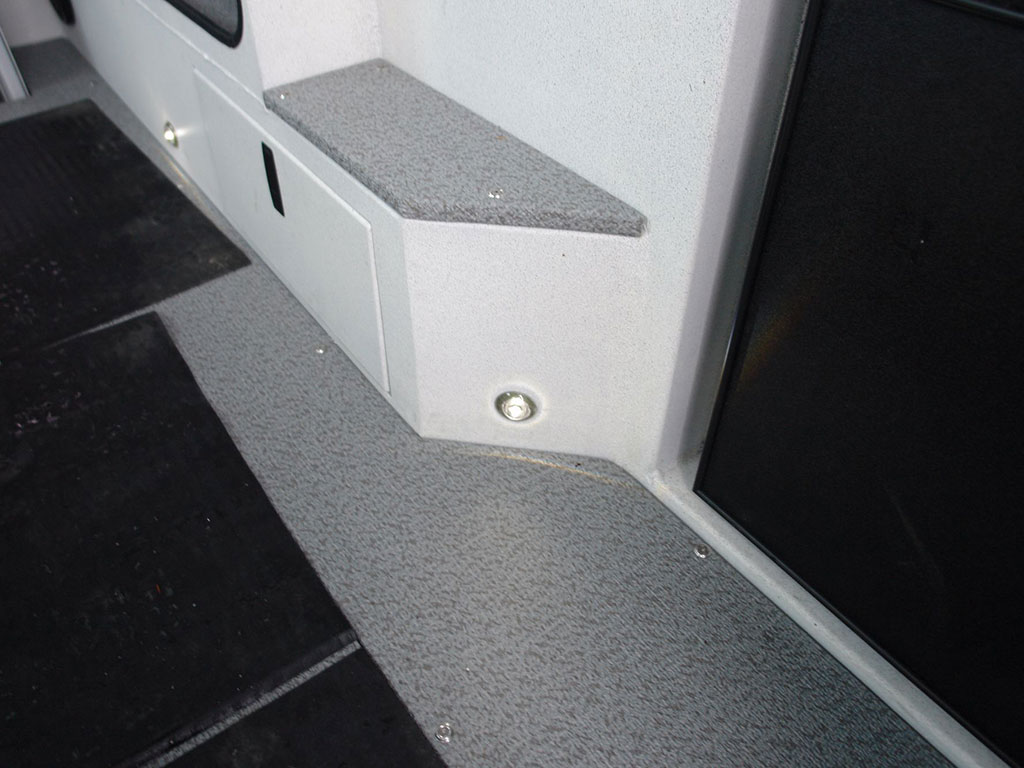

Passage way lights - low level LED's

Available on models with enclosed cabins

Paint And Finish
Zolatone paint with clear coat

Zolatone paint on the interior and/or exterior of cabin, soft top & cockpits. Available on all boat models.

Non-skid paint in head

Add security to the flooring with textured paint

Seating
Armrests
Jump seat

Side mount jump seat

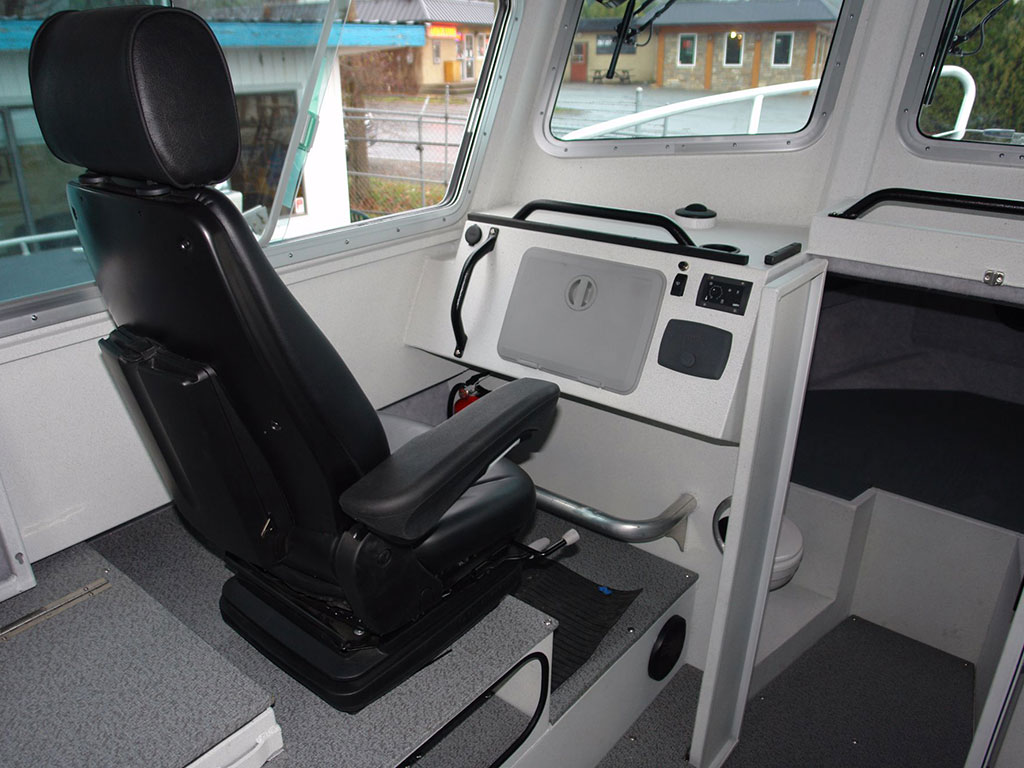

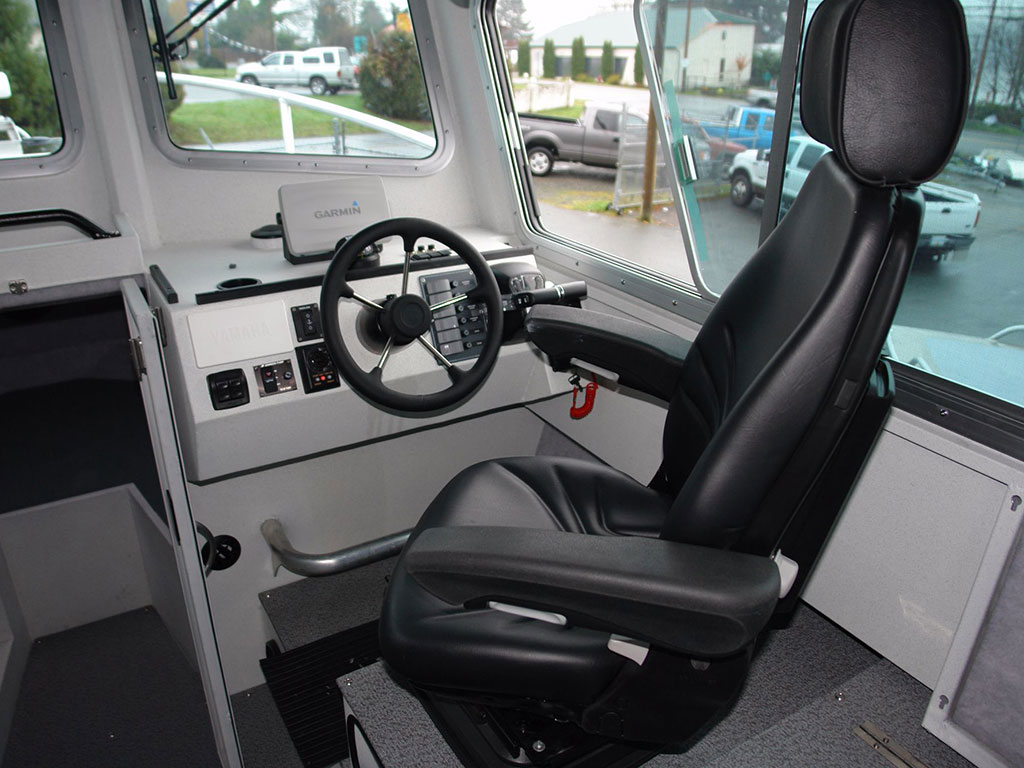

Grammer suspension helm seat

Suspension helm seat with high back, arm rests & swivel

Seat or table socket

Additional flush mount seat or table socket

Seat slide
Electronics

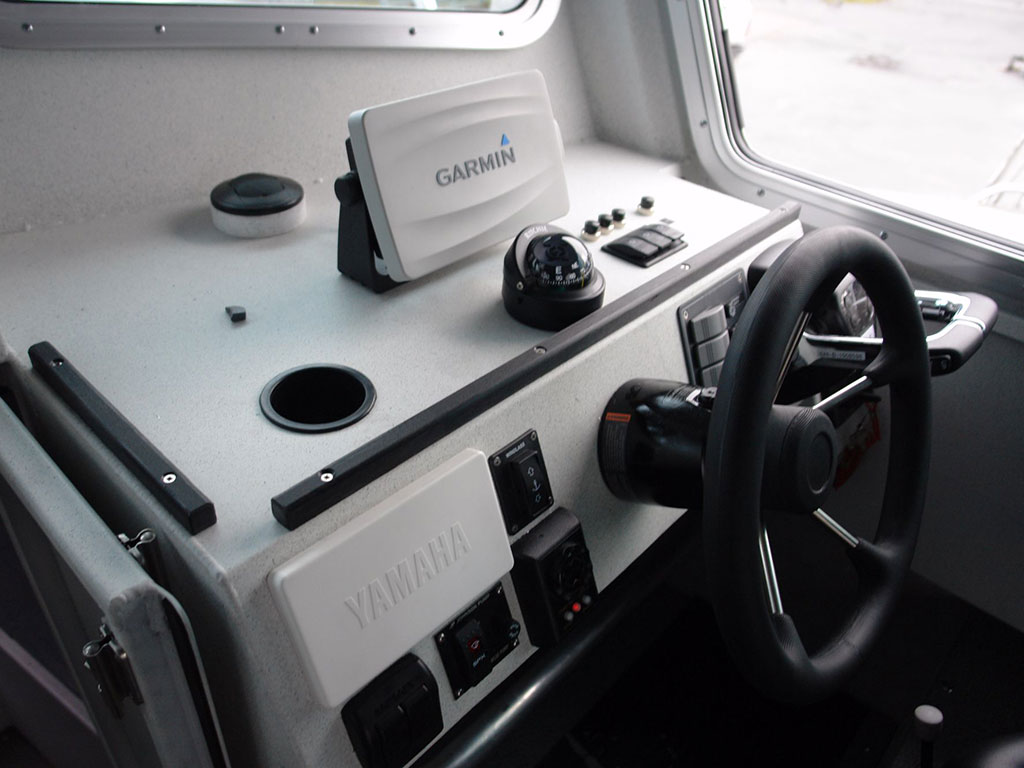

Garmin GPSMap

Different models to choose from

Garmin echoMAP

Various Garmin echoMAP options available

Compass

Ritchie dash mount compass

VHF radio

Various models available, both handheld and fixed-mount.

Garmin map chip

Available for various locations

Garmin radar

Placed on roof top radar post

Horn (stainless steel) options

Stainless steel single, twin or trumpet horn installation/upgrades available

Stereo and speakers
Additional speakers

Additional speakers in cockpit or cabin

Batteries
Battery monitor
Lighting
Docking lights

x2 LED docking lights

Spotlight and mount
Breaker Panel
Breaker panel upgrade

Added options and/or upgrades available

Downriggers
Downrigger cannon ball holders

Made by Scotty Plastics

Scotty accessories

Available options:
- electric receptacles
- powerlock rod holder
- swivel mount

Scotty downrigger

Scotty depthpower 30" or 60", includes swivel, cannonball holders & plug wiring

Crab Pot Pullers
Crab pot puller

Ace Line Hauler crab pot puller (100 lb), mounted with power plug, or supply only

Rob And Net Holders
Net holder - welded
Rod holder - 2 sets of 3 welded holders bolted to cabin top sides

Upgrade to powder-coated to match

Rod storage
8-pack Rocket launcher rod holder

upgrade to Powder-coated to match

Fish Box Liners
Fish box liner

Fish box liner for under deck storage compartment

Steering
Auxiliary motor steering

Hydraulic steering with diverter valves on second station console

Steering upgrades

Available steering options:
- Tilt steering- upgrade
- Flush mount kit for rear steering station

Dual engine

Available options:
-dual engine, single station
-dual engine, dual station

Dual station

Available options:
- single engine, dual station
- dual engine, dual station

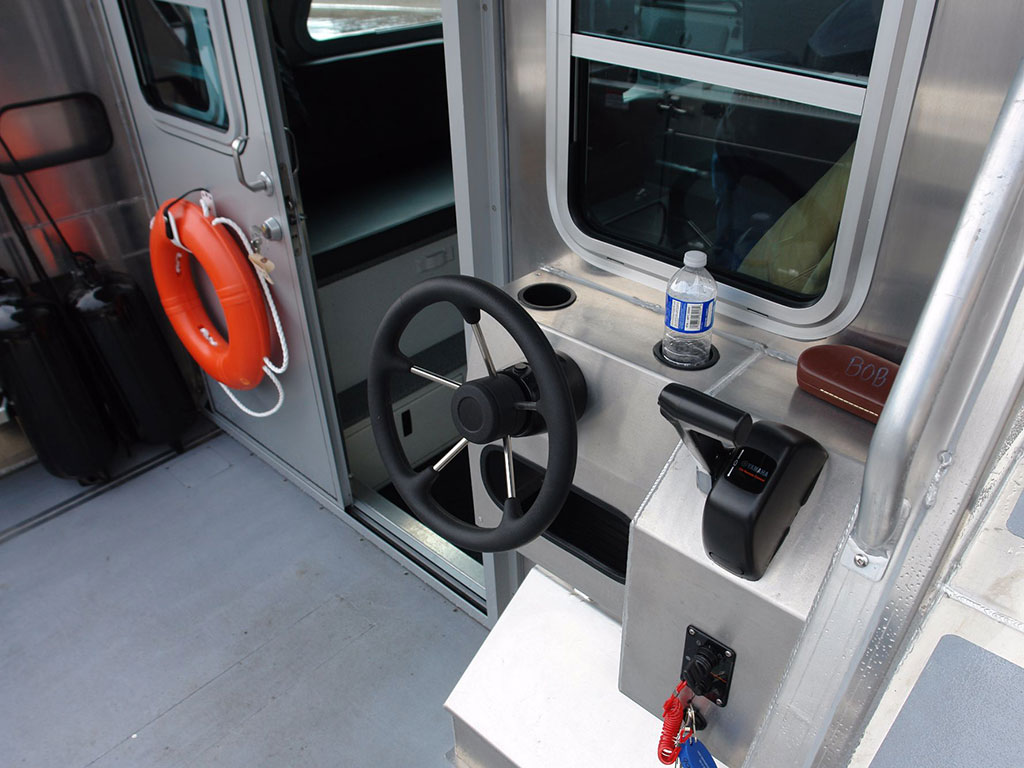

Dual station steering console

Console comes with open storage bin & cup holder(s)

Propellers
Propellor guard

Available in stainless steel or aluminum

Propellor

Stainless steel and aluminum models available

Bow Thrusters
Vetus bow thruster

Propulsion device mounted to the bow for increased maneuverability

Anchors

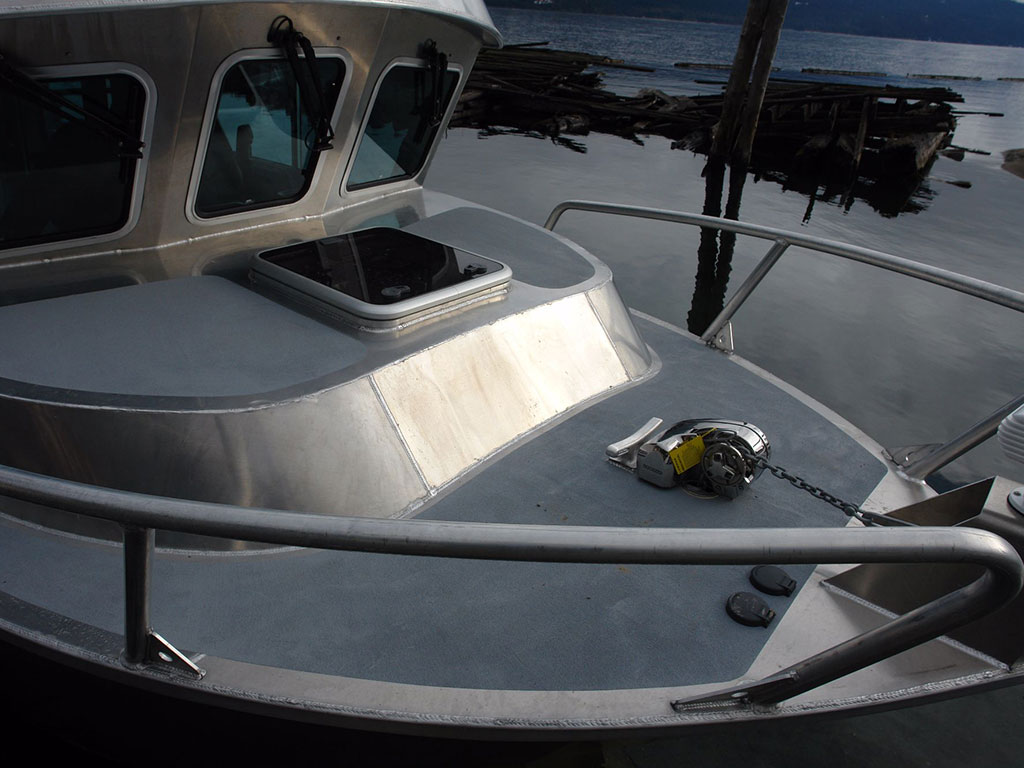

Anchor

Windlass or non-Windlass anchors available in various sizes, from light to heavy duty

Anchor roller - upgrade

Various sizes and options available

Cleats
Aluminum welded cleat

Cleats available in 8" and 9" sizes

Flush mounted cleat

Cleat - flush mount (tie-down)

Fenders
Fender holding baskets

Mount to bow handrails

Polyform fender
Shore Power
A/C Receptacles

Additional A/C receptacles

Galvanic isolator
Shore power package

Shore power with 50 ft. 30A cord, AC panel & 110V receptacle

Battery charger

Dual bank waterproof onboard charger

Lighting
Docking lights

x2 LED docking lights

Spotlight and mount
Docking
Samson dock lines
Deck
Side steps

Available options:
- 2 fixed/welded to rod tray (side gunnel)
- removable on rod tray (side gunnel)

Storage compartment under deck

Storage compartment under deck with baffle (2)

Grab Rails
Transom handrails

Handrails on transom, with downrigger mounts & cup holders

Bow rails

Various sizes and configurations available

Handrails

Available options:
-Overhead grab rails in cabin
-Handrails on bow
-Handrails on cabin top
-3`-0`` handrails
-Handrails on cuddy

Ladders
Swim ladder

Folding swim ladder with grab handle on transom

Ladder

Available options:
- Heavy duty stern mounted dive ladder (open rung)
- Stainless steel telescoping under transom 3 rung (cable steering option)
- Powder coated

Cabin top ladder

Ladder to cabin top

Tow Posts
Tow post

A number of options are available, including light to heavy duty and welded/fixed or removable.

Radar Arches
Radar post

Radar post with antenna wings, available in large or small sizes

Radar arch

Radar arch on cabin top with mounting plates for electronics
Available options:
- removable radar arch
- powder coated radar arch

Bilge Pumps
Automatic bilge pump upgrade

Upgrades available in 1250 GPH, 1500 GPH, 2000 GPH

Bilge blower

Provides efficient ventilation for bilges, engine compartments, galleys and heads

Fuel Tank
Fuel tank (standard) increase size/per GAL
Hull
External motor bracket - upgrade

Includes auxiliary motor mount and twin engine fuel upgrade (filter, vents, pick up)

Delivery
Delivery

Delivery available across the United States and Canada. Speak to your dealer for more information.

Licensing
Commercial application

Available Options:
- Commercial application TP1332 Class B
- Commercial application TP1332 Class C
- Commercial application TP1332 Class D

Oversize permit

Oversize permit (additional)

Pleasure craft license

Pleasure craft license. Includes (2) number decals. Canada ONLY.

Trailers
Trailer

Highliner and Roadrunner trailers available for all boats:
- Single axle
- Dual axle
- Galvanized
- With and without drum brakes
- 800lb to 10,000lb capacity

Browse Features

Browse Features

Find out more about available features. Use our interactive features tool to customize your Silver Streak Boat.

Learn More
Find A Dealer

Find A Dealer

See something you like? Want more information on Silver Streak Aluminum Boats? Find a dealer near you for more information.

Learn More

Why Silver Streak Boats?

Aluminum boats require a lot less maintenance than fiberglass boats. Aluminum is more durable, longer lasting, and easier to maintain. All our boats are available with a selection of bottom paint options to meet your specific boating needs.

Andy Barry - Owner of Silver Streak Boats has been building a reputation for building the finest aluminum boats on the west coast since 1987. Find out for yourself why our aluminum boats are among the most sought after, both new, and used.

All Welded Aluminum Boats means there are no rivets or other seals or connections that weaken overtime, create leaks, and will eventually fail. Welded aluminum boats are among some of the toughest boats out there. Probably why they have become a staple of the west coast.

Our aluminum boats require very little ongoing maintenance. No carpets to maintain, no wood to replace and clean. High quality electrical connections mean minimal effort to maintain. Outboard motors mean a simple "end of life" switch, and protect your investment.

Client Testimonials

Where to begin?
My fondness for boats and fishing began about 73 years ago and I have owned
many. Upon arriving from the waste lands of Ontario with my son in 2017 one of
our first projects was to find a boat in the 17 to 19 foot range that would serve as
a fresh and salt water platform for his young family to enjoy our new and
beautiful Province.
I had long since abandoned the drudgery of fibreglass boats with their rotting
floors, saturated foam flotation and endless polishing. I hate to think of the
wasted hours spent replacing floors, transoms and of course the constant need to
polish gel coat from top to bottom and end to end. Aluminum was the only way to
go for us.
But which aluminum boat? Since we are very particular about our boats we
searched high and low for the best make and model. We kicked the “tires” on just
about everything available on the island and mainland. Having owned a couple of
Crestliners we knew the level of fit and finish we wanted but we needed
something to take advantage of the ocean waters. Lake boats weren’t going to cut
it.
Most of the vessels we looked at were nice enough but nothing stood out in
terms of utility, welds or design. Some weren’t very good at all. We kept looking
until my son’s co-worker, a long time resident of Sooke, suggested we look at a
Silver Streak. A weird name for a boat I thought at the time but it certainly isn’t.
We were absolutely blown away by the quality we saw. Our search ended right
there and then. Here was a boat that stood head and shoulders above everything
we had seen, had every feature and option we wanted for our family and was
locally made by a long term builder. We immediately put in an order for our Race
Rocks…..
We added a couple of custom features and took delivery in June of 2018. Do we
have any regrets? Not one. The more we use it the more we love it and we do
love it. Everything about this boat seems designed to fit our needs like a glove,
everything seems to be in exactly the right place and every aspect of Streak’s

workmanship has exceeded our wildest dreams. And, very importantly, unlike the
other boat choices, we got to choose the engine manufacturer we wanted and we
wanted two stroke performance. Our Streak is up and gone to the fishing grounds
or beach faster than all the four stroke boys. It’s an absolute flier and it’s stable
no matter what you are doing in it. On our lake or on the ocean we have a
marvelous boat in every respect we can think of. Thank you Silver Streak.

Bruce and Jordy



Jordan & Bruce B

Location: Vancouver Island, BC

Let’s Talk Boat!

Have questions? Looking for a Quote?

Complete this form and we will connect you with a Dealer:

  • This field is for validation purposes and should be left unchanged.

Watch The Video
