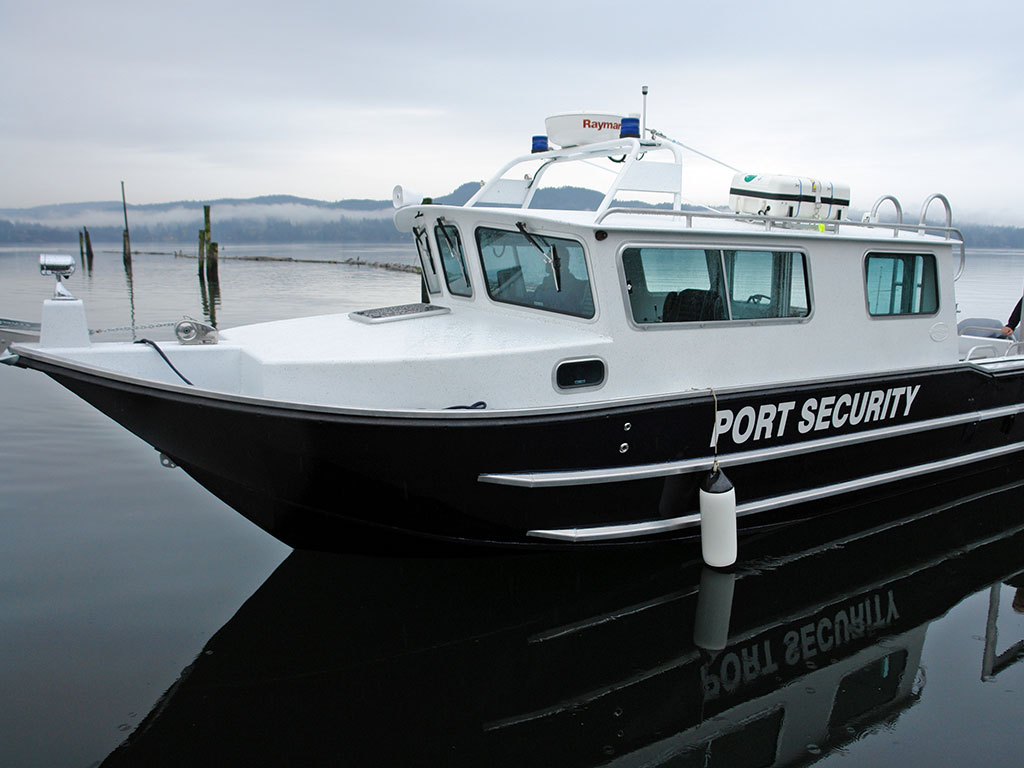

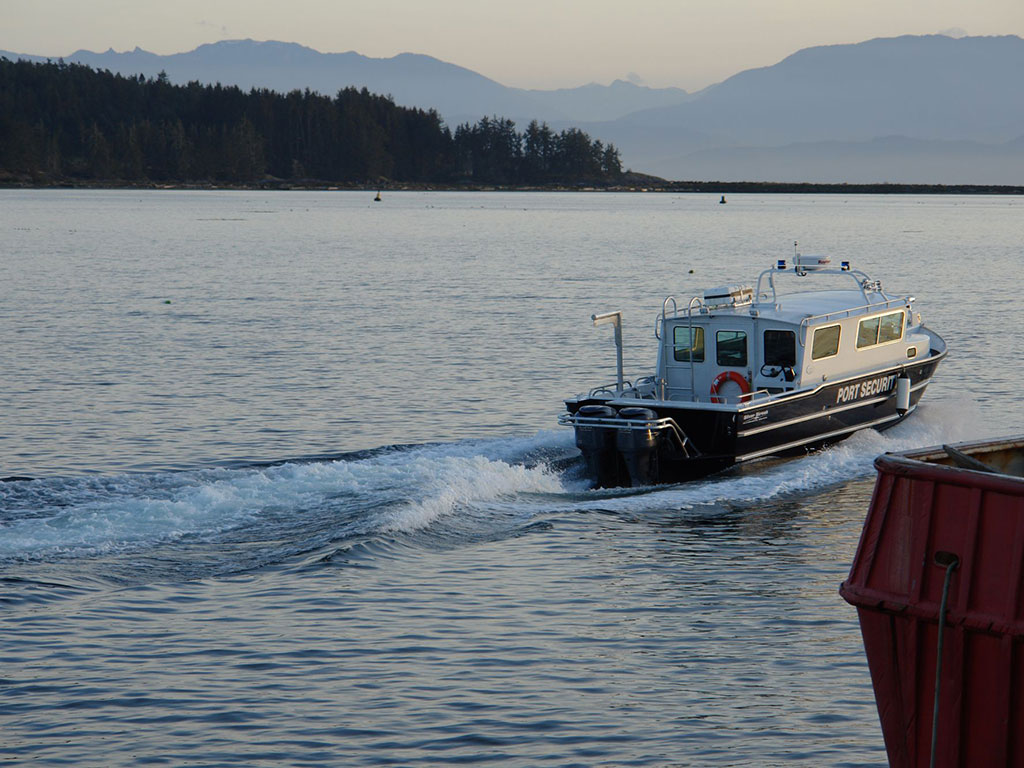

30′ Cuddy Cabin – Sonora All Welded Aluminum Boat

About This Boat

One of Silver Streak's original cruisers, the Cuddy Cabin comes with a fully insulated, painted cabin and dinette. Sleek and finely finished, this is an ideal boat for anyone seeking a quiet spot to anchor overnight in warmth and comfort. This model is often outfitted to suit a research and/or rescue boat with added seating and storage and area for computers & electronics.

This Boat Is Ideal For ...

Cod

Crabbing

Cruising

Exploring

Family Time

Fishing

Fresh Water

Halibut

Lake

Multipurpose

Ocean

Prawning

Salmon

Tuna

Got Questions? Get Answers

Standard Features List

1 x Fully enclosed stand up cabin & cuddy, including a solid bulkhead with sliding door, 3-piece forward leaning aluminum-framed windshield, (2) aluminum-framed sliding side windows with flyscreens, (5) aluminum-framed fixed cabin windows & (2) cuddy windows
1 x 12 V power socket with USB port & LED light

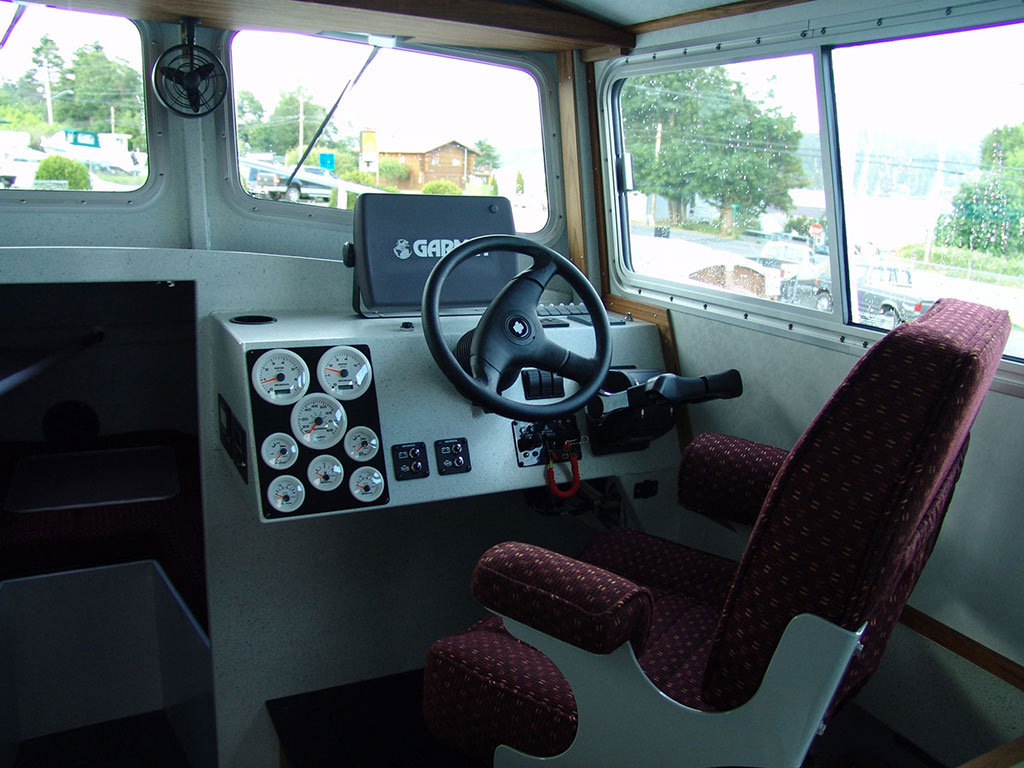

1 x 6-way fused switch panel on dashboard
7 x 10″ welded aluminum cleats
1 x Aluminum deck in main cabin with storage hatch(es)
1 x Bilge pump – 1600 GPH pump – auto on/off switch
1 x Battery – dual SRM 27 batteries including wiring, 4-way selector switch, breaker & boxes
1 x Bow railing – low profile
1 x Brackets for transducer and anode (1), plus weld-on teardrop anodes (2) under hull
2 x Cabin (interior) lights
1 x Chain locker – self draining with heavy duty stainless steel anchor roller. Insulated for noise reduction
1 x Chines & gunnels fully welded
1 x Closing storage in transom (locking battery compartment)
4 x Cup holders

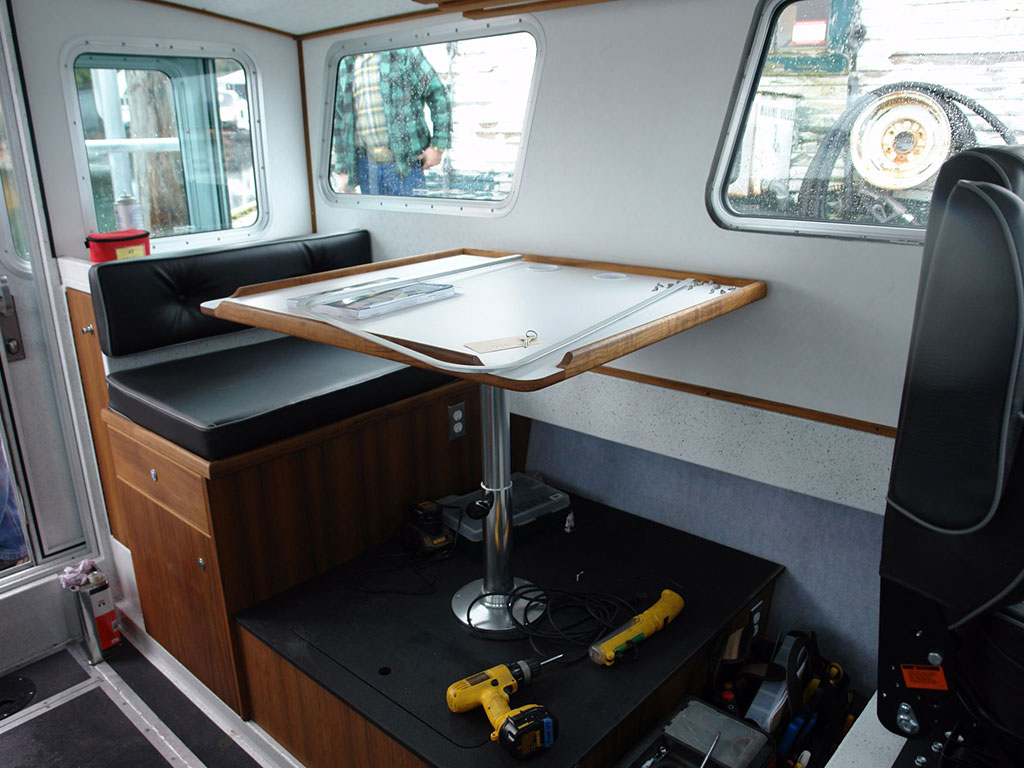

1 x Dinette (port side) including table/convertible single bunk, 4″ vinyl upholstered cushions, backrests (reversible on forward seat), cupboard & storage
3 x Drain plugs
1 x Electric trim tab set (18″W x 12″L)
1 x Emergency escape hatch, with flyscreen, in forward compartment
3 x Electric wipers – heavy duty with self-park & switch

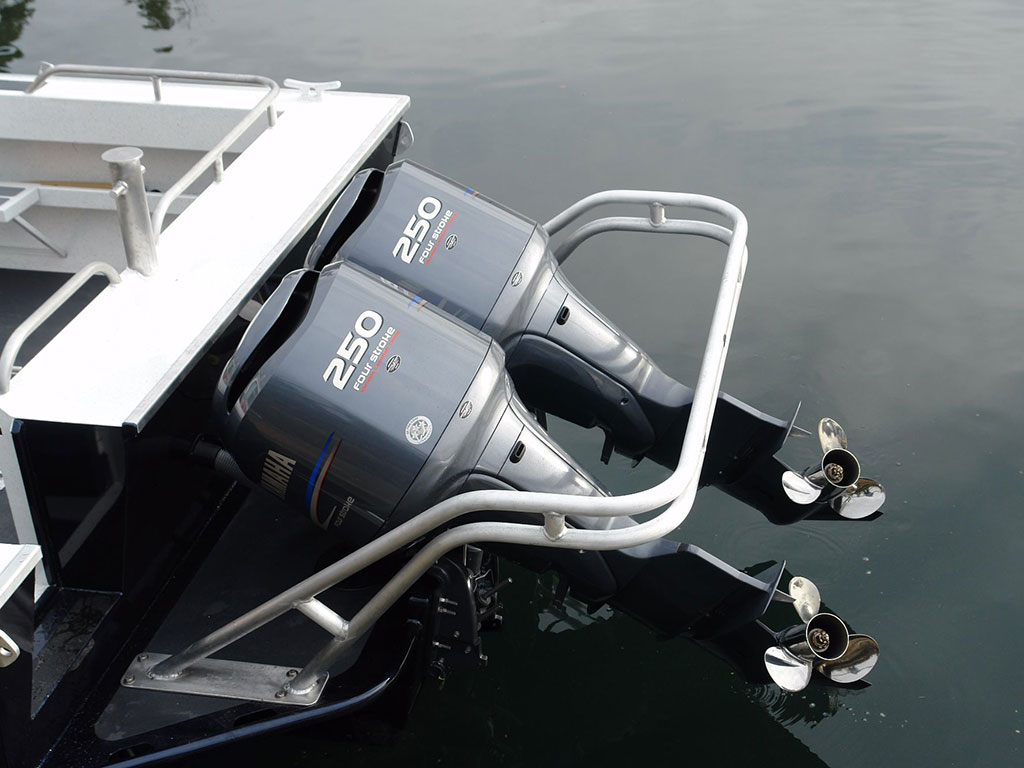

1 x External motor bracket for twin 30″ engine with auxiliary mount and full width transom
1 x Fish box in rear gunnel with cutting board
1 x Flotation – closed cell polyurethane spray foam under decks & gunnels
2 x Foot rests on forward bulkhead (fixed/welded)
1 x Fuel tank (150 Imp Gal/180 US Gal) w/ fuel gauge – built in under deck
1 x Framed and fully insulated vee berth, with velour and 3″ vinyl upholstered cushions
1 x Fully welded self-bailing aluminum cockpit deck with inspection hatches for fuel connections & wire ways
1 x Glove box
1 x Heavy duty custom hull graphic
1 x Horn – twin compact (stainless steel)
1 x Insulated hull sides and velour headliner
1 x Keel guard on hull bottom (beaching wear strip)
1 x Navigation lights (LED)
1 x Non-skid paint on bow, main deck and gunnels
1 x Paint interior/exterior cabin (Zolatone with clear coat)

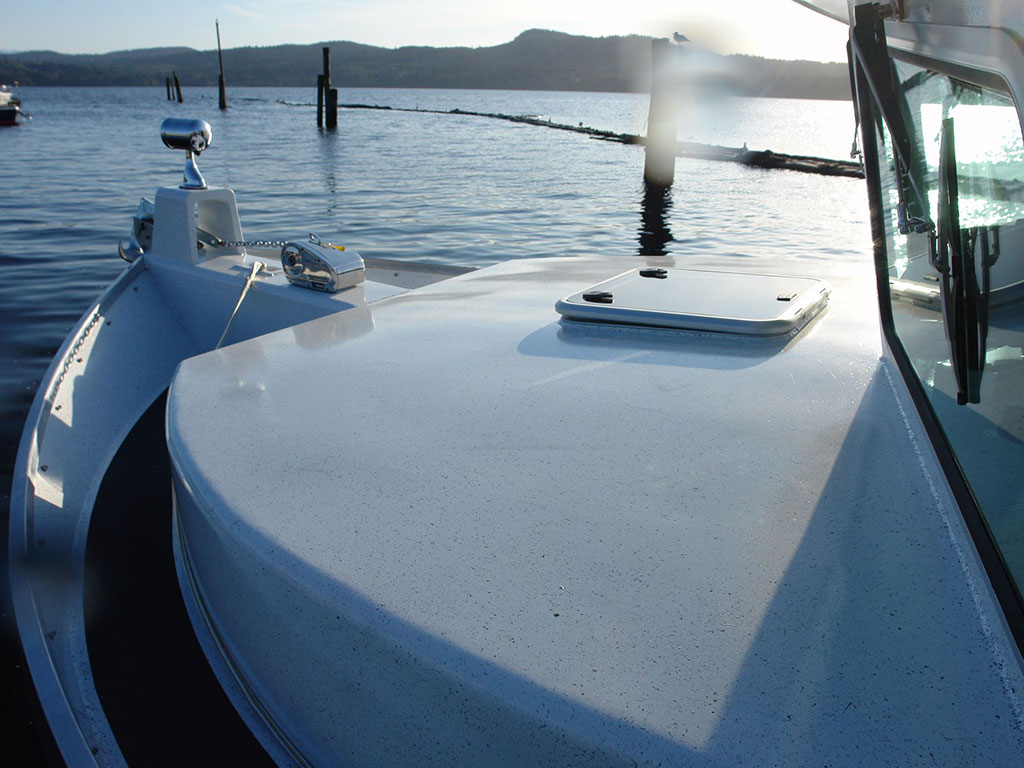

1 x Raised foredeck (bow) for increased head room in cuddy compartment
1 x Raised hull sides – mid ship to bow
2 x Side stiffeners (per side)
1 x Side storage trays in cockpit
1 x Steering for twin engine, single station – hydraulic
1 x Storage compartments in cuddy, under vee berth
1 x Swivel Seat – Barry Marine vinyl upholstered (lg) on shock absorbing Back Saver pedestal
1 x Transom hand rails with downrigger mounts & cupholders
1 x Under deck storage compartment in cockpit deck
1 x Under deck large storage compartment with hinged door in cabin
3 x Welded bow & transom eyes with stainless steel inserts
1 x Wide walk-around deck

30′ Cuddy Cabin – Sonora Standard Specification

Capacity (People): 6

Horsepower Minimum: 350 Twin

Beam: 10'-8"

Freeboard: 48"

Dead Rise: 18°

Bottom Width: 9'-0"

Hull Weight: 8,200 lbs

Bottom Plate: 1/4" 5086

Side Plate: 3/16" 5086

Fuel Tank: 150 Imp GAL

Tow Weight: 12,000 lbs

Aft Deck Size: 99 3/8" x 102 5/8"

Make It Yours - Available Customization Options

Exterior
Interior
Nav & Electronics
Fishing
Power
Docking
Technical
Delivery

Cabin
Cabin extension	1' to 3' cabin extensions with glass & upholstery
Cabin top extension	Addition of an 18" overhang extension
Aluminum folding steps	(2) Folding steps to access cabin top
Cabin top brackets	Cabin top brackets for traps/kayaks

Windows And Doors
Solar film on front windows
Transom exit door
Vee berth aluminum door	2-piece locking aluminum door to vee berth

Canvas
Awning	Aluminum-framed canvas covered 48" overhang

Electrical
Horn (stainless steel) options	Stainless steel single, twin or trumpet horn installation/upgrades available

Lighting
Cockpit lighting	LED light in welded housing
Transom light	Small flush mount (LED) light installed on transom
Spotlight and mount
Docking lights	x2 LED docking lights

Paint And Finish
Bottom paint	Trilux II bottom paint available on all models
Clear coat protection	Sharkhide clear coat will help keep the sheen of your boat and protect the hull
Boat name decal	Available on sides (2) of all boat models. Also available: boat name and place decal on transom
Zolatone paint with clear coat	Zolatone paint on the interior and/or exterior of cabin, soft top & cockpits. Available on all boat models.

Deck Washdown
Deck wash down pump	Hose and sprayer conveniently located in side gunnel

Safety
Boat hook	Telescopic 8'-0 boat hook
Fire extinguisher	Various makes and models available
First aid kit
Horn (stainless steel) options	Stainless steel single, twin or trumpet horn installation/upgrades available
Life jacket	Various sizes and models available
Life ring and holder	30" life ring with 50' line & holder
Small vessel safety kit
Throw line

Cabin
Closet	Closet with a welded aluminum door
Storage shelves	Shelves for storage in cuddy cabin

Galley
Bus heater	Available with defroster and fan(s)
Refrigerator	Various models and sizes available
Sinks	Manual and electric options available

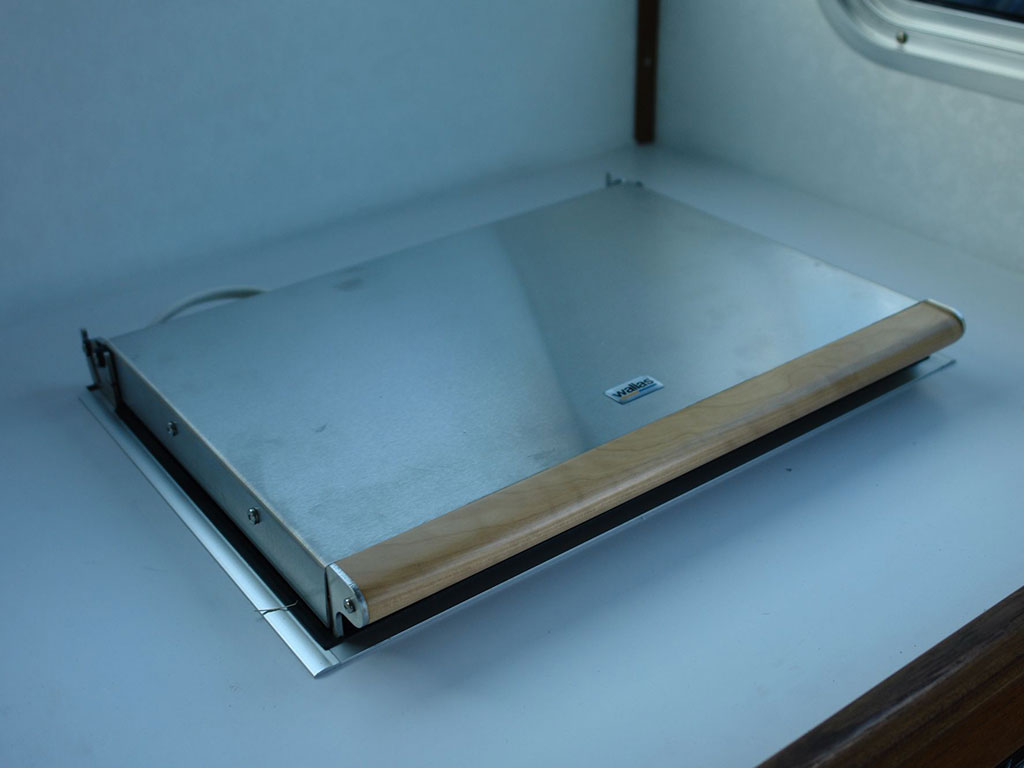

Cook top stove	Alcohol or diesel stoves available

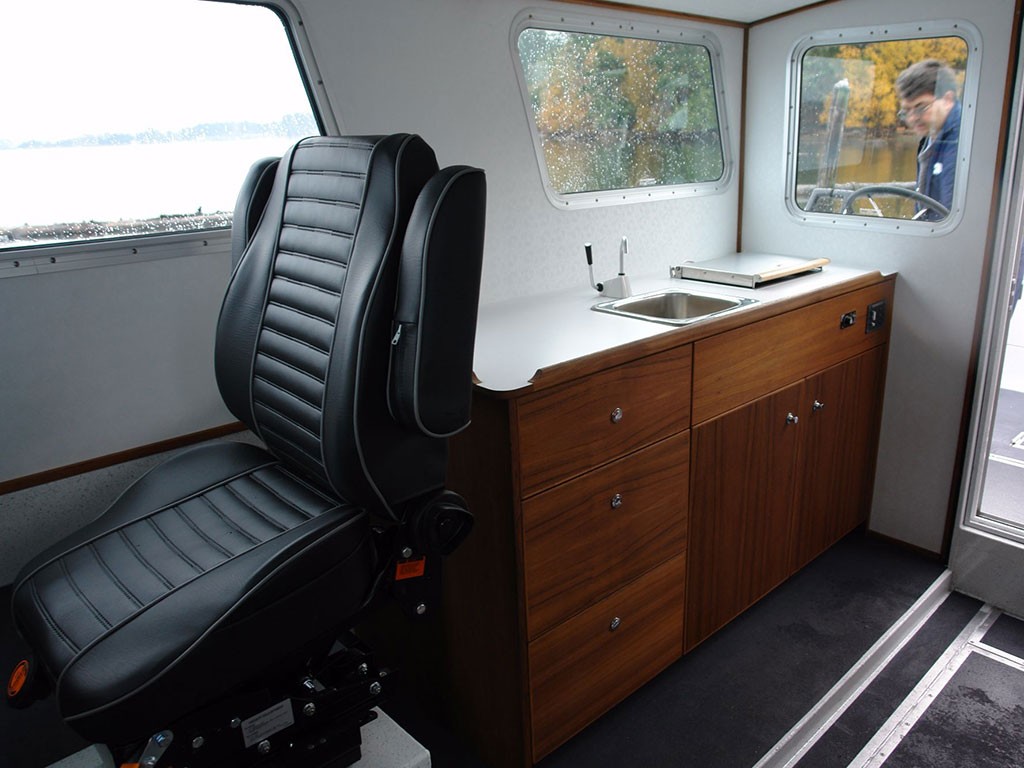

Galley	Galley with powder-coated aluminum cabinet with cupboards, drawers, shelf, counter-top & side table. compact or regular sized galleys available

Headliner
Headliner velour	Cabin top velour headliner

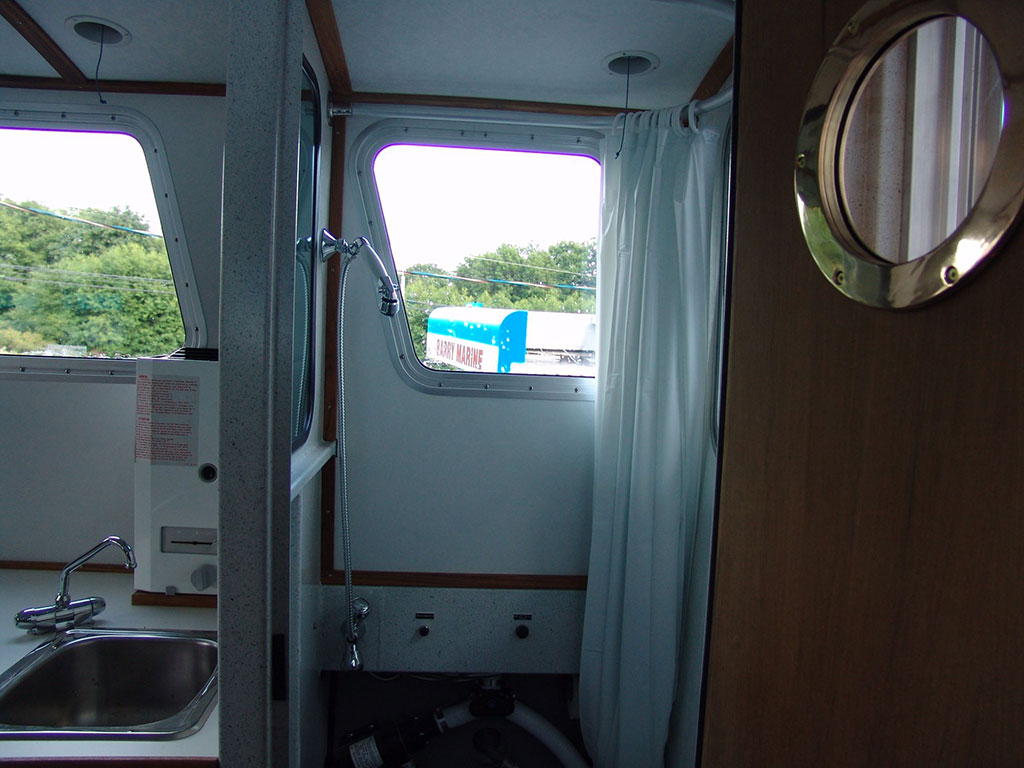

Head And Shower
Curtains in head	Canvas privacy curtain in marine head
Non-skid paint in head	Add security to the flooring with textured paint
Marine head	Electric or manual options available
Hot water holding tank	10 GAL with 3-way valve, deck clean-out and mascerator pump *required in US only
Head compartment	Stand-up head compartment with exterior vent, door & latch
Head options	Available options: - Shelf in head compartment - Shower head - hot /cold flush with drain sump including pump - Sink in head - electric or manual taps including pump
Sinks	Manual and electric options available

Heaters
Diesel tank storage box	Storage box below aft helm (aluminum) for diesel tank. Also available as a storage box/foot rest with lid in front of helm seat for bus heater
Hydronic heater/hot water - diesel hydronic coolant heater	Hydronic heater/hot water with (2) blowers and diesel tank
Diesel heater	Various diesel heater options available
Bus heater	Available with defroster and fan(s)
Cabin vent	For galley options

Electrical
12 V Power socket	Includes USB port and LED light
Breaker panel upgrade	Added options and/or upgrades available
Electric fan	For cabin interior

Lighting
Red & white dome style light in cabin, vee berth or head	Day and night lighting
Passage way lights - low level LED's	Available on models with enclosed cabins

Paint And Finish
Non-skid paint in head	Add security to the flooring with textured paint
Zolatone paint with clear coat	Zolatone paint on the interior and/or exterior of cabin, soft top & cockpits. Available on all boat models.

Seating
Armrests
Grammer suspension helm seat	Suspension helm seat with high back, arm rests & swivel
Jump seat	Side mount jump seat
Seat slide

Electronics
Garmin GPSMap	Different models to choose from
Compass	Ritchie dash mount compass
VHF radio	Various models available, both handheld and fixed-mount.
Garmin radar	Placed on roof top radar post
Garmin map chip	Available for various locations
Stereo and speakers
Additional speakers	Additional speakers in cockpit or cabin
Horn (stainless steel) options	Stainless steel single, twin or trumpet horn installation/upgrades available
Garmin echoMAP	Various Garmin echoMAP options available

Batteries
Battery monitor

Lighting
Docking lights	x2 LED docking lights
Spotlight and mount

Breaker Panel
Breaker panel upgrade	Added options and/or upgrades available

Safety
Flares	Additional safety option
Horn (stainless steel) options	Stainless steel single, twin or trumpet horn installation/upgrades available
VHF radio	Various models available, both handheld and fixed-mount.

Downriggers
Downrigger cannon ball holders	Made by Scotty Plastics
Scotty accessories	Available options: - electric receptacles - powerlock rod holder - swivel mount
Scotty downrigger	Scotty depthpower 30" or 60", includes swivel, cannonball holders & plug wiring

Crab Pot Pullers
Crab pot puller	Ace Line Hauler crab pot puller (100 lb), mounted with power plug, or supply only

Rob And Net Holders
Net holder - welded
Rod holder - 2 sets of 3 welded holders bolted to cabin top sides	Upgrade to powder-coated to match
Rod storage
8-pack Rocket launcher rod holder	upgrade to Powder-coated to match

Fish Box Liners
Fish box liner	Fish box liner for under deck storage compartment

Steering
Auxiliary motor steering	Hydraulic steering with diverter valves on second station console
Steering upgrades	Available steering options: - Tilt steering- upgrade - Flush mount kit for rear steering station
Dual engine	Available options: -dual engine, single station -dual engine, dual station
Dual station	Available options: - single engine, dual station - dual engine, dual station
Dual station steering console	Console comes with open storage bin & cup holder(s)

Propellers
Propellor guard	Available in stainless steel or aluminum
Propellor	Stainless steel and aluminum models available

Bow Thrusters
Vetus bow thruster	Propulsion device mounted to the bow for increased maneuverability

Anchors

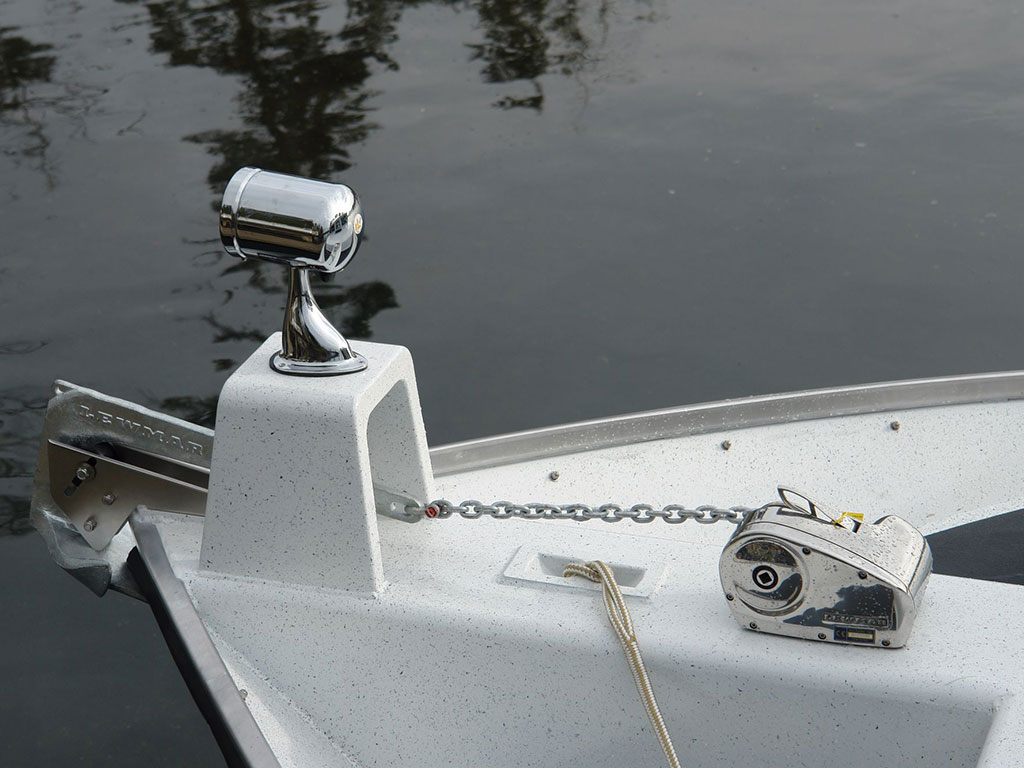

Anchor	Windlass or non-Windlass anchors available in various sizes, from light to heavy duty

Cleats
Aluminum welded cleat	Cleats available in 8" and 9" sizes
Flush mounted cleat	Cleat - flush mount (tie-down)

Fenders
Fender holding baskets	Mount to bow handrails
Polyform fender

Shore Power
A/C Receptacles	Additional A/C receptacles
Galvanic isolator
Shore power package	Shore power with 50 ft. 30A cord, AC panel & 110V receptacle
Battery charger	Dual bank waterproof onboard charger

Lighting
Docking lights	x2 LED docking lights
Spotlight and mount

Docking
Samson dock lines

Deck
Side steps	Available options: - 2 fixed/welded to rod tray (side gunnel) - removable on rod tray (side gunnel)

Grab Rails
Transom handrails	Handrails on transom, with downrigger mounts & cup holders
Bow rails	Various sizes and configurations available
Handrails	Available options: -Overhead grab rails in cabin -Handrails on bow -Handrails on cabin top -3`-0`` handrails -Handrails on cuddy

Ladders
Swim ladder	Folding swim ladder with grab handle on transom
Ladder	Available options: - Heavy duty stern mounted dive ladder (open rung) - Stainless steel telescoping under transom 3 rung (cable steering option) - Powder coated
Cabin top ladder	Ladder to cabin top

Tow Posts
Tow post	A number of options are available, including light to heavy duty and welded/fixed or removable.

Radar Arches
Radar post	Radar post with antenna wings, available in large or small sizes

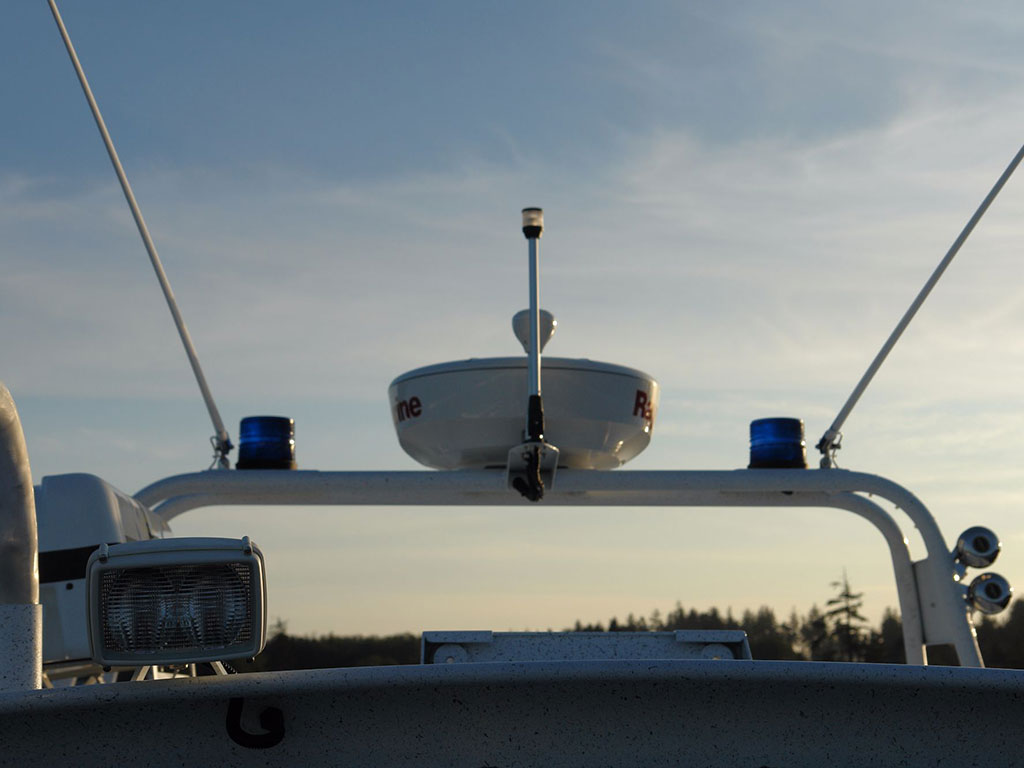

Radar arch	Radar arch on cabin top with mounting plates for electronics Available options: - removable radar arch - powder coated radar arch

Bilge Pumps
Bilge blower	Provides efficient ventilation for bilges, engine compartments, galleys and heads
Automatic bilge pump upgrade	Upgrades available in 1250 GPH, 1500 GPH, 2000 GPH

Fuel Tank
Fuel tank (standard) increase size/per GAL

Hull
Transom exit door

Delivery
Delivery	Delivery available across the United States and Canada. Speak to your dealer for more information.

Licensing
Commercial application	Available Options: - Commercial application TP1332 Class B - Commercial application TP1332 Class C - Commercial application TP1332 Class D
Pleasure craft license	Pleasure craft license. Includes (2) number decals. Canada ONLY.

Trailers
Trailer	Highliner and Roadrunner trailers available for all boats: - Single axle - Dual axle - Galvanized - With and without drum brakes - 800lb to 10,000lb capacity

Browse Features

Find out more about available features. Use our interactive features tool to customize your Silver Streak Boat.

Learn More

Find A Dealer

See something you like? Want more information on Silver Streak Aluminum Boats? Find a dealer near you for more information.

Learn More

Similar Boats You May Like (swipe to view)

Aluminum boats require a lot less maintenance than fiberglass boats. Aluminum is more durable, longer lasting, and easier to maintain. All our boats are available with a selection of bottom paint options to meet your specific boating needs.

Andy Barry - Owner of Silver Streak Boats has been building a reputation for building the finest aluminum boats on the west coast since 1987. Find out for yourself why our aluminum boats are among the most sought after, both new, and used.

All Welded Aluminum Boats means there are no rivets or other seals or connections that weaken overtime, create leaks, and will eventually fail. Welded aluminum boats are among some of the toughest boats out there. Probably why they have become a staple of the west coast.

Our aluminum boats require very little ongoing maintenance. No carpets to maintain, no wood to replace and clean. High quality electrical connections mean minimal effort to maintain. Outboard motors mean a simple "end of life" switch, and protect your investment.

Client Testimonials

Just came back from MacKenzie River, took it up to Arctic Ocean and trailered it back on the Dempster Hwy

Says fantastic boat, just thrilled to death, the trip was perfect, boat behaved just perfect….

Smooth, comfortable, responsive, dry

Design is exactly what he wanted and the boat behaves beyond his expectations.

Ray E.

Location: Ladysmith, BC

Read All Of Our Client Testimonials

Let’s Talk Boat!

Have questions? Looking for a Quote?

Complete this form and we will connect you with a Dealer:

Name*
First Last
Email
Phone*
Address*
City State / Province / Region
Tell us about the type of boater you are, or anything else we should know:
CAPTCHA
Comments
This field is for validation purposes and should be left unchanged.
