26′ Landing Craft Cabin – San Juan All Welded Aluminum Boat

About This Boat

The San Juan edition of Silver Streak's Landing Craft model was designed to be versatile in nature. Not only is it capable of hauling loads of equipment, aggregate and/or supplies but the interior also offers optional amenities such as, heaters, dinettes, kitchenettes and marine heads. This boat can be styled up with options to make it comfortable for a long trip or kept basic for use as a work boat with bench seating and captain chairs.

This Boat Is Ideal For ...

Crabbing

Exploring

Family Time

Fishing

Fresh Water

Hunting

Lake

Multipurpose

Ocean

Prawning

Got Questions? Get Answers

Standard Features List

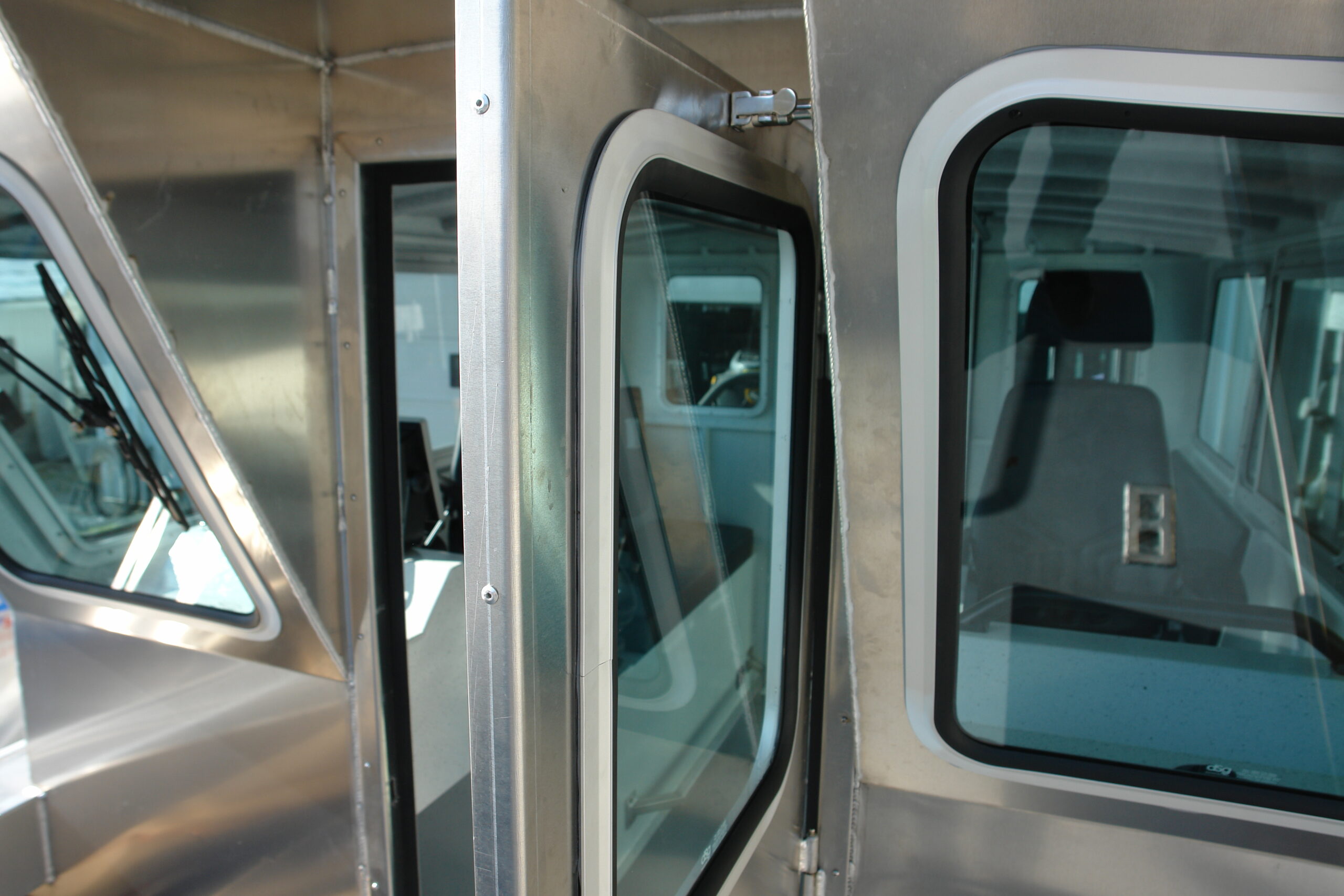

1 x Fully welded stand-up cabin including (2) hinged doors fore and aft with (3) heavy duty aluminum-framed front windows, (2) sliding side windows & (3) rubber-framed aft windows
1 x 6-way fused switch panel on dashboard
8 x 10″ welded aluminum cleats
1 x 12 V power socket with USB port & LED light
1 x Battery – dual SRM 27 batteries including wiring, breaker, 4-way selector switch & boxes
1 x Bilge pump – 1600 GPH pump – automatic on/off
1 x Brackets for transducer and anode (1), plus weld-on teardrop anodes (2) under hull
2 x Cabin (interior) lights
1 x Cabin top handrails

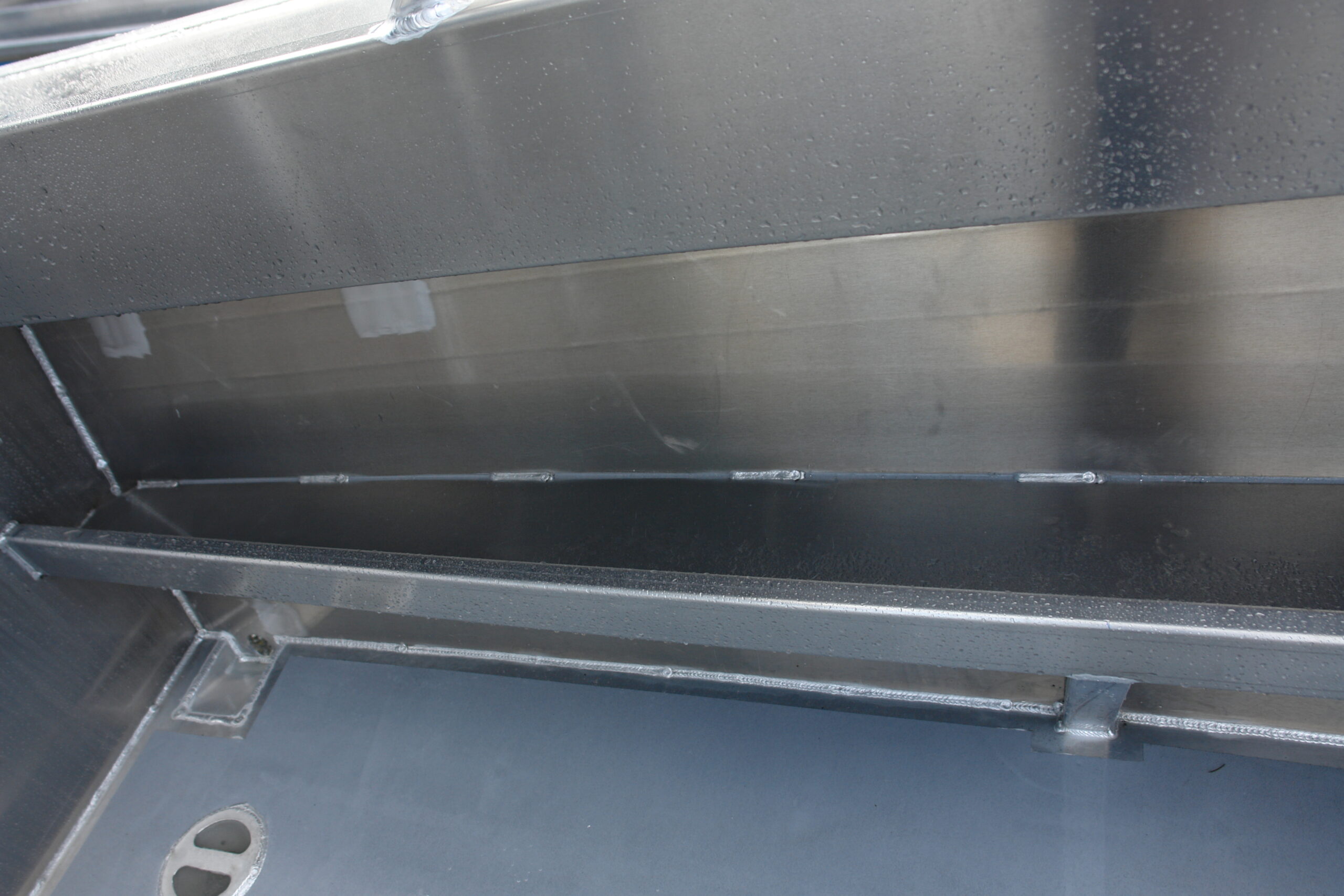

1 x Chines & gunnels fully welded
1 x Closing storage in transom (locking battery compartment)
1 x Cockpit light (LED) in welded housing
4 x Cup holders
3 x Drain plugs

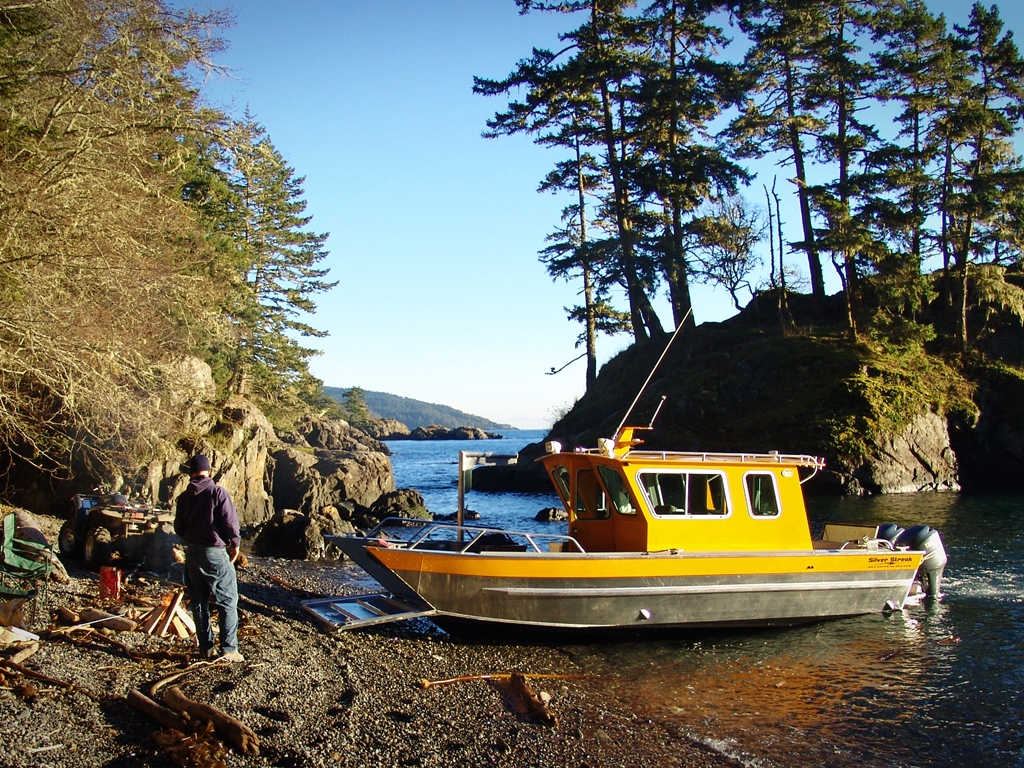

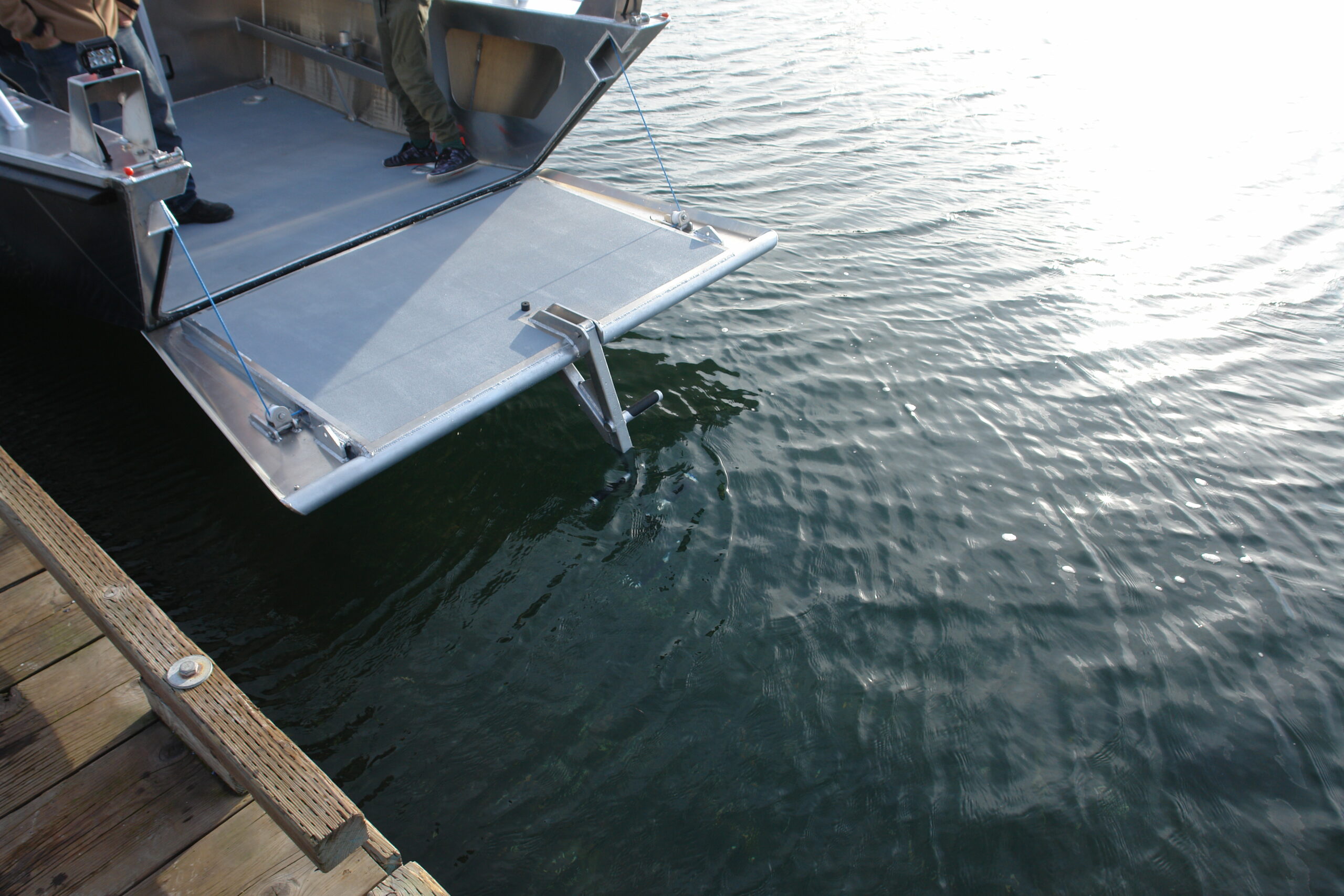

1 x Drop down bow door (5′-11″ width) with electric winch, double pulley system, safety lock & gasket
1 x Electric trim tab set (18’W x 12″L)
2 x Electric wipers – heavy duty wipers with self park & switch

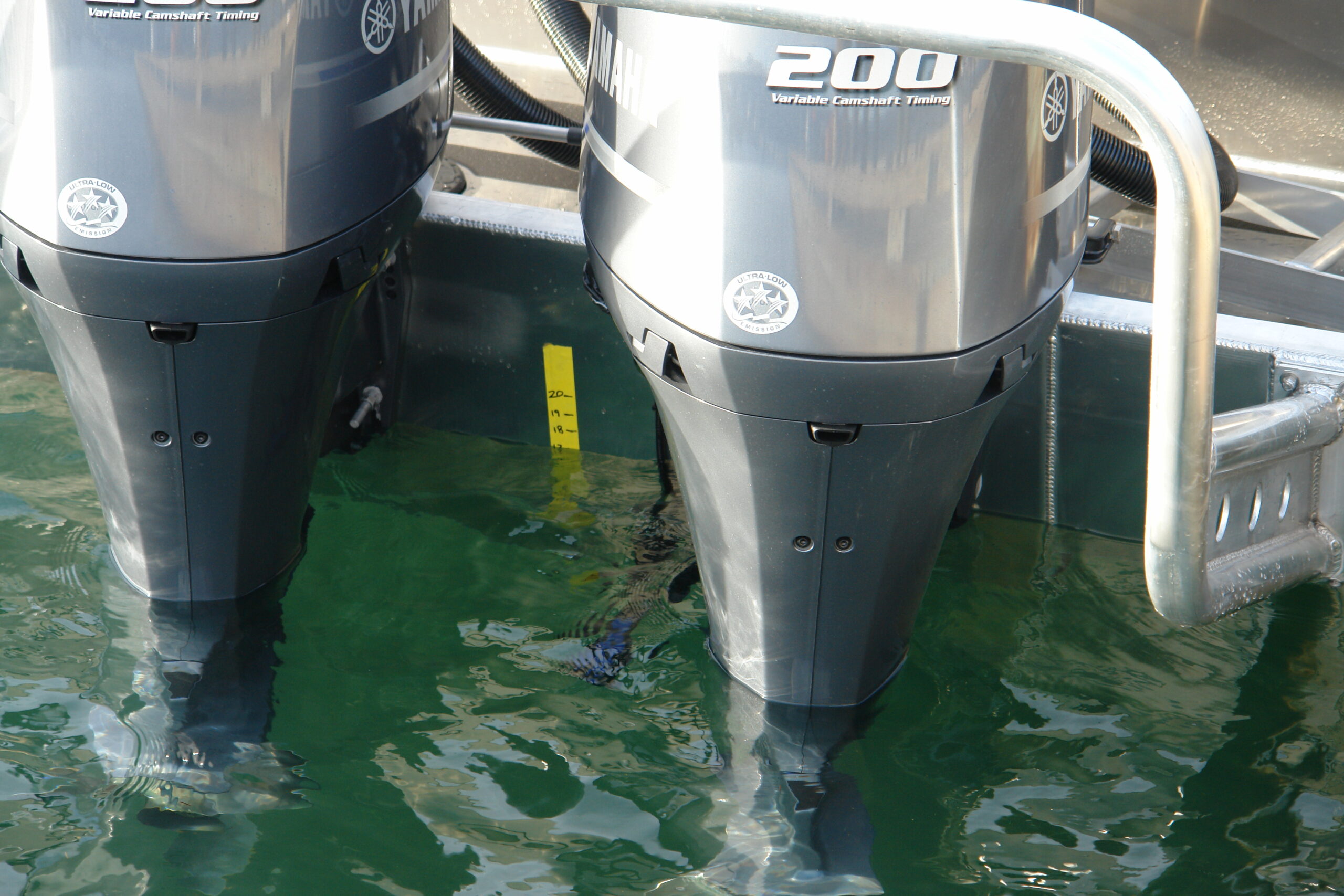

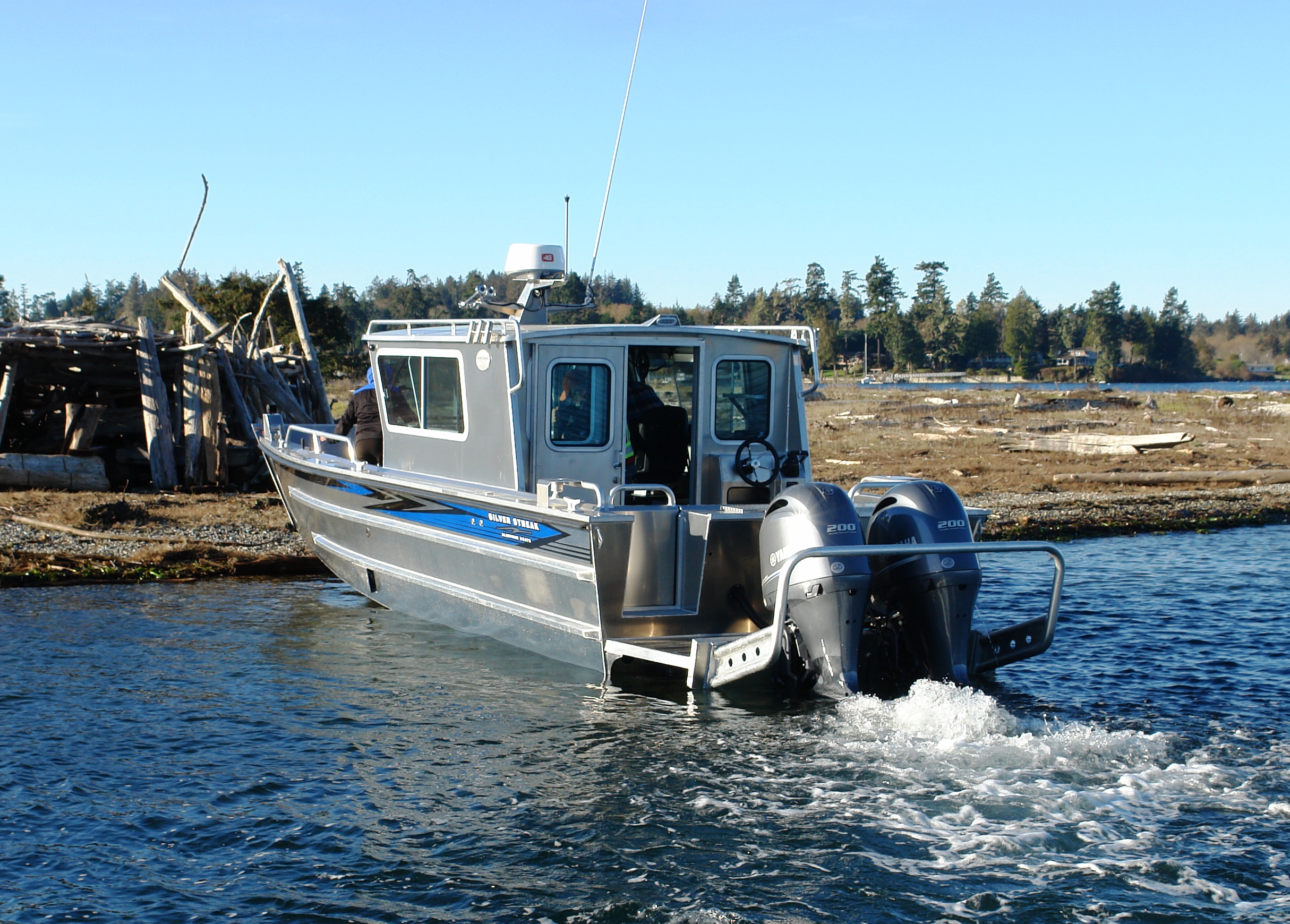

1 x External motor bracket for twin 30″ engines with auxiliary mount and full-width transom
1 x Fish box in rear gunnel with cutting board
1 x Flotation – closed cell polyurethane spray foam under decks & gunnels
2 x Foot rests on forward bulkhead (fixed/welded)
1 x *Fuel tank (85 Imp Gal/102 US Gal) w/ fuel gauge – built in under deck

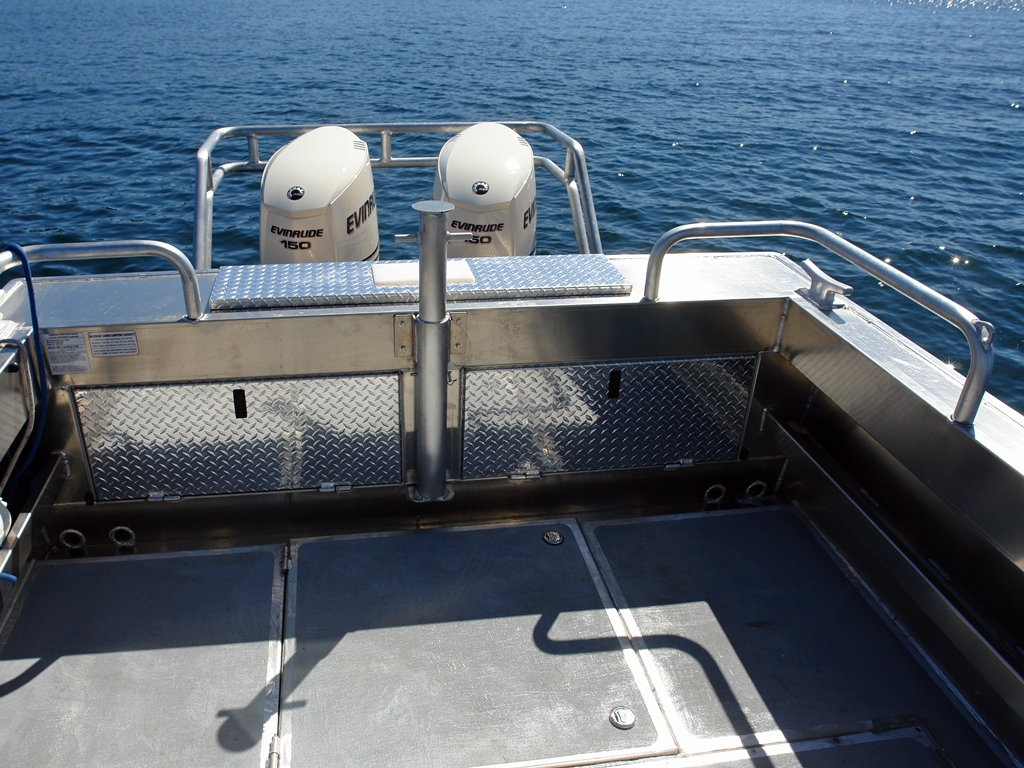

1 x Fully welded aluminum self-bailing cockpit deck with inspection hatches for fuel connections & wire ways
1 x Glove box
1 x Heavy duty custom hull graphic
1 x Horn – twin compact (stainless steel)
1 x Keel guard on hull bottom (beaching wear strip)
1 x Navigation light(s) (LED)
1 x Non-skid paint on aluminum deck

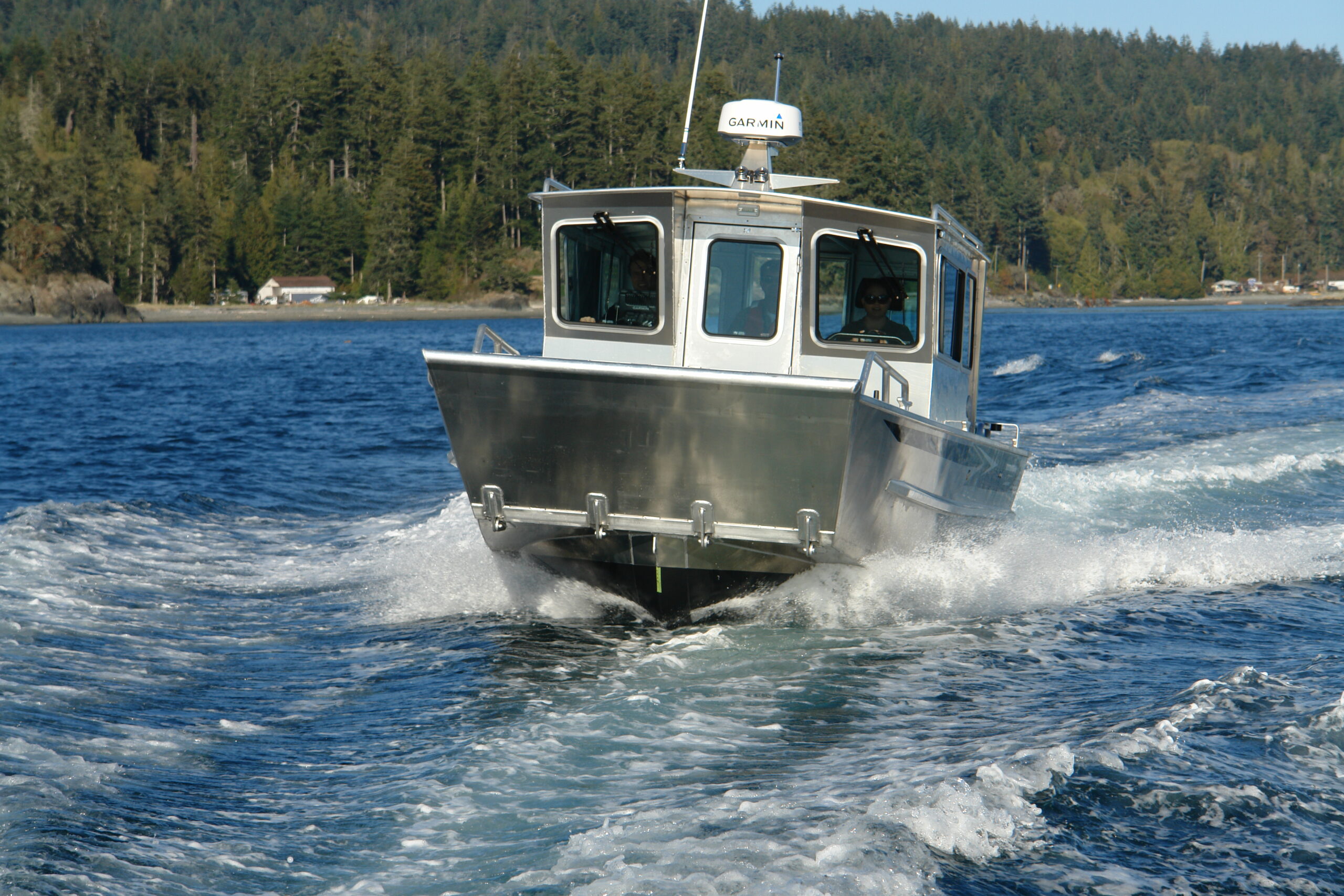

1 x Radar post with antenna wings
1 x Seat slide (helm)
2 x Side stiffeners (per side)
1 x Side storage trays in cabin & cockpit
1 x Steering for twin engine, single station – hydraulic
2 x Storage bench seats (vented) with vinyl upholstery & backrests
1 x Tie-down anchor points (x4) on forward deck for securing load

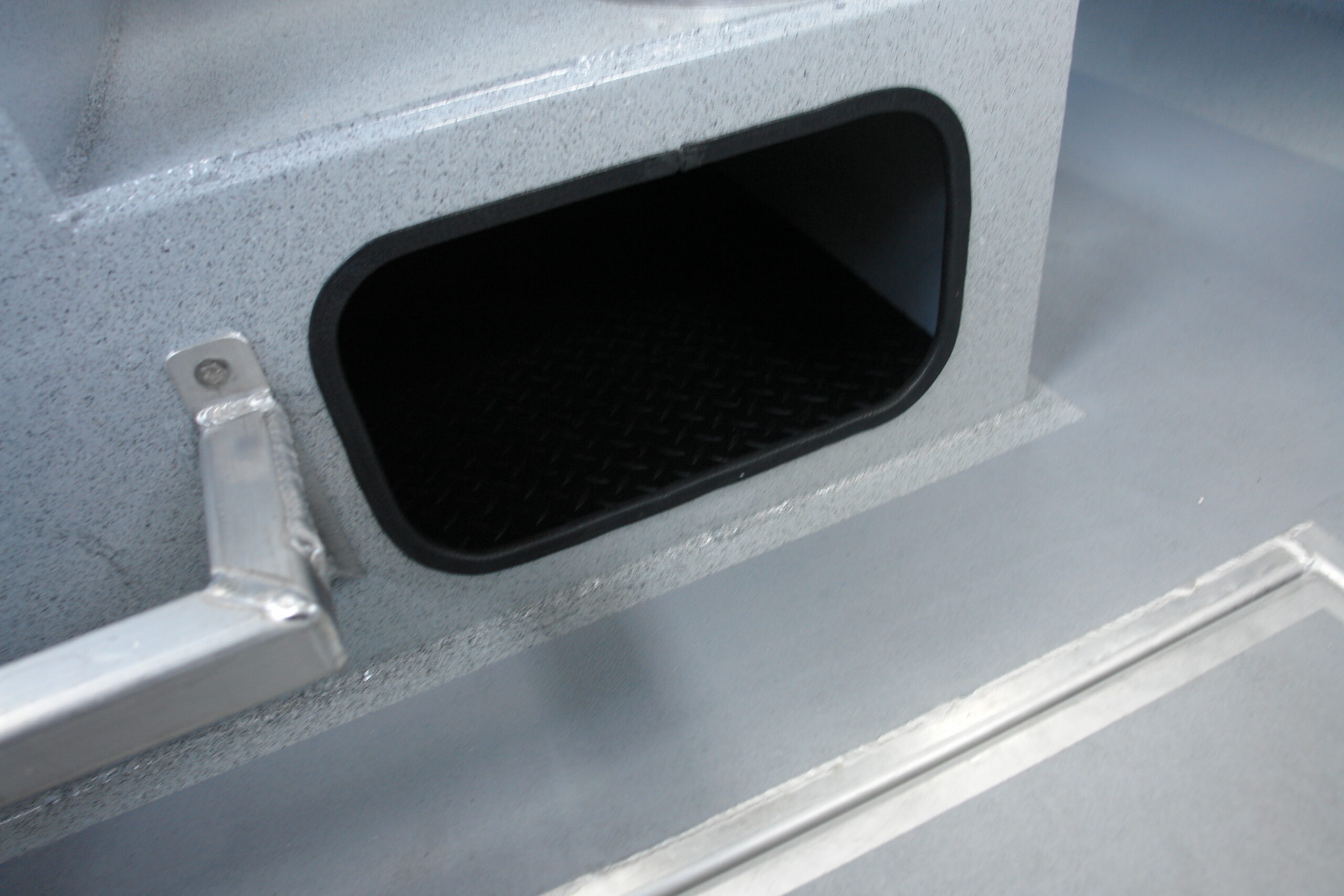

1 x Under deck storage compartment in cockpit deck
1 x Under deck large storage compartment with hinged door in cabin

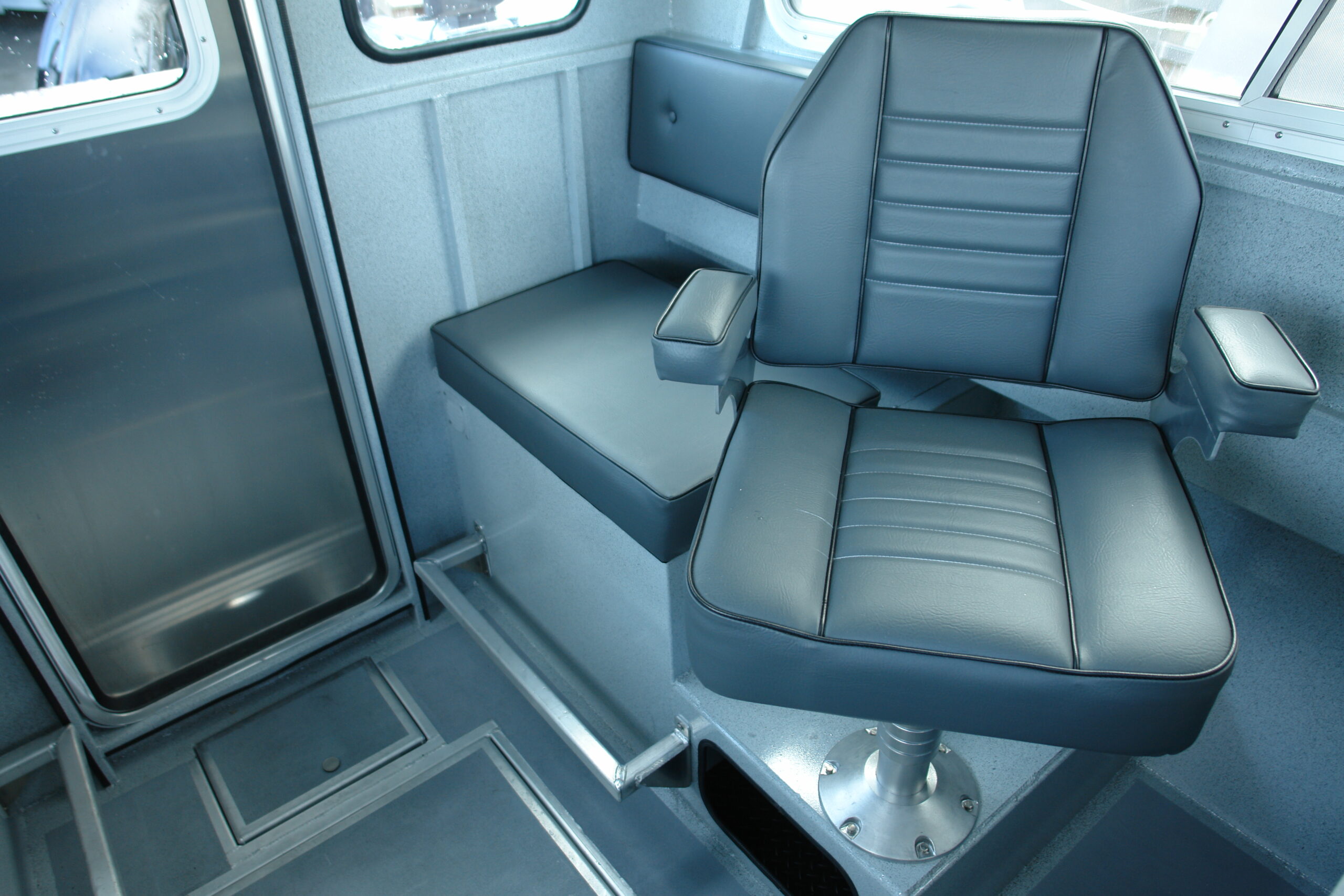

2 x Swivel Seats – Barry Marine vinyl upholstered (LG) on shock absorbing Back Saver pedestals
3 x Welded bow and transom eyes with stainless steel inserts

26′ Landing Craft Cabin – San Juan Standard Specification

Capacity (People): 8

Horsepower Minimum: 225 Twin

Bow Door Width: 5'-11"

Cabin Size: 84" x 91" x 80"

Beam: 9'-5"

Freeboard: 44"

Dead Rise: 16°

Bottom Width: 8'-0"

Hull Weight: 2,900 lbs

Bottom Plate: 1/4" 5086

Side Plate: 3/16" 5086

Fuel Tank: 85 Imp GAL

Tow Weight: 7,656 lbs

Forward Deck Size: 118 9/16" x 71"

Aft Deck Size: 63 3/8" x 88 5/8"

Make It Yours - Available Customization Options

Exterior
Interior
Nav & Electronics
Fishing
Power
Docking
Technical
Delivery

Cabin
Aluminum folding steps	(2) Folding steps to access cabin top
Cabin extension	1' to 3' cabin extensions with glass & upholstery
Cabin top brackets	Cabin top brackets for traps/kayaks
Cabin top extension	Addition of an 18" overhang extension

Windows And Doors
Heavy duty aluminum-framed window
Fly screen	Fly screen for sliding windows (both sides)
Solar film on front windows
Side entry door
Sliding door	Sliding door on aft cabin (upgraded from a hinged door)
Transom exit door

Electrical
Horn (stainless steel) options	Stainless steel single, twin or trumpet horn installation/upgrades available

Lighting
Cockpit lighting	LED light in welded housing
Transom light	Small flush mount (LED) light installed on transom
Spotlight and mount
Docking lights	x2 LED docking lights

Paint And Finish
Bottom paint	Trilux II bottom paint available on all models
Clear coat protection	Sharkhide clear coat will help keep the sheen of your boat and protect the hull
Boat name decal	Available on sides (2) of all boat models. Also available: boat name and place decal on transom
Zolatone paint with clear coat	Zolatone paint on the interior and/or exterior of cabin, soft top & cockpits. Available on all boat models.

Seating
Jump seat	Side mount jump seat

Deck Washdown
Deck wash down pump	Hose and sprayer conveniently located in side gunnel
Extra hose connector	Extra hose connector for wash down forward of cabin

Safety
First aid kit
Fire extinguisher	Various makes and models available
Boat hook	Telescopic 8'-0 boat hook
Life jacket	Various sizes and models available
Life ring and holder	30" life ring with 50' line & holder
Flares	Additional safety option
Paddles	Available in 4'-5" and 5'-0" options. Also available: horizontal paddle holders
Small vessel safety kit
Throw line

Cabin
Closet	Closet with a welded aluminum door
Cabin vent	For galley options

Galley
Galley	Galley with powder-coated aluminum cabinet with cupboards, drawers, shelf, counter-top & side table. compact or regular sized galleys available
Bus heater	Available with defroster and fan(s)
Cook top stove	Alcohol or diesel stoves available
Refrigerator	Various models and sizes available
Sinks	Manual and electric options available
Galley package	Galley package - powder-coated aluminum cabinet with drawers, DC refrigerator, sink, diesel cook top stove, electric tap set & 9 Gal holding tank

Settee
Settee	2 or 4-person settee, with drop down table, storage cupboards & vinyl upholstered seating including backrest cushions
Table	Table on single pedestal with flush pedestal socket (or removable quick release option also available)
Settee upgrade	Settee upgrades available: - extend dinette width for double bunk. - reversible backrest on forward dinette seat.

Headliner
Headliner velour	Cabin top velour headliner
Insulated & panelled headliner

Head And Shower
Hot water holding tank	10 GAL with 3-way valve, deck clean-out and mascerator pump *required in US only
Curtains in head	Canvas privacy curtain in marine head
Marine head	Electric or manual options available
Head compartment	Stand-up head compartment with exterior vent, door & latch
Head options	Available options: - Shelf in head compartment - Shower head - hot /cold flush with drain sump including pump - Sink in head - electric or manual taps including pump
Hot water	6 GAL hot water tank for domestic hot water
Non-skid paint in head	Add security to the flooring with textured paint

Heaters
Diesel tank storage box	Storage box below aft helm (aluminum) for diesel tank. Also available as a storage box/foot rest with lid in front of helm seat for bus heater
Hydronic heater/hot water - diesel hydronic coolant heater	Hydronic heater/hot water with (2) blowers and diesel tank
Diesel heater	Various diesel heater options available

Electrical
Electric fan	For cabin interior
Breaker panel upgrade	Added options and/or upgrades available
12 V Power socket	Includes USB port and LED light

Lighting
Red & white dome style light in cabin, vee berth or head	Day and night lighting
Passage way lights - low level LED's	Available on models with enclosed cabins

Seating
Bench seat cushion & backrests	Upgrade your boat to have some extra seating
Armrests

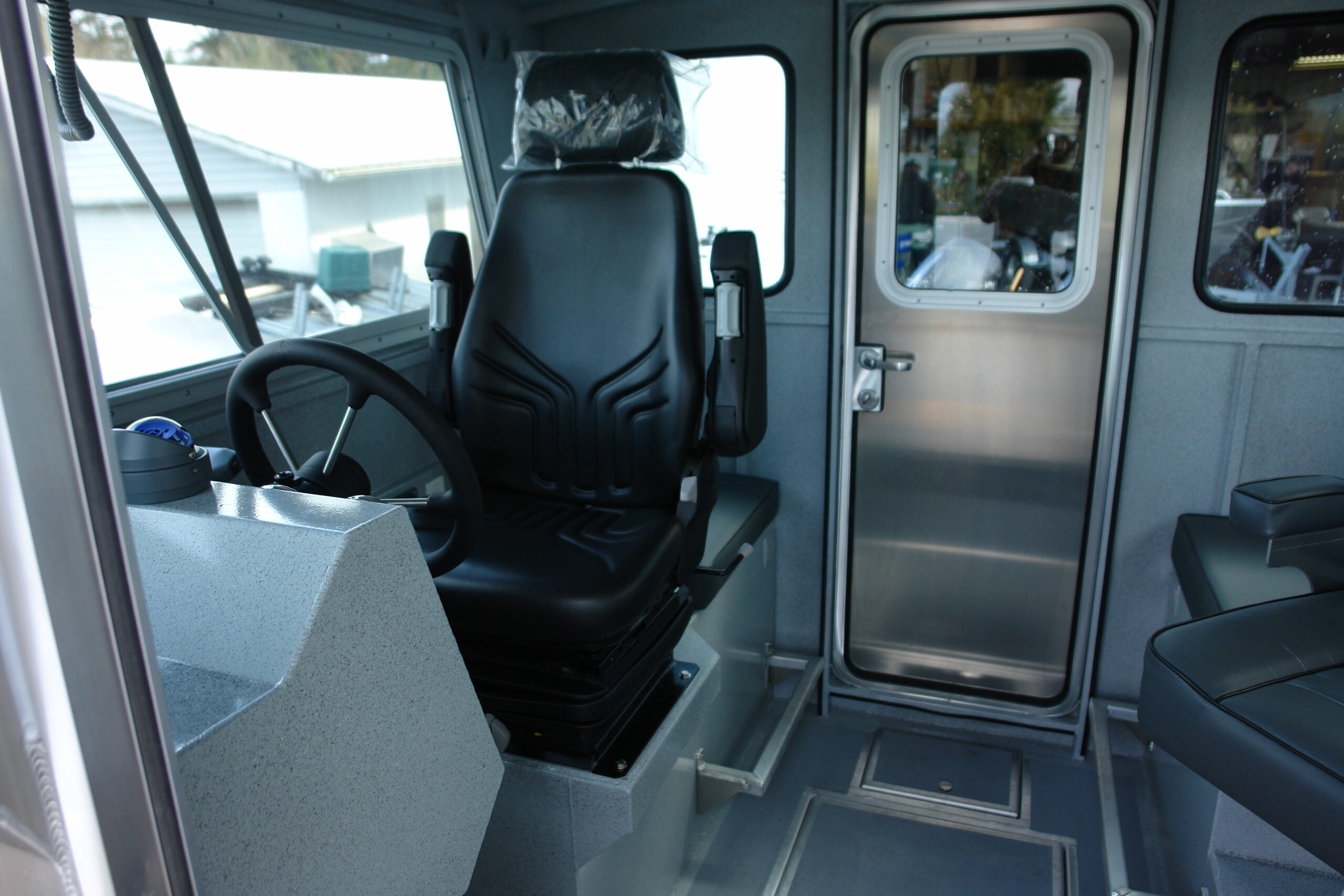

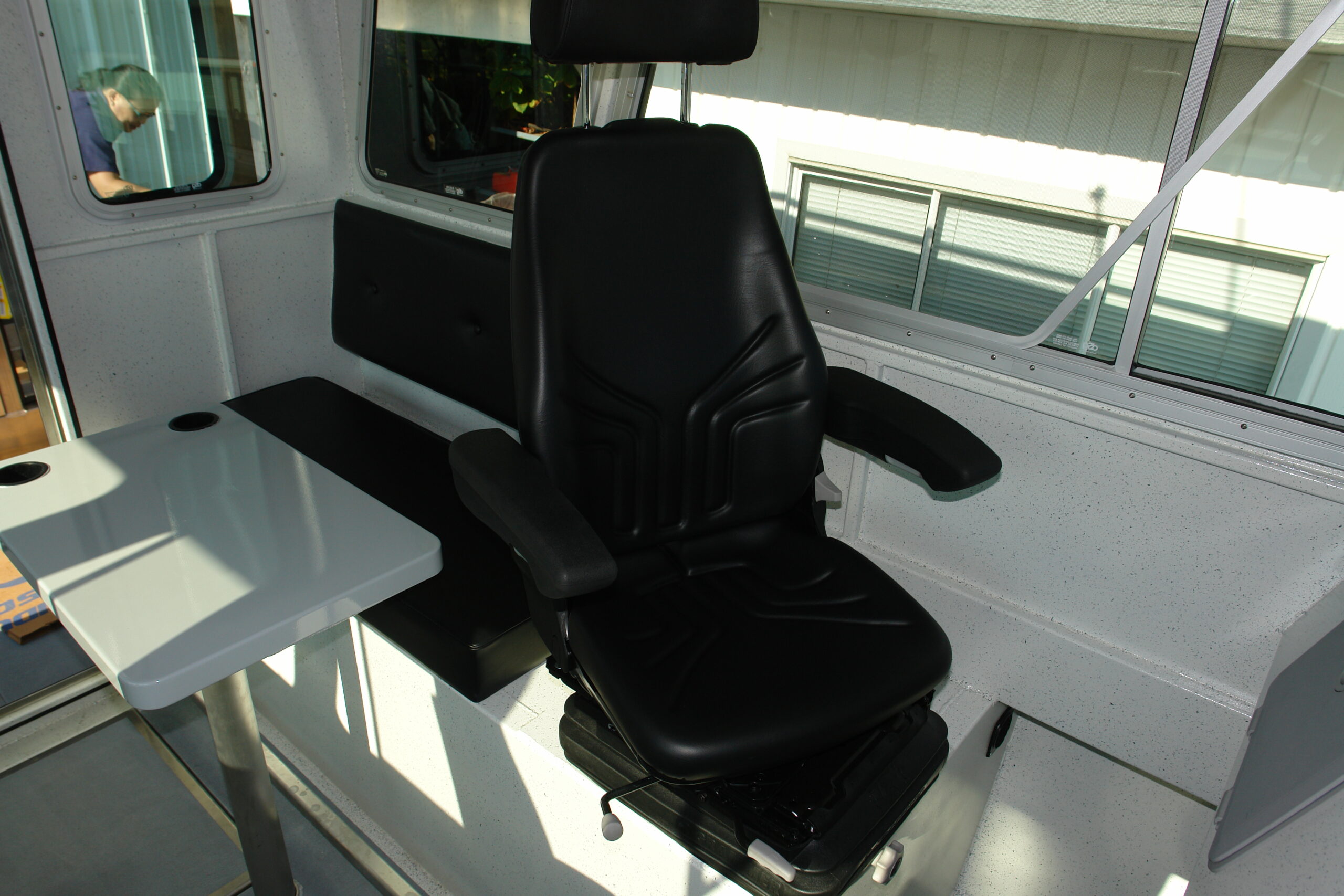

Grammer suspension helm seat	Suspension helm seat with high back, arm rests & swivel
Jump seat	Side mount jump seat
Seat slide

Electronics

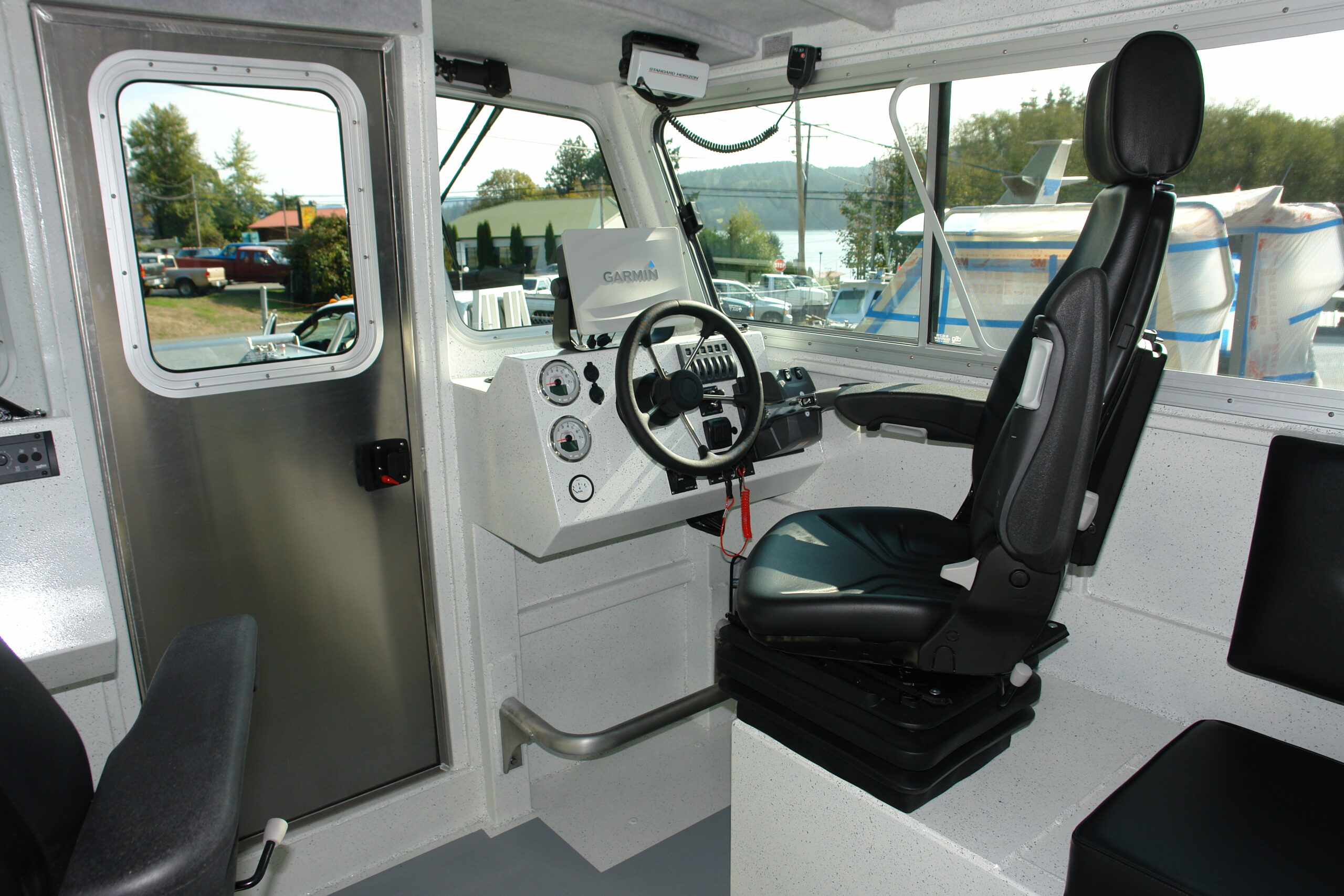

Garmin GPSMap	Different models to choose from
Compass	Ritchie dash mount compass
VHF radio	Various models available, both handheld and fixed-mount.
Garmin map chip	Available for various locations
Garmin radar	Placed on roof top radar post
Additional speakers	Additional speakers in cockpit or cabin
Horn (stainless steel) options	Stainless steel single, twin or trumpet horn installation/upgrades available
Stereo and speakers

Batteries
Battery monitor

Lighting
Spotlight and mount
Docking lights	x2 LED docking lights

Breaker Panel
Breaker panel upgrade	Added options and/or upgrades available

Safety
Flares	Additional safety option

Downriggers
Downrigger cannon ball holders	Made by Scotty Plastics
Scotty accessories	Available options: - electric receptacles - powerlock rod holder - swivel mount
Scotty downrigger	Scotty depthpower 30" or 60", includes swivel, cannonball holders & plug wiring

Crab Pot Pullers
Crab pot puller	Ace Line Hauler crab pot puller (100 lb), mounted with power plug, or supply only

Rob And Net Holders
Net holder - welded
Rod holder - 2 sets of 3 welded holders bolted to cabin top sides	Upgrade to powder-coated to match
Rod storage
Rod holders - welded (bolted) to awning/arch

Steering
Auxiliary motor steering	Hydraulic steering with diverter valves on second station console
Steering upgrades	Available steering options: - Tilt steering- upgrade - Flush mount kit for rear steering station
Dual engine	Available options: -dual engine, single station -dual engine, dual station

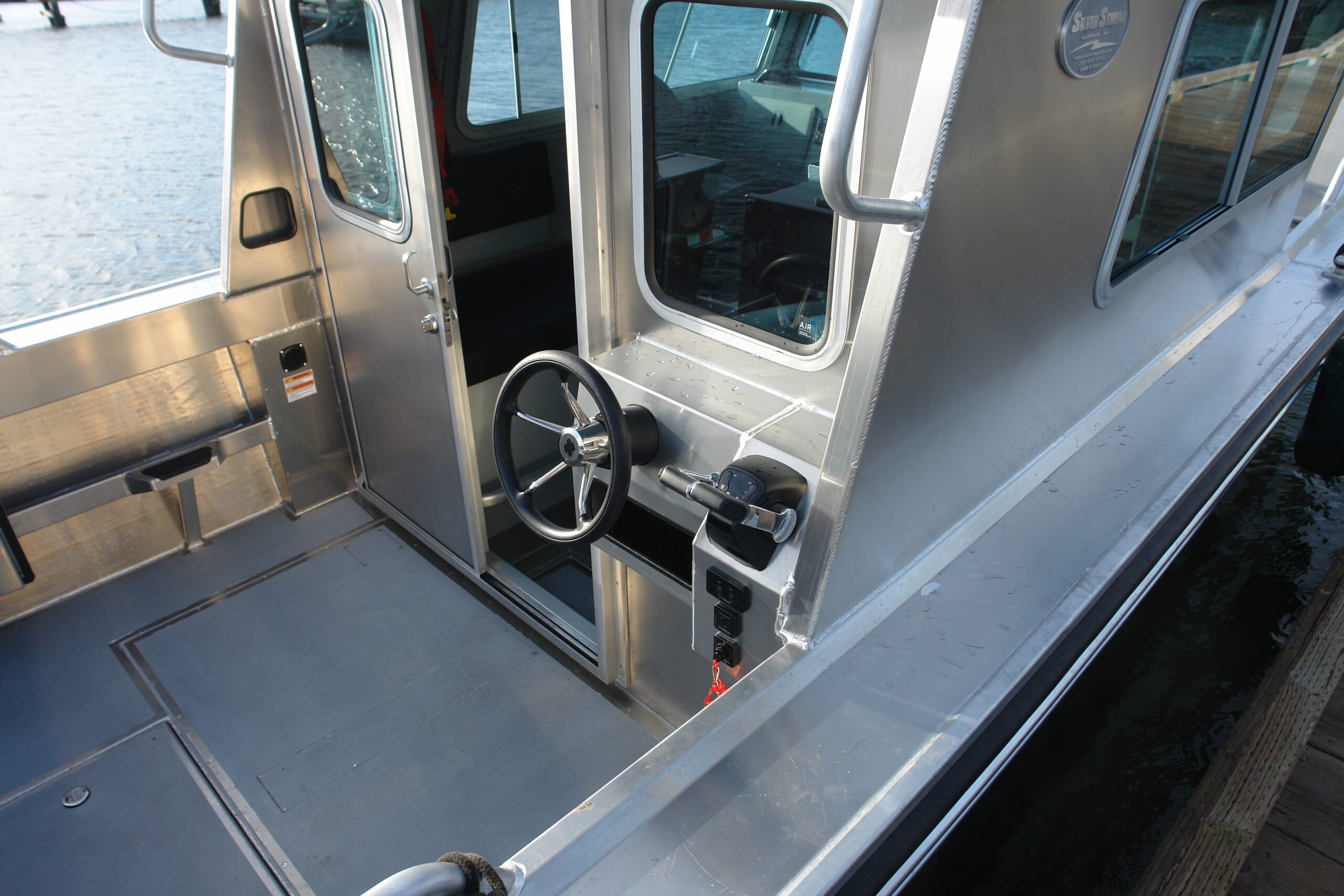

Dual station	Available options: - single engine, dual station - dual engine, dual station
Dual station steering console	Console comes with open storage bin & cup holder(s)

Dashboard Electrical
12 V Power socket	Includes USB port and LED light
Bilge blower	Provides efficient ventilation for bilges, engine compartments, galleys and heads

Propellers
Propellor guard	Available in stainless steel or aluminum
Propellor	Stainless steel and aluminum models available

Bow Thrusters
Vetus bow thruster	Propulsion device mounted to the bow for increased maneuverability

Seating
Grammer suspension helm seat	Suspension helm seat with high back, arm rests & swivel

Anchors
Anchor	Windlass or non-Windlass anchors available in various sizes, from light to heavy duty
Anchor roller - upgrade	Various sizes and options available

Cleats
Aluminum welded cleat	Cleats available in 8" and 9" sizes
Flush mounted cleat	Cleat - flush mount (tie-down)

Fenders
Polyform fender

Shore Power
A/C Receptacles	Additional A/C receptacles
Galvanic isolator
Shore power package	Shore power with 50 ft. 30A cord, AC panel & 110V receptacle
Battery charger	Dual bank waterproof onboard charger

Lighting
Docking lights	x2 LED docking lights
Spotlight and mount

Docking
Samson dock lines

Deck
Side steps	Available options: - 2 fixed/welded to rod tray (side gunnel) - removable on rod tray (side gunnel)
Flushmount tie downs	(4) Flushmount tie downs welded to deck

Grab Rails
Handrails	Available options: -Overhead grab rails in cabin -Handrails on bow -Handrails on cabin top -3`-0`` handrails -Handrails on cuddy
Bow rails	Various sizes and configurations available
Transom handrails	Handrails on transom, with downrigger mounts & cup holders

Ladders
Swim ladder	Folding swim ladder with grab handle on transom
Ladder	Available options: - Heavy duty stern mounted dive ladder (open rung) - Stainless steel telescoping under transom 3 rung (cable steering option) - Powder coated
Cabin top ladder	Ladder to cabin top

Tow Posts
Tow post	A number of options are available, including light to heavy duty and welded/fixed or removable.

Radar Arches
Radar post	Radar post with antenna wings, available in large or small sizes
Radar arch	Radar arch on cabin top with mounting plates for electronics Available options: - removable radar arch - powder coated radar arch

Bilge Pumps
Automatic bilge pump upgrade	Upgrades available in 1250 GPH, 1500 GPH, 2000 GPH

Fuel Tank
Fuel tank (standard) increase size/per GAL

Hull
Transom exit door
External motor bracket - upgrade	Includes auxiliary motor mount and twin engine fuel upgrade (filter, vents, pick up)

Trailers
Trailer	Highliner and Roadrunner trailers available for all boats: - Single axle - Dual axle - Galvanized - With and without drum brakes - 800lb to 10,000lb capacity
