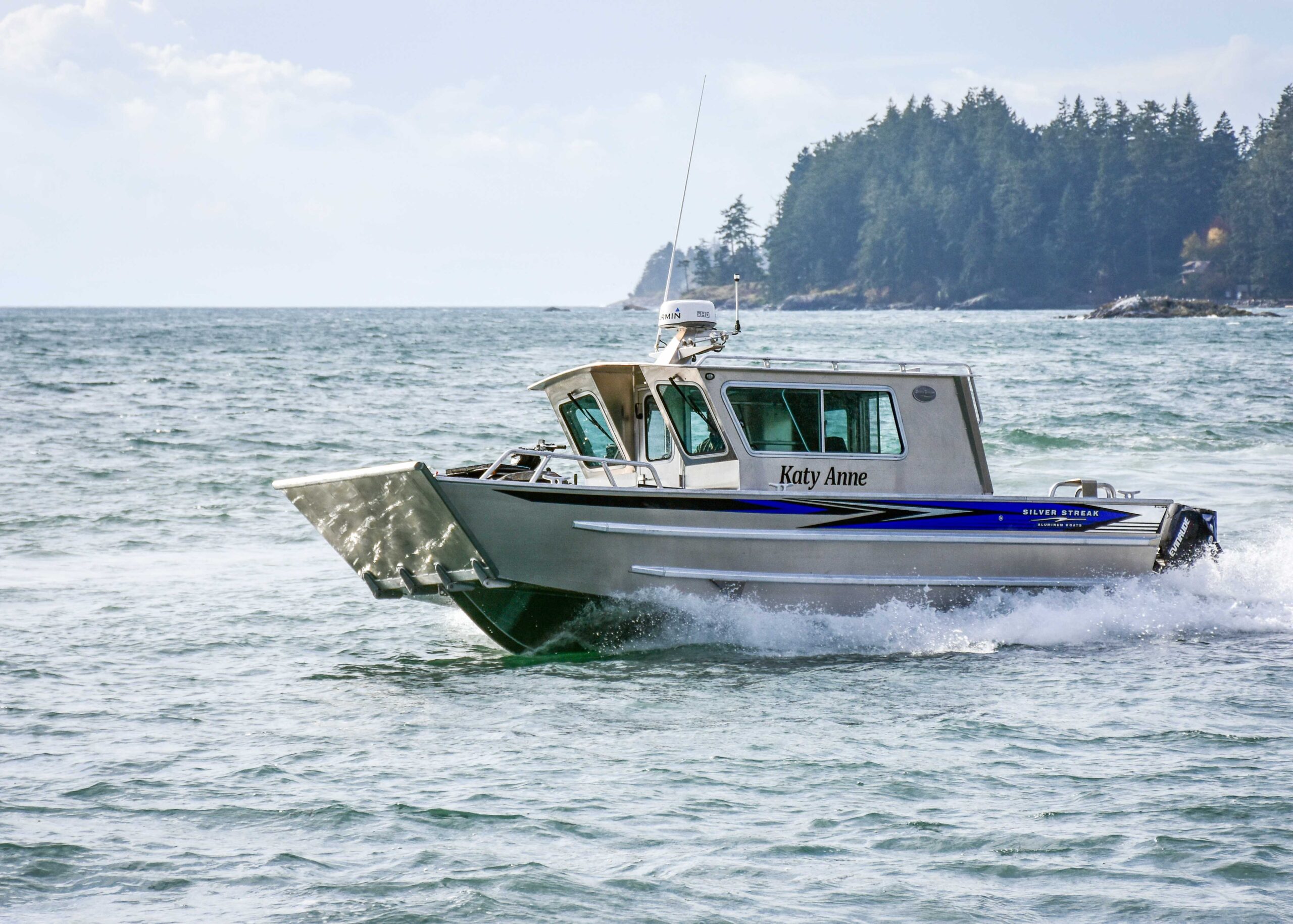

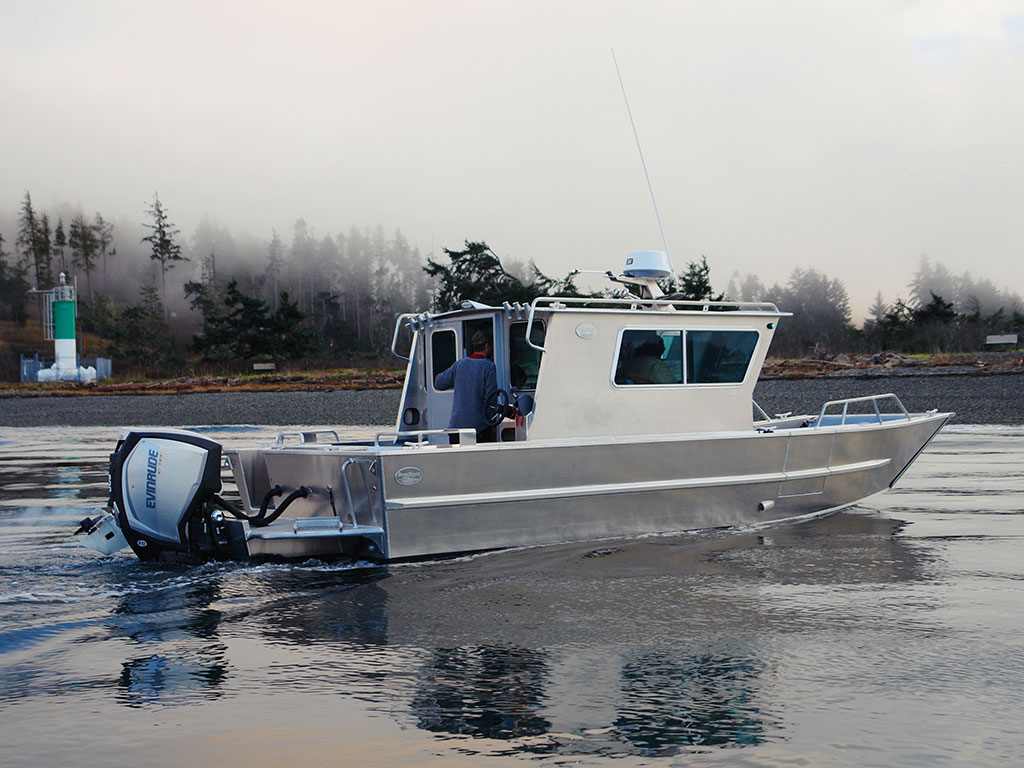

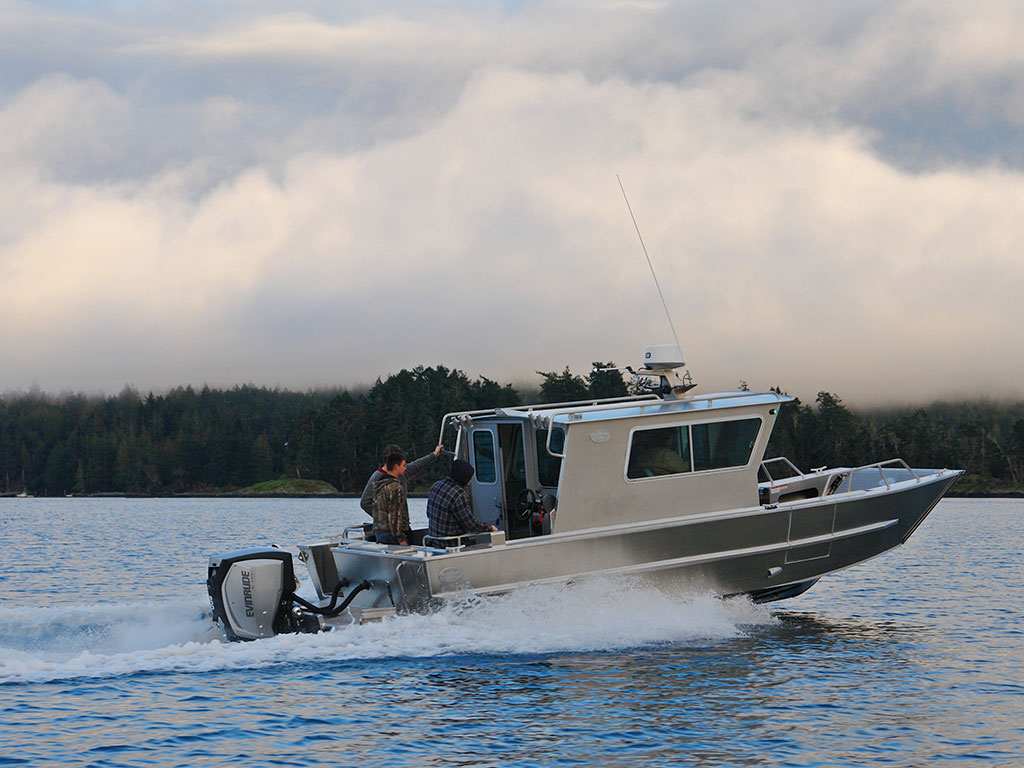

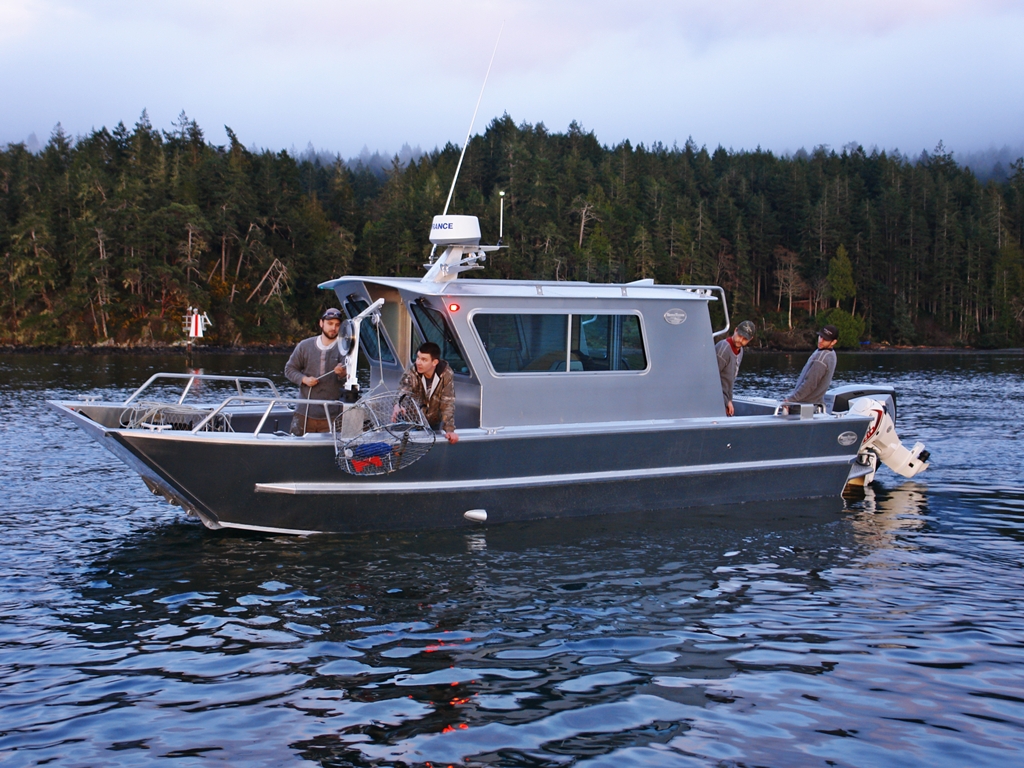

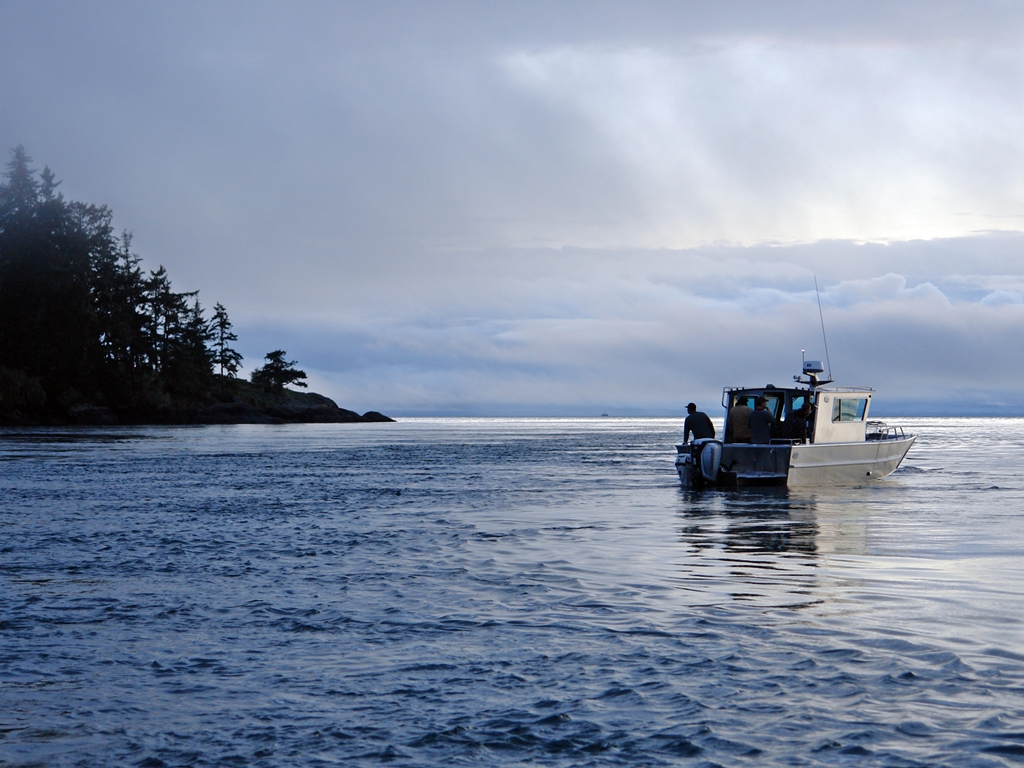

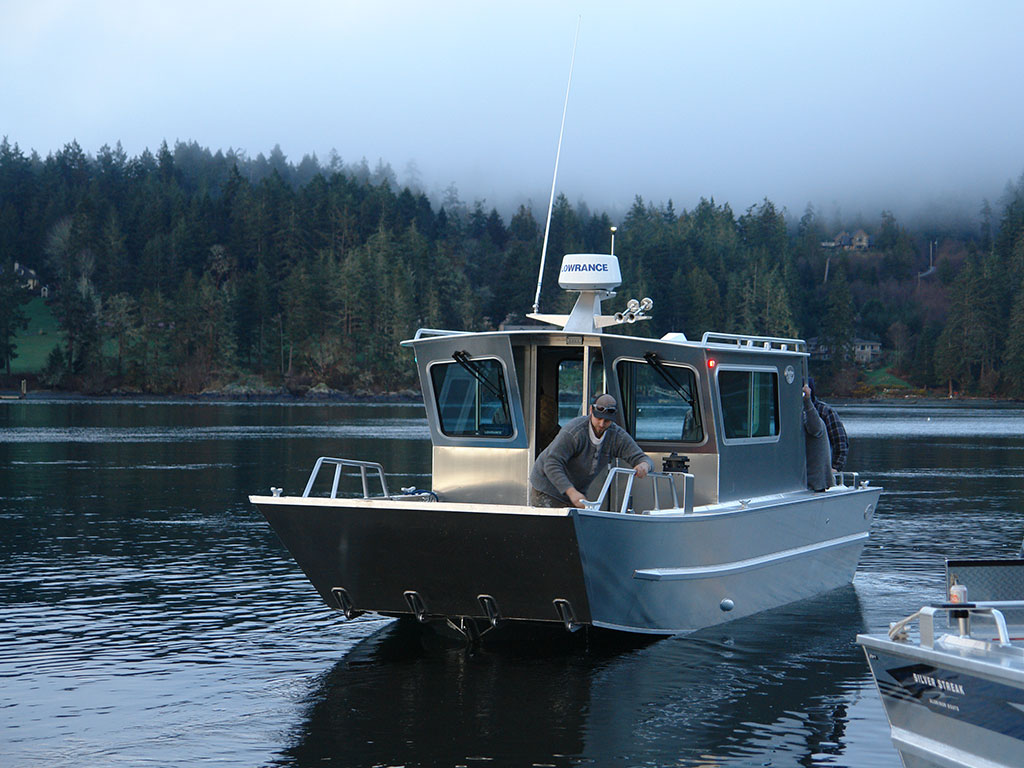

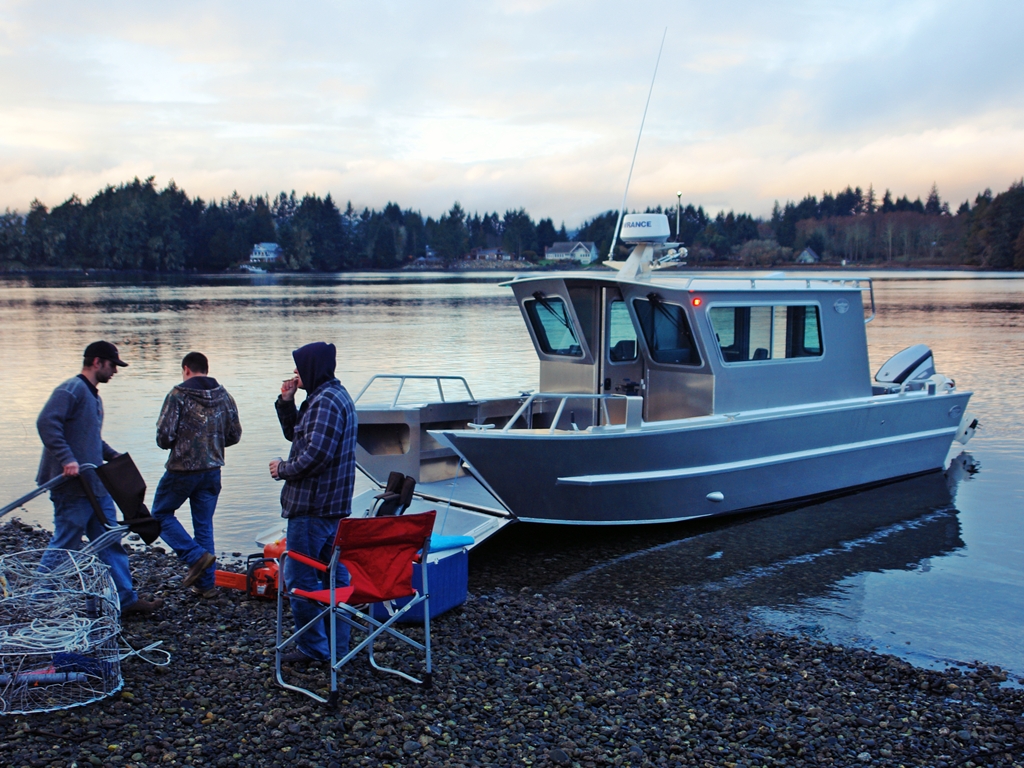

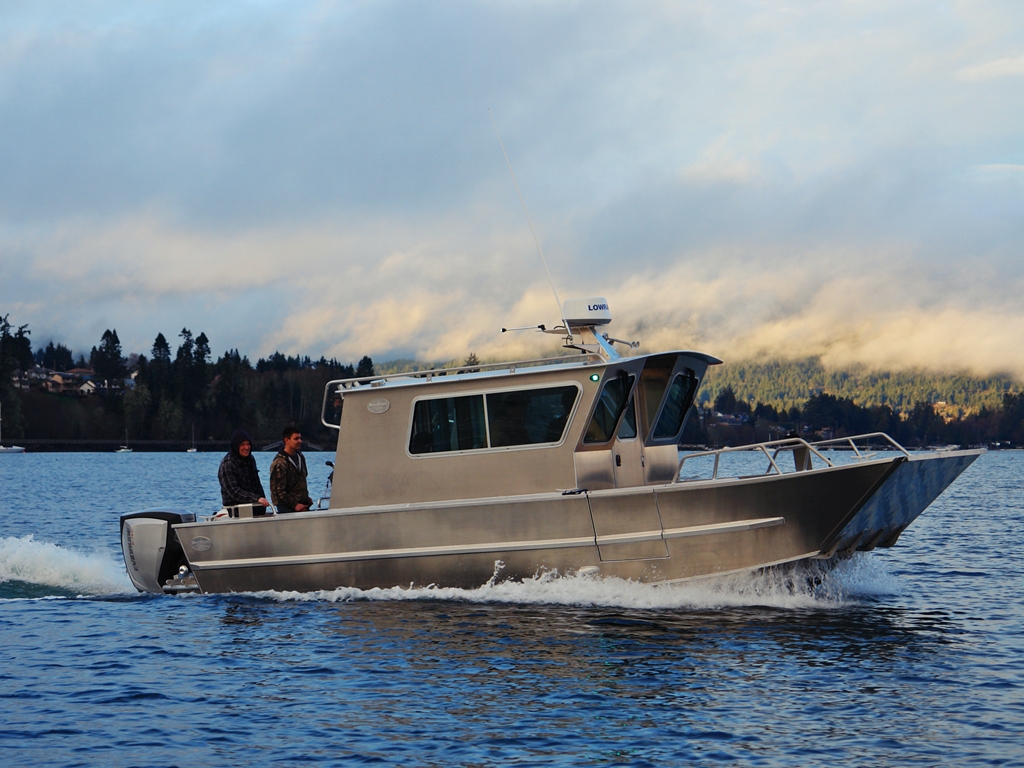

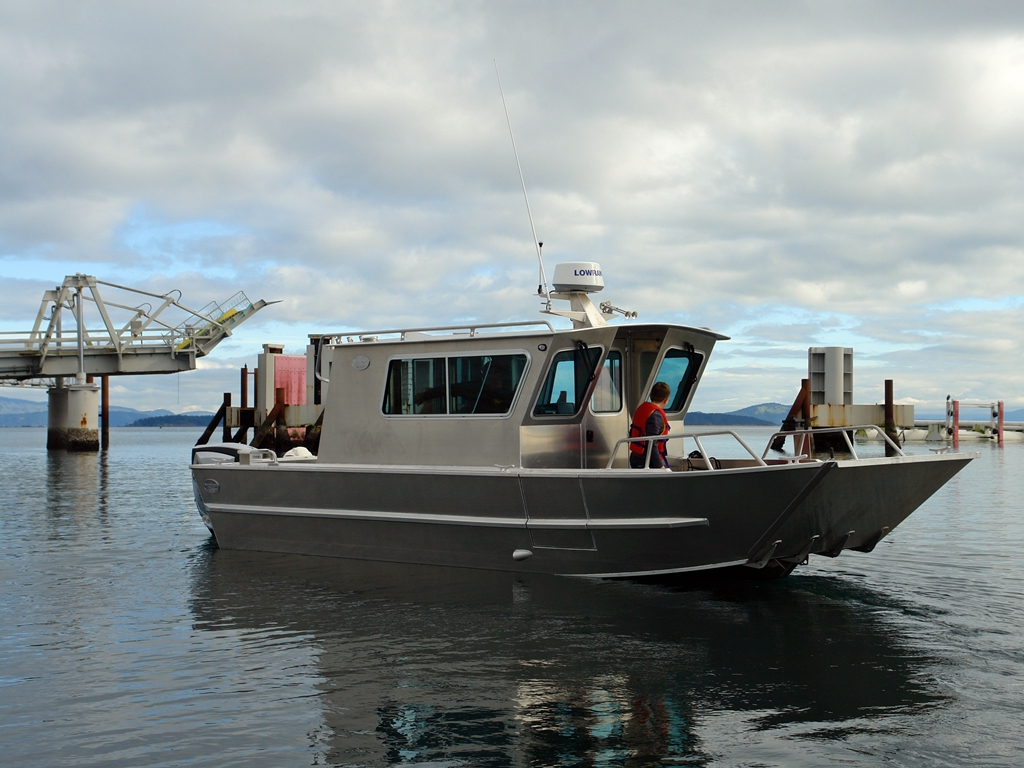

25′ Landing Craft Cabin – San Juan All Welded Aluminum Boat

About This Boat

The San Juan edition of Silver Streak's Landing Craft model was designed to be versatile in nature. Not only is it capable of hauling loads of equipment, aggregate and/or supplies but the interior also offers optional amenities such as, heaters, dinettes, kitchenettes and marine heads. This boat can be styled up with options to make it comfortable for a long trip or kept basic for use as a work boat with bench seating and captain chairs.

This Boat Is Ideal For ...

Crabbing

Exploring

Family Time

Fishing

Fresh Water

Hunting

Lake

Multipurpose

Ocean

Prawning

Standard Features List

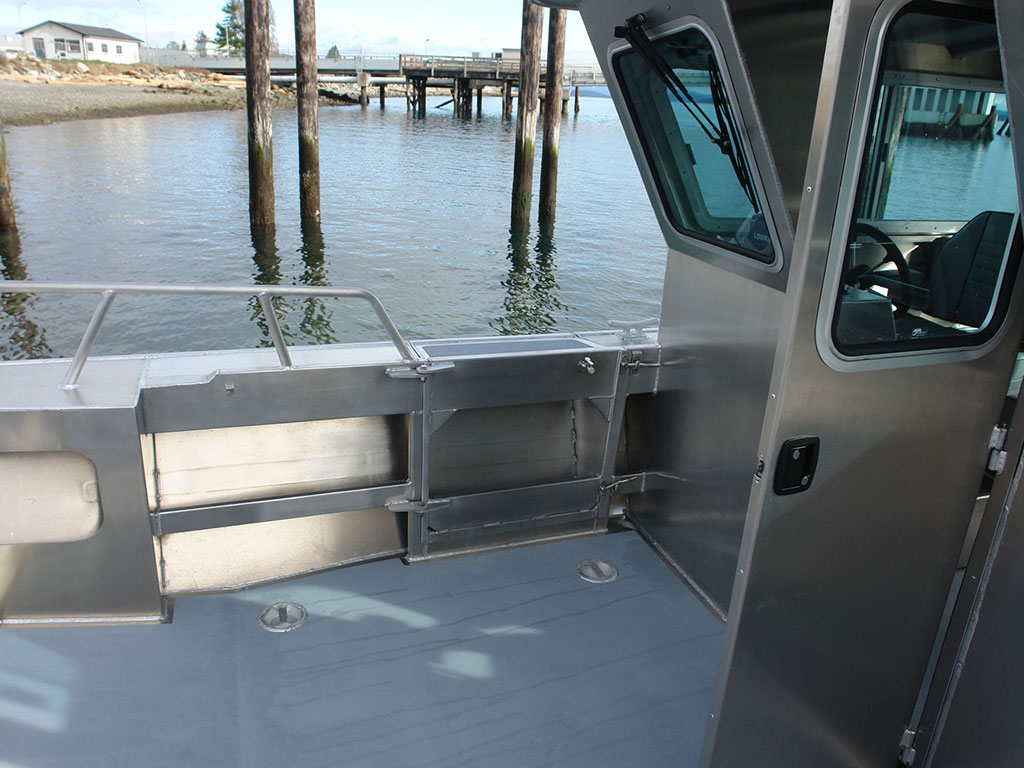

  • 1 x Fully welded stand-up cabin including (2) hinged doors fore and aft with (3) heavy duty aluminum-framed front windows, (2) sliding side windows & (3) rubber-framed aft windows

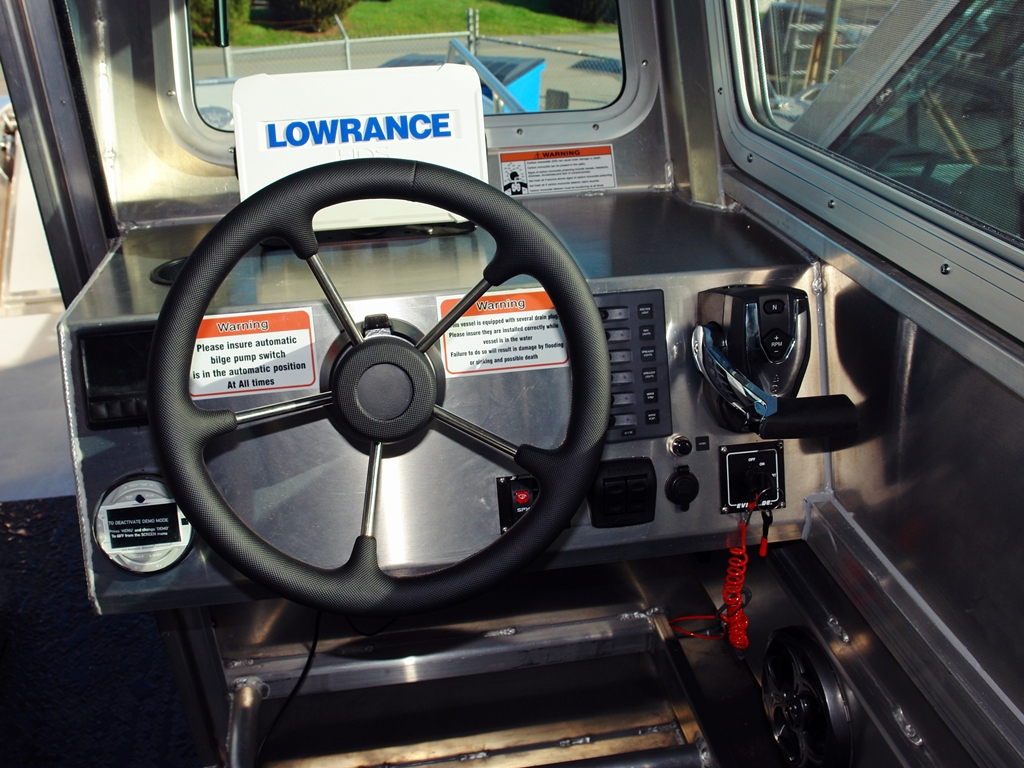

  • 1 x 6-way fused switch panel on dashboard
  • 8 x 10″ welded aluminum cleats
  • 1 x 12 V power socket with USB port & LED light
  • 1 x Battery – dual SRM 27 batteries including wiring, breaker, 4-way selector switch & boxes
  • 1 x Bilge pump – 1600 GPH pump – automatic on/off
  • 1 x Brackets for transducer and anode (1), plus weld-on teardrop anodes (2) under hull
  • 2 x Cabin (interior) lights
  • 1 x Cabin top handrails
  • 1 x Chines & gunnels fully welded

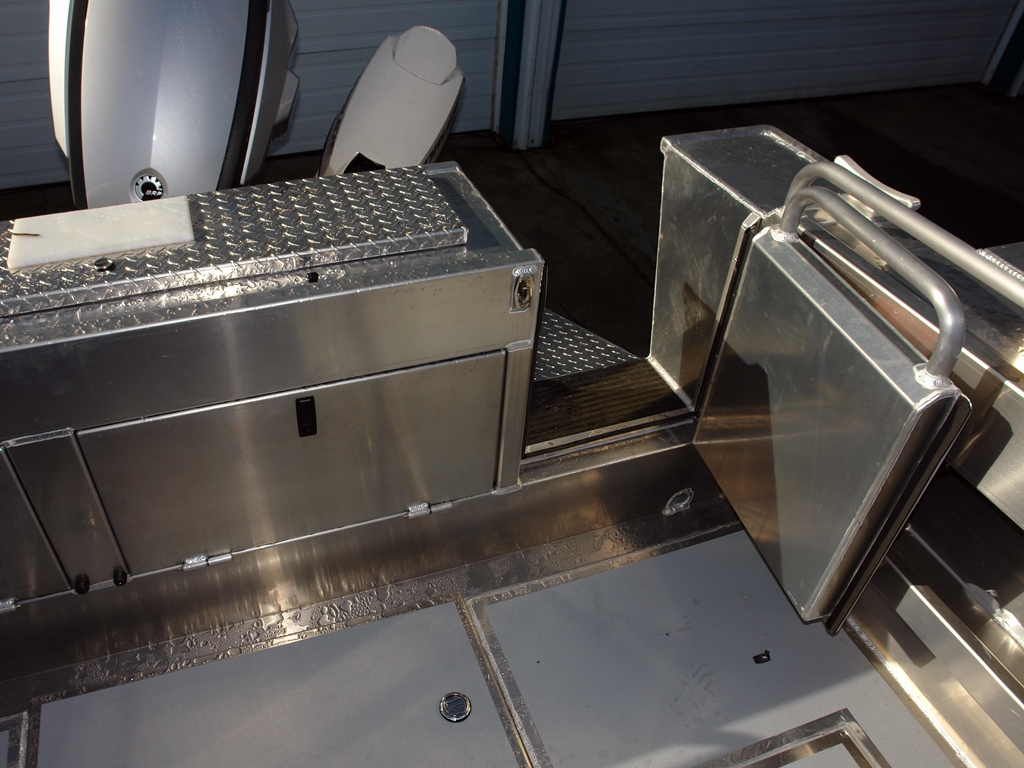

  • 1 x Closing storage in transom (locking battery compartment)
  • 1 x Cockpit light (LED) in welded housing
  • 4 x Cup holders
  • 3 x Drain plugs

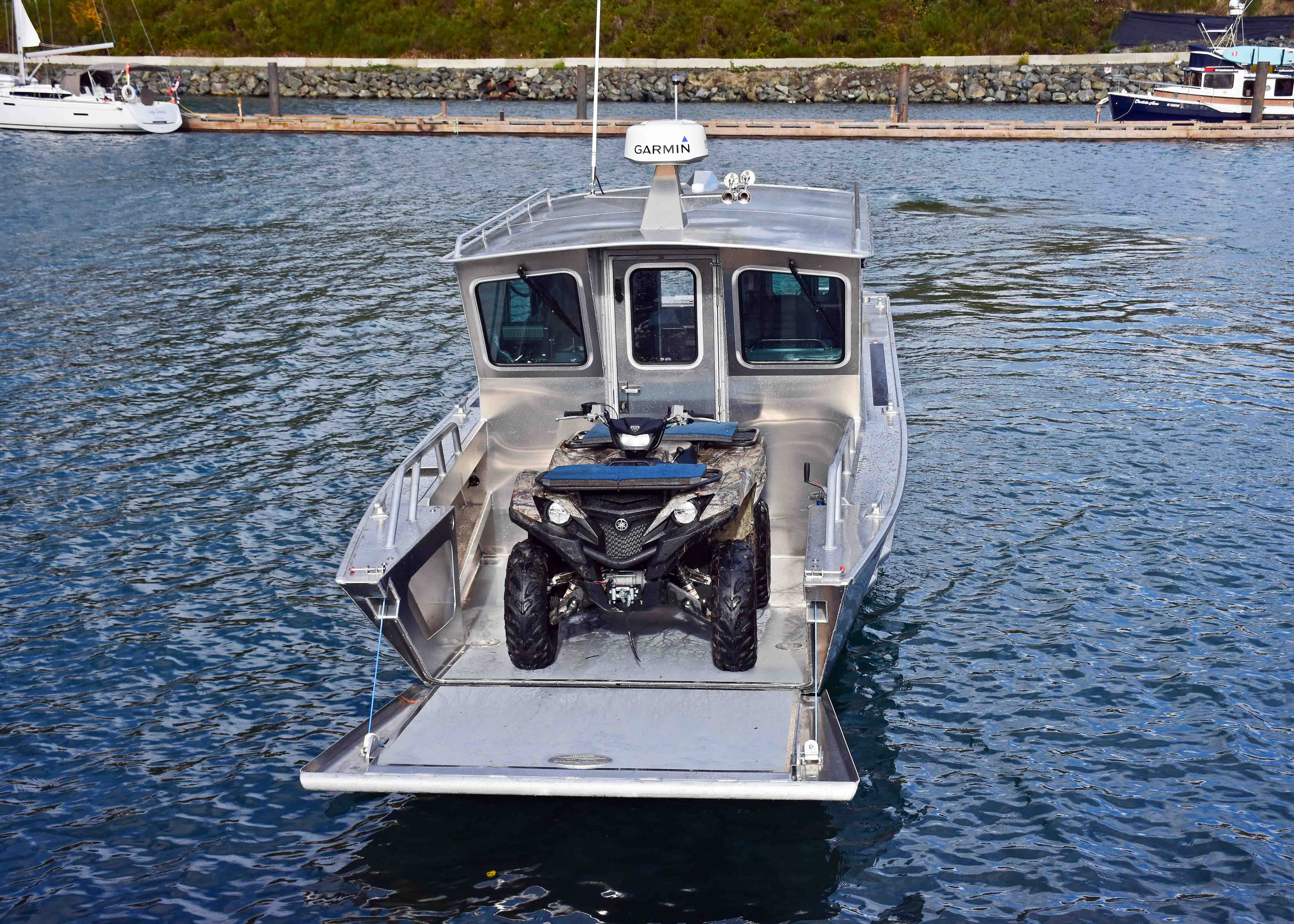

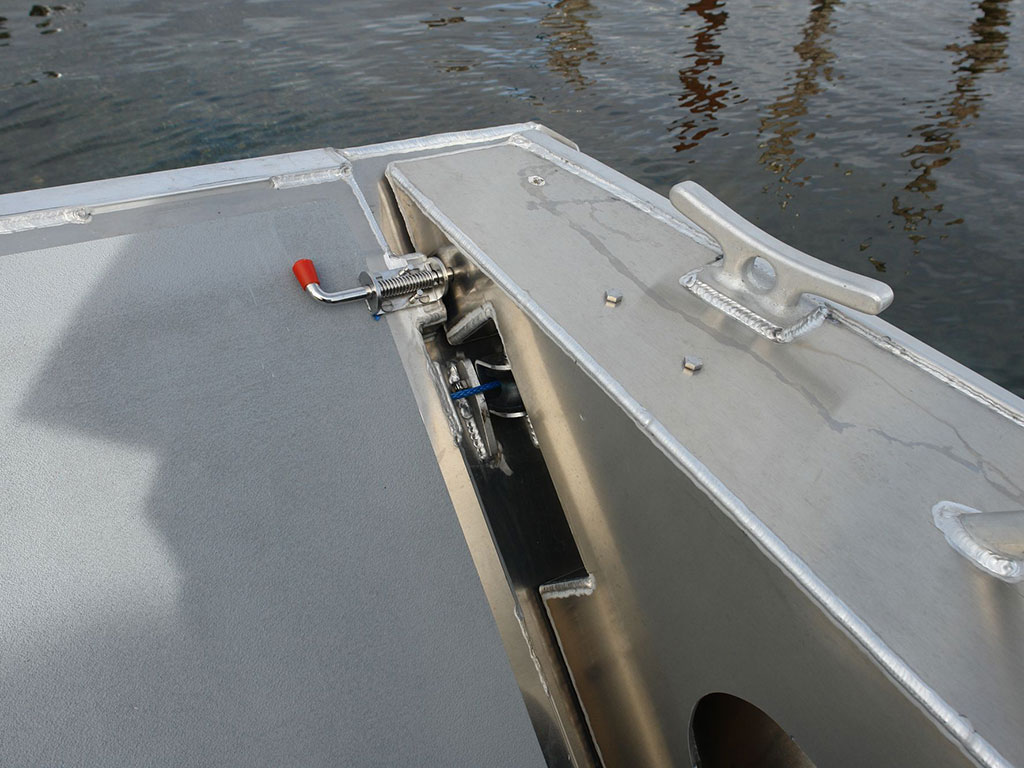

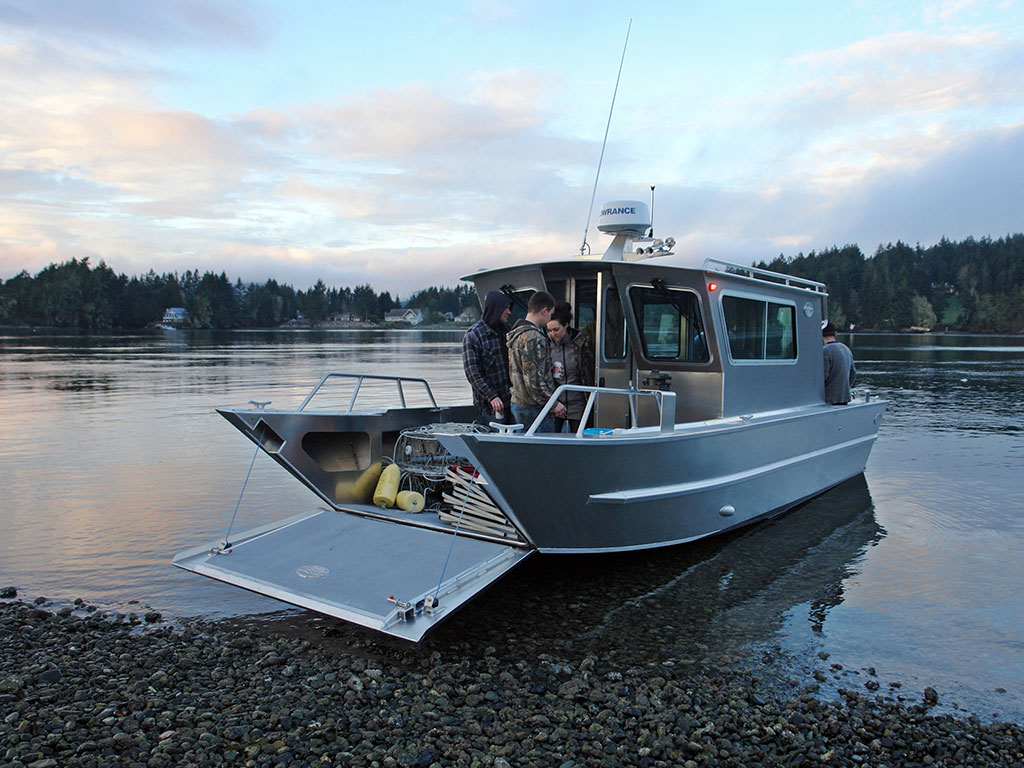

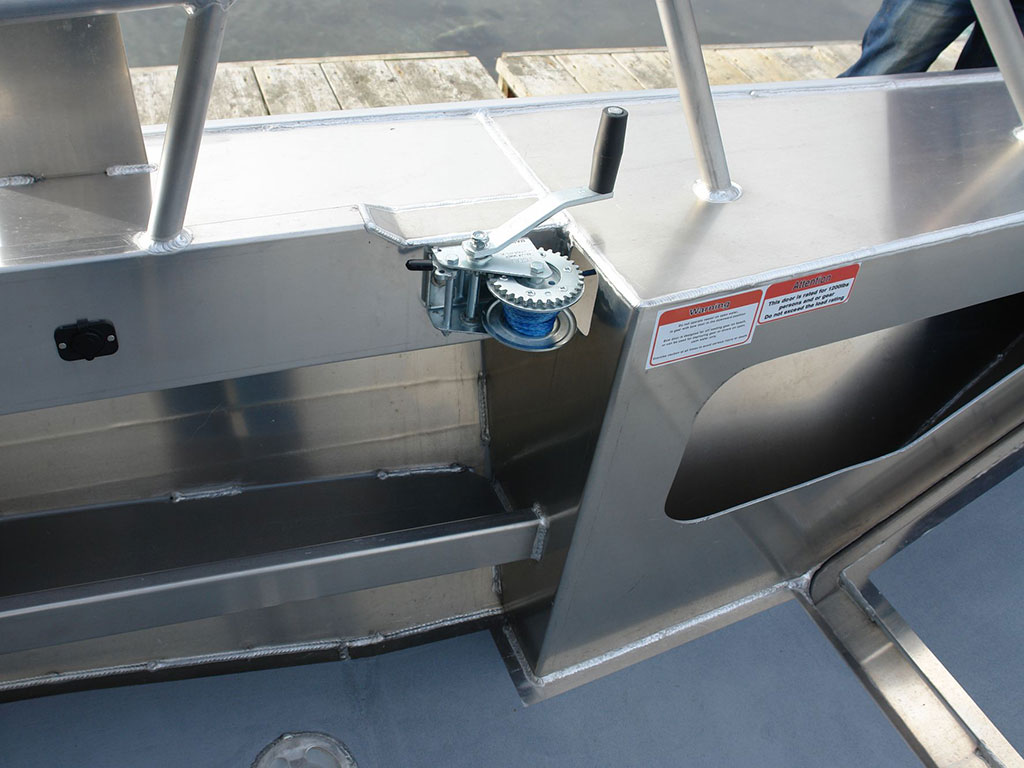

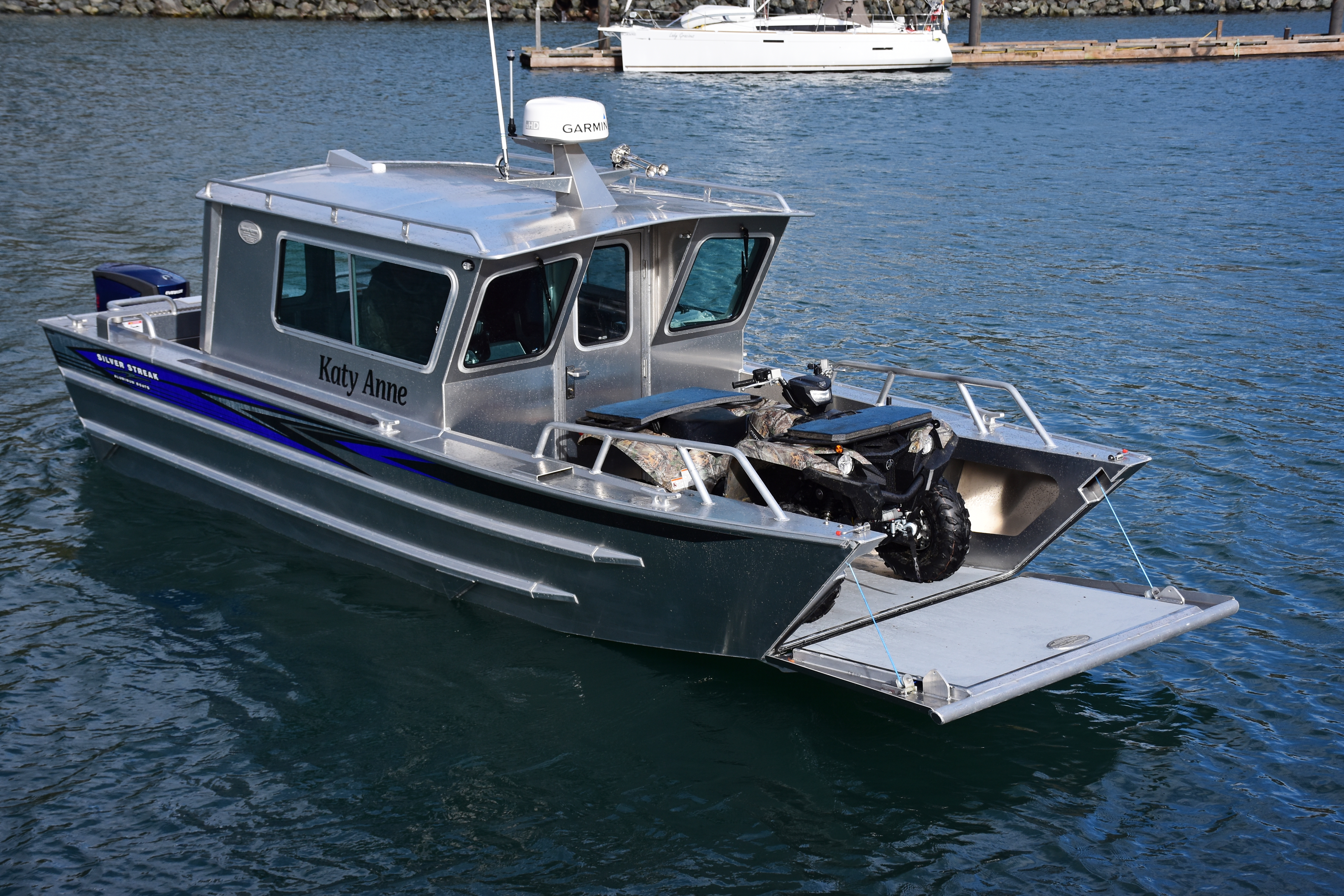

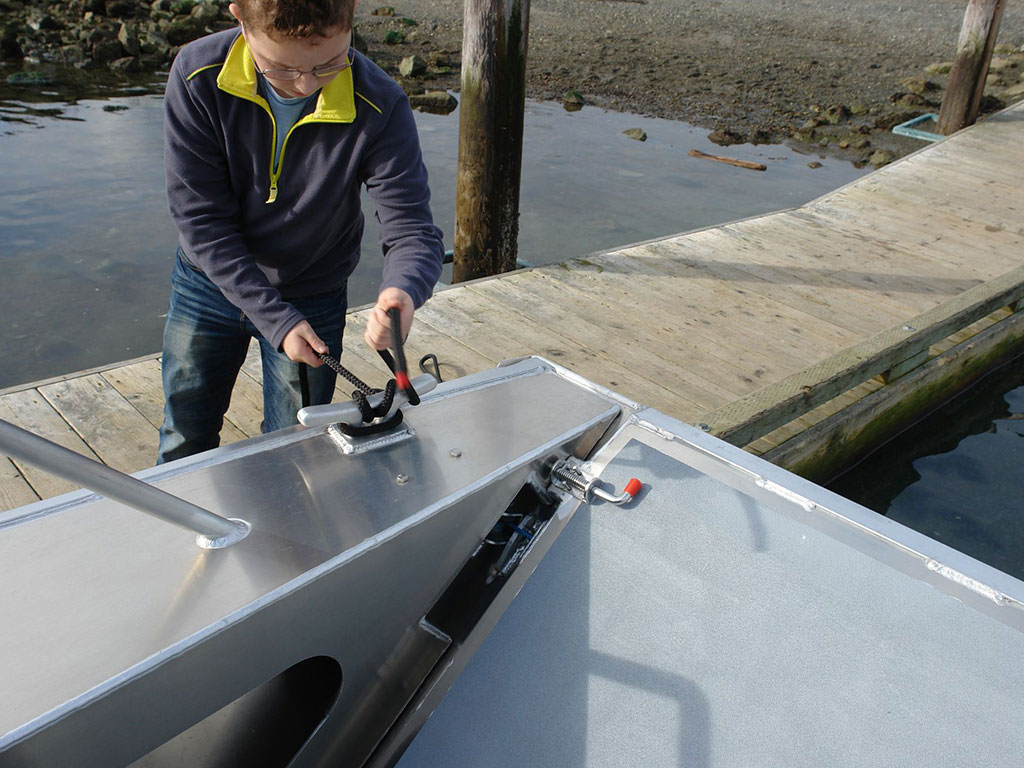

  • 1 x Drop down bow door (5′-11″ width) with electric winch, double pulley system, safety lock & gasket
  • 1 x Electric trim tab set (18’W x 12″L)
  • 2 x Electric wipers – heavy duty wipers with self park & switch

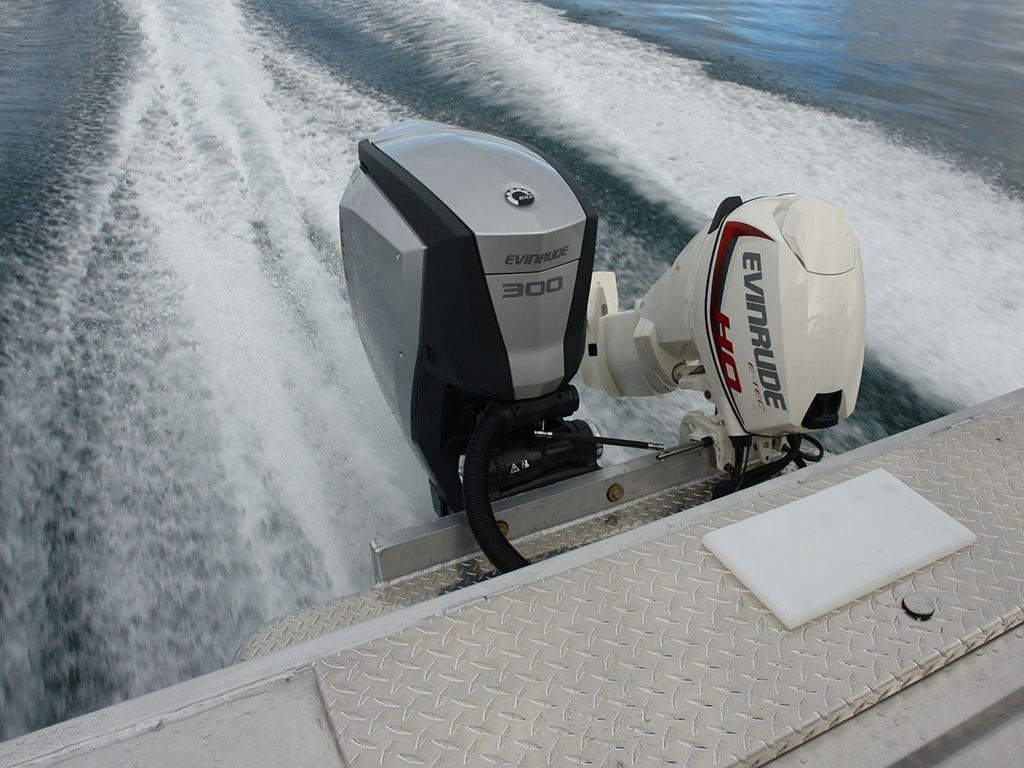

  • 1 x External motor bracket for twin 30″ engines with auxiliary mount and full-width transom
  • 1 x Fish box in rear gunnel with cutting board
  • 1 x Flotation – closed cell polyurethane spray foam under decks & gunnels
  • 2 x Foot rests on forward bulkhead (fixed/welded)
  • 1 x *Fuel tank (85 Imp Gal/102 US Gal) w/ fuel gauge – built in under deck
  • 1 x Fully welded aluminum self-bailing cockpit deck with inspection hatches for fuel connections & wire ways
  • 1 x Glove box
  • 1 x Heavy duty custom hull graphic
  • 1 x Horn – twin compact (stainless steel)
  • 1 x Keel guard on hull bottom (beaching wear strip)
  • 1 x Navigation light(s) (LED)
  • 1 x Non-skid paint on aluminum deck
  • 1 x Radar post with antenna wings
  • 1 x Seat slide (helm)
  • 2 x Side stiffeners (per side)
  • 1 x Side storage trays in cabin & cockpit
  • 1 x Steering for twin engine, single station – hydraulic

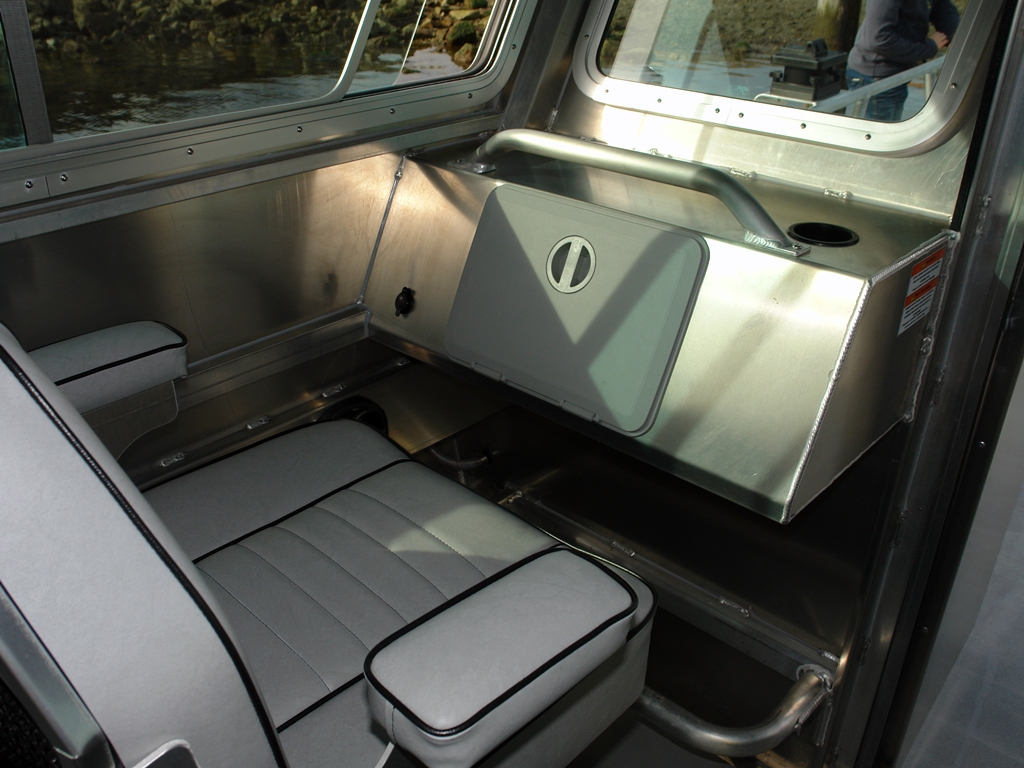

  • 2 x Storage bench seats (vented) with vinyl upholstery & backrests
  • 1 x Tie-down anchor points (x4) on forward deck for securing load
  • 1 x Under deck storage compartment in cockpit deck
  • 1 x Under deck large storage compartment with hinged door in cabin

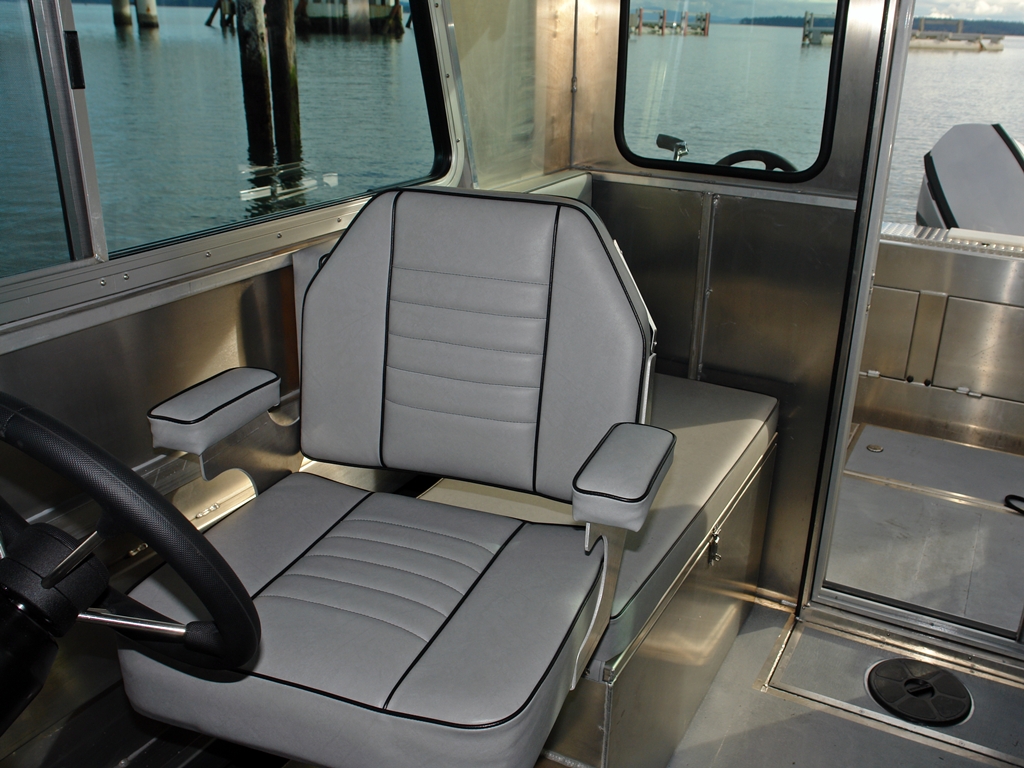

  • 2 x Swivel Seats – Barry Marine vinyl upholstered (LG) on shock absorbing Back Saver pedestals
  • 3 x Welded bow and transom eyes with stainless steel inserts

25′ Landing Craft Cabin – San Juan Standard Specification

Capacity (People): 6

Horsepower Minimum: 225 Twin

Bow Door Width: 5'-11"

Cabin Size: 84" x 91" x 80"

Beam: 9'-5"

Freeboard: 44"

Dead Rise: 16°

Bottom Width: 8'-0"

Hull Weight: 2,750 lbs

Bottom Plate: 1/4" 5086

Side Plate: 3/16" 5086

Fuel Tank: 85 Imp GAL

Tow Weight: 5,700 lbs

Forward Deck Size: 106 9/16" x 71"

Aft Deck Size: 63 3/8" x 88 5/8"

Make It Yours - Available Customization Options

Cabin
Aluminum folding steps

(2) Folding steps to access cabin top

Cabin extension

1' to 3' cabin extensions with glass & upholstery

Cabin top brackets

Cabin top brackets for traps/kayaks

Cabin top extension

Addition of an 18" overhang extension

Windows And Doors
Heavy duty aluminum-framed window
Fly screen

Fly screen for sliding windows (both sides)

Solar film on front windows
Side entry door
Transom exit door
Electrical
Horn (stainless steel) options

Stainless steel single, twin or trumpet horn installation/upgrades available

Lighting
Cockpit lighting

LED light in welded housing

Transom light

Small flush mount (LED) light installed on transom

Docking lights

x2 LED docking lights

Spotlight and mount
Paint And Finish
Bottom paint

Trilux II bottom paint available on all models

Clear coat protection

Sharkhide clear coat will help keep the sheen of your boat and protect the hull

Boat name decal

Available on sides (2) of all boat models. Also available: boat name and place decal on transom

Zolatone paint with clear coat

Zolatone paint on the interior and/or exterior of cabin, soft top & cockpits. Available on all boat models.

Deck Washdown
Deck wash down pump

Hose and sprayer conveniently located in side gunnel

Safety
Boat hook

Telescopic 8'-0 boat hook

Fire extinguisher

Various makes and models available

First aid kit
Life jacket

Various sizes and models available

Life ring and holder

30" life ring with 50' line & holder

Small vessel safety kit
Flares

Additional safety option

Throw line
Cabin
Closet

Closet with a welded aluminum door

Cabin vent

For galley options

Galley
Galley

Galley with powder-coated aluminum cabinet with cupboards, drawers, shelf, counter-top & side table. compact or regular sized galleys available

Bus heater

Available with defroster and fan(s)

Cook top stove

Alcohol or diesel stoves available

Refrigerator

Various models and sizes available

Sinks

Manual and electric options available

Galley package

Galley package - powder-coated aluminum cabinet with drawers, DC refrigerator, sink, diesel cook top stove, electric tap set & 9 Gal holding tank

Settee
Settee

2 or 4-person settee, with drop down table, storage cupboards & vinyl upholstered seating including backrest cushions

Table

Table on single pedestal with flush pedestal socket (or removable quick release option also available)

Settee upgrade

Settee upgrades available:
- extend dinette width for double bunk.
- reversible backrest on forward dinette seat.

Headliner
Headliner velour

Cabin top velour headliner

Insulated & panelled headliner
Head And Shower
Hot water holding tank

10 GAL with 3-way valve, deck clean-out and mascerator pump *required in US only

Curtains in head

Canvas privacy curtain in marine head

Marine head

Electric or manual options available

Head compartment

Stand-up head compartment with exterior vent, door & latch

Head options

Available options:
- Shelf in head compartment
- Shower head - hot /cold flush with drain sump including pump
- Sink in head - electric or manual taps including pump

Hot water

6 GAL hot water tank for domestic hot water

Non-skid paint in head

Add security to the flooring with textured paint

Porta potty

Compact manual toilet

Heaters
Diesel tank storage box

Storage box below aft helm (aluminum) for diesel tank. Also available as a storage box/foot rest with lid in front of helm seat for bus heater

Hydronic heater/hot water - diesel hydronic coolant heater

Hydronic heater/hot water with (2) blowers and diesel tank

Diesel heater

Various diesel heater options available

Electrical
12 V Power socket

Includes USB port and LED light

Breaker panel upgrade

Added options and/or upgrades available

Electric fan

For cabin interior

Lighting
Red & white dome style light in cabin, vee berth or head

Day and night lighting

Passage way lights - low level LED's

Available on models with enclosed cabins

Seating
Armrests
Jump seat

Side mount jump seat

Seat slide
Grammer suspension helm seat

Suspension helm seat with high back, arm rests & swivel

Electronics
Garmin GPSMap

Different models to choose from

Compass

Ritchie dash mount compass

VHF radio

Various models available, both handheld and fixed-mount.

Garmin radar

Placed on roof top radar post

Garmin map chip

Available for various locations

Horn (stainless steel) options

Stainless steel single, twin or trumpet horn installation/upgrades available

Additional speakers

Additional speakers in cockpit or cabin

Stereo and speakers
Batteries
Battery monitor
Lighting
Docking lights

x2 LED docking lights

Spotlight and mount
Breaker Panel
Breaker panel upgrade

Added options and/or upgrades available

Safety
Flares

Additional safety option

Downriggers
Downrigger cannon ball holders

Made by Scotty Plastics

Scotty accessories

Available options:
- electric receptacles
- powerlock rod holder
- swivel mount

Scotty downrigger

Scotty depthpower 30" or 60", includes swivel, cannonball holders & plug wiring

Crab Pot Pullers
Crab pot puller

Ace Line Hauler crab pot puller (100 lb), mounted with power plug, or supply only

Rob And Net Holders
Net holder - welded
Rod holder - 2 sets of 3 welded holders bolted to cabin top sides

Upgrade to powder-coated to match

Rod storage
Rod holders - welded (bolted) to awning/arch
Steering
Auxiliary motor steering

Hydraulic steering with diverter valves on second station console

Steering upgrades

Available steering options:
- Tilt steering- upgrade
- Flush mount kit for rear steering station

Dual engine

Available options:
-dual engine, single station
-dual engine, dual station

Dual station

Available options:
- single engine, dual station
- dual engine, dual station

Dual station steering console

Console comes with open storage bin & cup holder(s)

Dashboard Electrical
12 V Power socket

Includes USB port and LED light

Bilge blower

Provides efficient ventilation for bilges, engine compartments, galleys and heads

Propellers
Propellor guard

Available in stainless steel or aluminum

Propellor

Stainless steel and aluminum models available

Bow Thrusters
Vetus bow thruster

Propulsion device mounted to the bow for increased maneuverability

Seating
Grammer suspension helm seat

Suspension helm seat with high back, arm rests & swivel

Anchors
Anchor

Windlass or non-Windlass anchors available in various sizes, from light to heavy duty

Anchor roller - upgrade

Various sizes and options available

Cleats
Aluminum welded cleat

Cleats available in 8" and 9" sizes

Flush mounted cleat

Cleat - flush mount (tie-down)

Fenders
Polyform fender
Shore Power
A/C Receptacles

Additional A/C receptacles

Galvanic isolator
Shore power package

Shore power with 50 ft. 30A cord, AC panel & 110V receptacle

Battery charger

Dual bank waterproof onboard charger

Lighting
Docking lights

x2 LED docking lights

Spotlight and mount
Docking
Samson dock lines
Deck
Side steps

Available options:
- 2 fixed/welded to rod tray (side gunnel)
- removable on rod tray (side gunnel)

Lifting eyes

Lifting eyes (3 point: 1 bow, 2 stern)

Grab Rails
Handrails

Available options:
-Overhead grab rails in cabin
-Handrails on bow
-Handrails on cabin top
-3`-0`` handrails
-Handrails on cuddy

Transom handrails

Handrails on transom, with downrigger mounts & cup holders

Bow rails

Various sizes and configurations available

Ladders
Swim ladder

Folding swim ladder with grab handle on transom

Ladder

Available options:
- Heavy duty stern mounted dive ladder (open rung)
- Stainless steel telescoping under transom 3 rung (cable steering option)
- Powder coated

Cabin top ladder

Ladder to cabin top

Tow Posts
Tow post

A number of options are available, including light to heavy duty and welded/fixed or removable.

Radar Arches
Radar post

Radar post with antenna wings, available in large or small sizes

Radar arch

Radar arch on cabin top with mounting plates for electronics
Available options:
- removable radar arch
- powder coated radar arch

Bilge Pumps
Automatic bilge pump upgrade

Upgrades available in 1250 GPH, 1500 GPH, 2000 GPH

Bilge blower

Provides efficient ventilation for bilges, engine compartments, galleys and heads

Fuel Tank
Fuel tank (standard) increase size/per GAL
Hull
Hull keel guard

Beaching wear strip on hull bottom

Transom exit door
External motor bracket - upgrade

Includes auxiliary motor mount and twin engine fuel upgrade (filter, vents, pick up)

Trailers
Trailer

Highliner and Roadrunner trailers available for all boats:
- Single axle
- Dual axle
- Galvanized
- With and without drum brakes
- 800lb to 10,000lb capacity

Browse Features

Browse Features

Find out more about available features. Use our interactive features tool to customize your Silver Streak Boat.

Learn More
Find A Dealer

Find A Dealer

See something you like? Want more information on Silver Streak Aluminum Boats? Find a dealer near you for more information.

Learn More

Why Silver Streak Boats?

Aluminum boats require a lot less maintenance than fiberglass boats. Aluminum is more durable, longer lasting, and easier to maintain. All our boats are available with a selection of bottom paint options to meet your specific boating needs.

Andy Barry - Owner of Silver Streak Boats has been building a reputation for building the finest aluminum boats on the west coast since 1987. Find out for yourself why our aluminum boats are among the most sought after, both new, and used.

All Welded Aluminum Boats means there are no rivets or other seals or connections that weaken overtime, create leaks, and will eventually fail. Welded aluminum boats are among some of the toughest boats out there. Probably why they have become a staple of the west coast.

Our aluminum boats require very little ongoing maintenance. No carpets to maintain, no wood to replace and clean. High quality electrical connections mean minimal effort to maintain. Outboard motors mean a simple "end of life" switch, and protect your investment.

Client Testimonials

Dear Mr. Barry and your Silver Streak crew

Jordy and I had been looking for an aluminum boat for about a year. You name it we inspected it. Each one had its plusses but nothing stood out in our minds. Then, on the advice of Jordy’s co-worker we went to see a Silver Streak and in less than a heart beat we both knew our search had ended. I don’t know that I’ve ever made a decision that quickly about anything but everything about your boat spelled superior quality and design. It was beyond awesome.

But that was just the start of a very pleasure full experience with yourself and every member of your crew we came into contact with during the build. What a fine group of people you have surrounded yourself and Silver Streak with Andy. From start to finish there was nothing but good vibes for us in a world that doesn’t always work that way. It is for this reason that the Badwich family have put together our thank you card. Thank you for The Badwich, a boat we can proudly own for years to come.

Sincerely,

The Badwich family

The B family!

Location: Vancouver Island, BC

Let’s Talk Boat!

Have questions? Looking for a Quote?

Complete this form and we will connect you with a Dealer:

  • This field is for validation purposes and should be left unchanged.

Watch The Video
