20′ Landing Craft Centre Console – Pioneer All Welded Aluminum Boat

About This Boat

The Landing Craft Centre Console is an ideal boat for those looking to bring their ATV to remote areas, or for anyone with water access property. Built with a high bow door and vee bottom, these boats will go where any other model of boat will go....and then some!

This Boat Is Ideal For ...

Budget

Crabbing

Exploring

Family Time

Fishing

Fresh Water

Hunting

Lake

Multipurpose

Ocean

Prawning

Got Questions? Get Answers

Standard Features List

1 x Welded aluminum stand-up console with windshield, shelf and door
1 x 12 V power socket with USB port & LED light
1 x 6-way fused switch panel on dashboard
4 x 9″ welded aluminum cleats
1 x Battery – Dual SRM 24 batteries including wiring, 4-way selector switch, breaker & boxes
1 x Bilge pump – 1600 GPH pump – automatic on/off
1 x Brackets for transducer & sacrificial anode
1 x Chines & gunnels fully welded
1 x Closing storage in transom (locking battery compartment)
3 x Drain plugs
1 x Dropdown bow door (4’10” W, ramp) with reinforced gasket, hidden double pulley system port and starboard, with SS manual winch, teflon rollers, Amstel Kevlar rope, and 2 SS heavy duty barrel bolt spring-loaded latches.
1 x Electric trim tab set (12″W x 12″L)

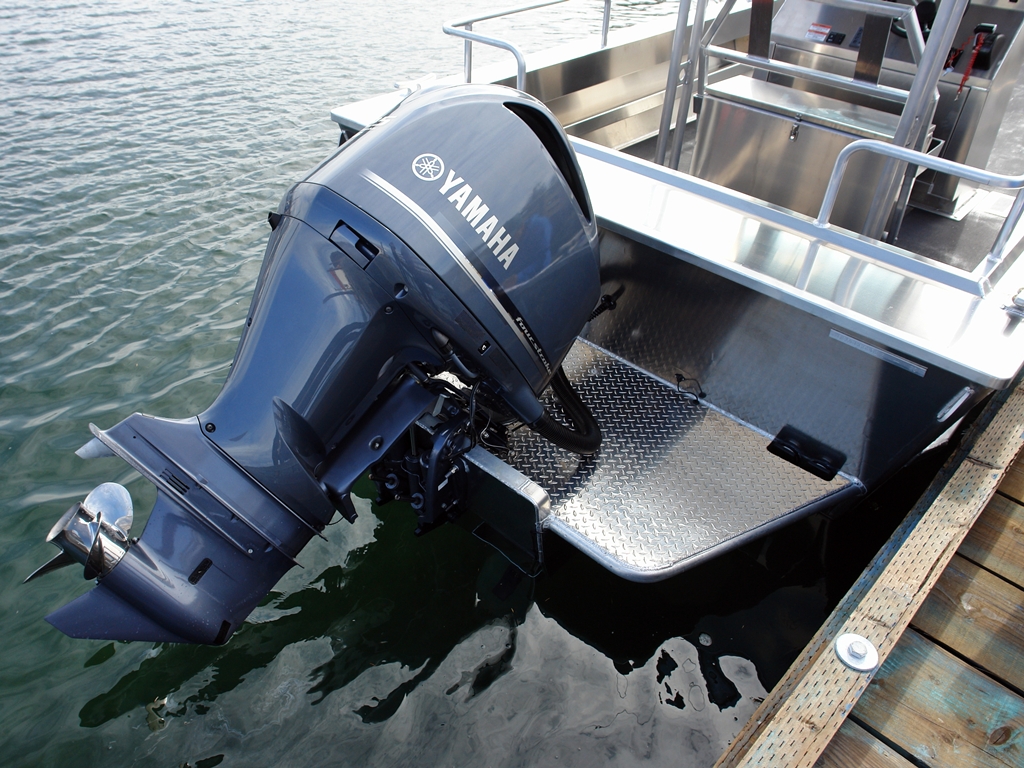

1 x External motor bracket for single 25″ engine with auxiliary mount and full width platform
1 x Fish box in rear gunnel with cutting board
1 x Flotation – closed cell polyurethane spray foam under decks & gunnels
1 x Fuel tank (45 Imp Gal/204 L/54 US Gal) w/ fuel gauge – built in under deck
1 x Fully welded self-bailing aluminum cockpit deck with inspection hatches for fuel connections and wire ways
1 x Heavy duty custom hull graphic
1 x Horn – twin compact (stainless steel)
1 x Keel guard on hull bottom (beaching wear strip)
1 x Navigation lights (LED)
1 x Non-skid paint on aluminum deck
1 x Side stiffener (per side)
1 x Side storage trays – full length
1 x Steering for single engine, single station – hydraulic
1 x Storage bench seat (vented) with backrest, footrest & vinyl upholstery
1 x Tie-down anchor points (x4) on forward deck for securing load
1 x Under deck storage compartment in cockpit deck
3 x Welded bow & transom eyes with stainless steel inserts
1 x Wide walk-around gunnels

20′ Landing Craft Centre Console – Pioneer Standard Specification

Capacity (People): 5

Horsepower Range: 150-300

Bow Door Width: 4'-10"

Beam: 8'-5"

Freeboard: 35"

Dead Rise: 16°

Bottom Width: 7'-0"

Hull Weight: 1,800 lbs

Bottom Plate: 1/4" 5086

Side Plate: 3/16" 5086

Fuel Tank: 45 Imp GAL

Tow Weight: 3,600 lbs

Forward Deck Size: 87 15/16" x 83 3/8"

Aft Deck Size: 40 3/8" x 83 3/8"

Make It Yours - Available Customization Options

Exterior
Interior
Nav & Electronics
Fishing
Power
Docking
Technical
Delivery

Windows And Doors
Heavy duty aluminum-framed window
Wiper options	Various options and upgrades include: heavy duty wiper with self-parking and switch, manual wipers, windshield washer system, and pantographic wipers.
Solar film on front windows
Transom exit door

Canvas
Bimini top	Bimini top for console

Electrical
Horn (stainless steel) options	Stainless steel single, twin or trumpet horn installation/upgrades available

Lighting
Cockpit lighting	LED light in welded housing
Docking lights	x2 LED docking lights
Spotlight and mount
Transom light	Small flush mount (LED) light installed on transom

Paint And Finish
Bottom paint	Trilux II bottom paint available on all models
Clear coat protection	Sharkhide clear coat will help keep the sheen of your boat and protect the hull
Boat name decal	Available on sides (2) of all boat models. Also available: boat name and place decal on transom
Zolatone paint with clear coat	Zolatone paint on the interior and/or exterior of cabin, soft top & cockpits. Available on all boat models.

Deck Washdown
Deck wash down pump	Hose and sprayer conveniently located in side gunnel

Safety
Boat hook	Telescopic 8'-0 boat hook
Fire extinguisher	Various makes and models available
First aid kit
Life jacket	Various sizes and models available
Small vessel safety kit
Throw line

Electrical
Breaker panel upgrade	Added options and/or upgrades available
12 V Power socket	Includes USB port and LED light
Electric fan	For cabin interior
Wiper options	Various options and upgrades include: heavy duty wiper with self-parking and switch, manual wipers, windshield washer system, and pantographic wipers.

Lighting
Passage way lights - low level LED's	Available on models with enclosed cabins
Red & white dome style light in cabin, vee berth or head	Day and night lighting

Paint And Finish
Zolatone paint with clear coat	Zolatone paint on the interior and/or exterior of cabin, soft top & cockpits. Available on all boat models.

Seating
Armrests
Jump seat	Side mount jump seat
Seat slide
Bench seat cushion & backrests	Upgrade your boat to have some extra seating
Storage bench seat	Storage bench seat with or without upholstery

Electronics
Garmin echoMAP	Various Garmin echoMAP options available
Compass	Ritchie dash mount compass
VHF radio	Various models available, both handheld and fixed-mount.
Garmin map chip	Available for various locations
Garmin radar	Placed on roof top radar post
Horn (stainless steel) options	Stainless steel single, twin or trumpet horn installation/upgrades available
Stereo and speakers
Garmin GPSMap	Different models to choose from

Lighting
Docking lights	x2 LED docking lights
Spotlight and mount

Breaker Panel
Breaker panel upgrade	Added options and/or upgrades available

Safety
Flares	Additional safety option
Horn (stainless steel) options	Stainless steel single, twin or trumpet horn installation/upgrades available
VHF radio	Various models available, both handheld and fixed-mount.

Downriggers
Downrigger cannon ball holders	Made by Scotty Plastics
Scotty accessories	Available options: - electric receptacles - powerlock rod holder - swivel mount
Scotty downrigger	Scotty depthpower 30" or 60", includes swivel, cannonball holders & plug wiring
Downrigger bracket pad mount	All aluminum, welded to top of gunnels

Crab Pot Pullers
Crab pot puller	Ace Line Hauler crab pot puller (100 lb), mounted with power plug, or supply only

Rob And Net Holders
Net holder - welded
Rod holders welded on bow railings
Rod holder - 2 sets of 3 welded holders bolted to cabin top sides	Upgrade to powder-coated to match
Rod storage

Steering
Auxiliary motor steering	Hydraulic steering with diverter valves on second station console
Steering upgrades	Available steering options: - Tilt steering- upgrade - Flush mount kit for rear steering station
Dual station	Available options: - single engine, dual station - dual engine, dual station
Dual station steering console	Console comes with open storage bin & cup holder(s)

Aux Motors
Transom platform	Full width transom platform with integrated auxiliary mount

Trim Tabs
Trim tabs

Propellers
Propellor guard	Available in stainless steel or aluminum
Propellor	Stainless steel and aluminum models available

Anchors
Anchor roller - upgrade	Various sizes and options available
Anchor	Windlass or non-Windlass anchors available in various sizes, from light to heavy duty

Cleats
Aluminum welded cleat	Cleats available in 8" and 9" sizes
Flush mounted cleat	Cleat - flush mount (tie-down)

Fenders
Polyform fender

Lighting
Docking lights	x2 LED docking lights
Spotlight and mount

Docking
Samson dock lines

Deck
Hatch in forward deck	Self draining hatch in forward deck, for Landing Craft models
Side steps	Available options: - 2 fixed/welded to rod tray (side gunnel) - removable on rod tray (side gunnel)
Flushmount tie downs	(4) Flushmount tie downs welded to deck

Grab Rails
Transom handrails	Handrails on transom, with downrigger mounts & cup holders
Bow rails	Various sizes and configurations available

Ladders
Swim ladder	Folding swim ladder with grab handle on transom
Ladder	Available options: - Heavy duty stern mounted dive ladder (open rung) - Stainless steel telescoping under transom 3 rung (cable steering option) - Powder coated

Tow Posts
Tow post	A number of options are available, including light to heavy duty and welded/fixed or removable.

Radar Arches
Radar post	Radar post with antenna wings, available in large or small sizes

Bilge Pumps
Automatic bilge pump upgrade	Upgrades available in 1250 GPH, 1500 GPH, 2000 GPH

Fuel Tank
Fuel tank (standard) increase size/per GAL

Hull
Hull keel guard	Beaching wear strip on hull bottom
Transom exit door

Delivery
Delivery	Delivery available across the United States and Canada. Speak to your dealer for more information.

Licensing
Pleasure craft license	Pleasure craft license. Includes (2) number decals. Canada ONLY.

Trailers
Trailer	Highliner and Roadrunner trailers available for all boats: - Single axle - Dual axle - Galvanized - With and without drum brakes - 800lb to 10,000lb capacity
